BW Technologies IntelliDoX Docking Station for BW Clip4

BW Technologies IntelliDoX Docking Station for BW Clip4

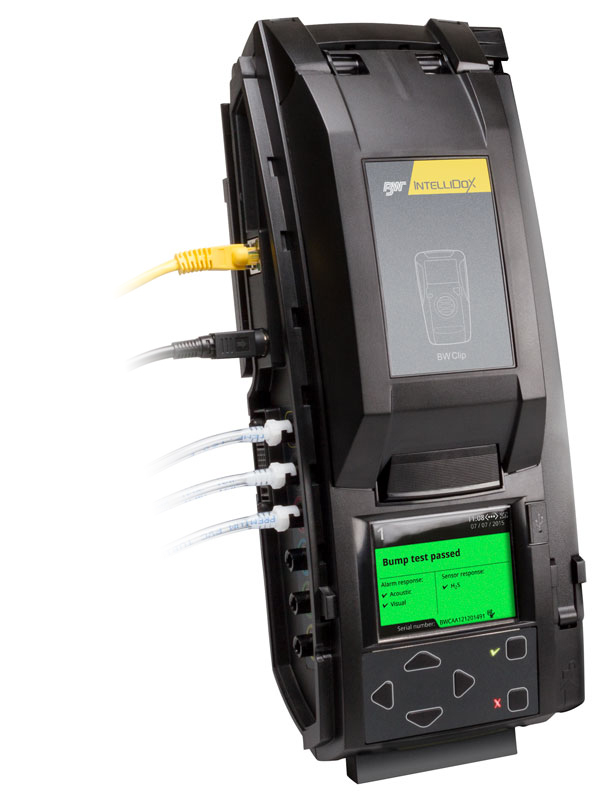

DX-BWC4 IntelliDoX Docking Station for BW Clip4 by BW Technologies

IntelliDoX is a high tech way to combine your Fleet Manager II software with docking modules. It's as easy as connecting the gas monitor to the docking module. The IntelliDoX does all the testing for you and transfers the data from the unit to the IntelliDoX . With this form of automatic management, you increase productivity, efficiency, and reliability. In addition, the entire unit only weighs a little over four pounds.

Do your workers have to wait in line for bump tests at the start of each shift? This is no longer needed when you have the IntelliDoX system in place. It takes under 30 seconds to bump test 5 units at one time.

Do you have a great deal of monitors to keep up with? You can gang together as many as five IntelliDoX to manage a large fleet of gas detectors at the same time. Five units can bump test as many as 50 detectors in less than three minutes. And each module can work on its own.

The IntelliDoX can work by itself or can be networked with an Ethernet connection. Keeping track of records has never been easier. For example, you will enjoy quick and easy access to peak exposures, bump test results, and other important detection data.

Fast bump only takes 10 seconds. Standard bump is 40 seconds, and it can be placed in hibernation mode. The IntelliDoX comes with a complete 2 year warranty.


When you use your IntelliDoX with Fleet Manager II you can configure these settings for your gas detectors

  • Peak reading display
  • Time of peak reading
  • High alarm set point
  • Low alarm set point
  • Alarm with gas readings
  • Clock
  • Bump test reminder
  • Noncompliance indication
  • Engage hibernation mode

Your IntelliDoX Comes with:

  • Wall mount also works as a stand and is retractable
  • Ethernet port
  • USB port
  • Guide for quick reference
  • Manual with CD
  • IntelliDoX module nest for portable gas detector has been installed at the factory.
  • Software CD Fleet Manager II

You will need to purchase an enabler kit for every five units banked together. The kit comes with power supply and hoses.

Part Number: DX-BWC4

Size 5.4 x 14.2 x 4.3 in. / 13.8 x 36.2 x 10.9 cm (per docking module)
Weight 4.2 lbs. / 1.91 kg
Power Supply 12 V / 8.33A ITE
External interface 1 USB port, 1 ethernet port
Pump Flow rate: 350 ml/min (independent pump in each module)
Automatic tests FastBump: 10 seconds
Standard bump: 40 seconds
LCD Display Color Coding Yellow "TEST", Green "PASS", Red "FAIL"
Certifi cations and approvals Certicate of Compliance; CSA/UL 61010-1 (3rd Ed)
EC Declaration of Conformity; EMC Directive & Low Voltage Directive
Warranty Full two year warranty
