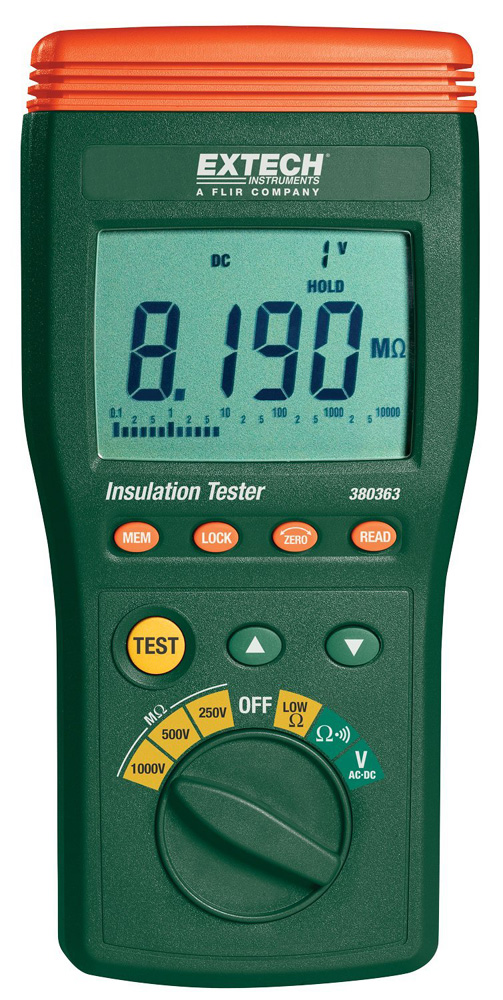

Extech 380363 Digital High Voltage Insulation Tester
Item #:
EXT-380363
Brand:
Extech
Share this product:
380363 Digital High Voltage Insulation Tester by Extech
Features
- 250V, 500V and 1000V test voltages
- Measure Insulation Resistance to 10G
- Large LCD display with analog bargraph
- Lo ohms function for testing connections
- Automatic discharge of capacitive voltage charges
- AC/DC voltage measurement up to 999V
- Auto power off
- Manual data record and read function (9 sets)
- Live circuit display warning and beeper
- Complete with carrying case, test leads, and 6 x AA batteries
| Display | 3-3/4 digit (4000 count) LCD |
| Sampling rate | 1 reading per second |
| Test ranges | Resistance: 4MΩ, 40MΩ, 400MΩ, 4000MΩ, 10GΩ Test Voltages: 250V, 500V, 1000V |
| AC/DC Voltage range | 999V |
| Resistance range | 9999Ω |
| Lo Resistance range | 40Ω |
| Over range indicator | 'OL' displayed when measurement exceeds range |
| Zero adjust | Automatic |
| Memory | Nine (9) data records |
| Low battery indicator | 'BT' symbol displayed when battery voltage is low |
| Power source | Six (6) 1.5 'AA' batteries |
| Power consumption | 20 to 95mA (depending upon function) |
| Fuse protection | 0.5A / 600V fast blow fuse |
| Operating conditions | 0 to 50°C (32 to 122°F); 80% RH |
| Dimensions | 235 x 116 x 54mm (9.3 x 4.6 x 2.1") |
| Weight | 520g (1.15 lbs) |
| Safety ratings | Pollution degree 2; indoor use; CE marked; Meets IEC 61010-1 and IEC 61557 standards |
| Category Rating | CAT III-1000V |
