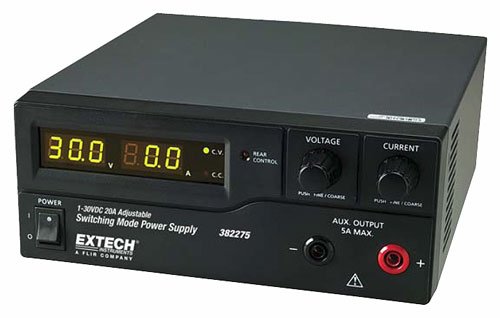

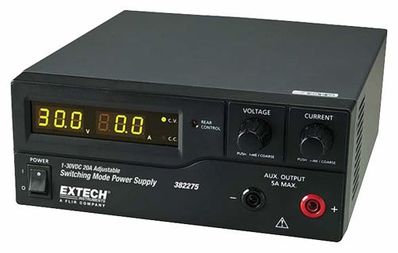

Extech 382276 600W Switching Mode DC Power Supply (230V)
Item #:
EXT-382276
Brand:
Extech
Share this product:
382276 600W Switching Mode DC Power Supply (230V) by Extech
Features
- 0 to 30V, 20A adjustable output switching mode power supply
- Remote Control for output Voltage/Current and On/Off
- Two user-defined Voltage and Current presets and one 13.8V/20A factory preset
- Automatic Constant Current and Constant Voltage crossover
- Dual 3-Digit LED displays
- High RFI immunity and excellent EMI
- Thermostatic Control Fan from zero to full speed
- Over voltage, over-temperature, and short circuit protection
- Low profile and small footprint
- Complete with power cord
| Input Voltage | 100 to 120VAC 50/60Hz(Model 382275) 210 to 230VAC 50/60Hz(Model 382276 |
| Rated Load Input Current | 3.1A Model 382276) 5.9A (Model 382275) |
| Efficiency | 87% at optimal load |
| Switching Frequency | 75 to 95 KHz |
| Cooling Method | Thermostatic Control Fan from Zero to full speed |
| Protections | Overload, Short Circuit by Constant Current,Output Tracking, Over Voltage, Over Temperature |
| Transient Response Time | 1.5ms(50‐100% of load) |
| Power Factor Control | >0.95 at optimal load |
| Special Features | Three (3) user defined presets and Remote Control |
| Operating Humidity Range | 10 to 80%RH |
| Altitude | 2000 meters (7000 Feet) |
| Pollution Degree | 2 |
| Main Supply Voltage Fluctuation | ±10% of the nominal voltage |
| Dimensions(WxHxD) | 200 x90 x215mm(7.9 x 3.5 x 8.5") |
| Weight | 2.6 kg (5.7 lbs) |
| Approvals | CE EMC: EN 55011, 55022 LVD: EN 60950, 61010 |
| Rear Output | Variable Output Voltage | 1 to 30VDC |
| Variable Output Current | 1 to 20A | |
| Voltage Regulation | Load (10 to 100% Load) | 50mV |
| Line (170 to 264VAC | 20mV | |
| Current Regulation | Load (90 to 10% Rated Voltage) | 100mA |
| Line (170 to 264VAC Variation) | 50mA | |
| Ripple & Noise (peak‐peak) Voltage | 50mV | |
| Current Ripple & Noise (rms) | 30mA | |
| Front Output | Variable Output Voltage | 1 to 30VDC |
| Variable Output Current | 1 to 5A | |
| Voltage Regulation | Load (10 to 100% Load) | 350mV |
| Line (170 to 264VAC) | 20mV | |
| Current Regulation | Load (90 to 10% Rated Voltage) | 100mA |
| Line (170 to 264VAC Variation) | 50mA | |
| Ripple & Noise (peak‐peak) Voltage | 50mV | |
| Current Ripple & Noise (rms) | 30mA | |
| Meter Accuracy | Voltage Meter | ±(0.2% +3 digits) |
| Current Meter | ±(0.2% +3 digits) | |
| Tracking Over Voltage Protection | 1 to 5V | Default Value is +2V |
| 5 to 20V | Default Value is+3V | |
| 20 to 30V | Default Value is +4V |
