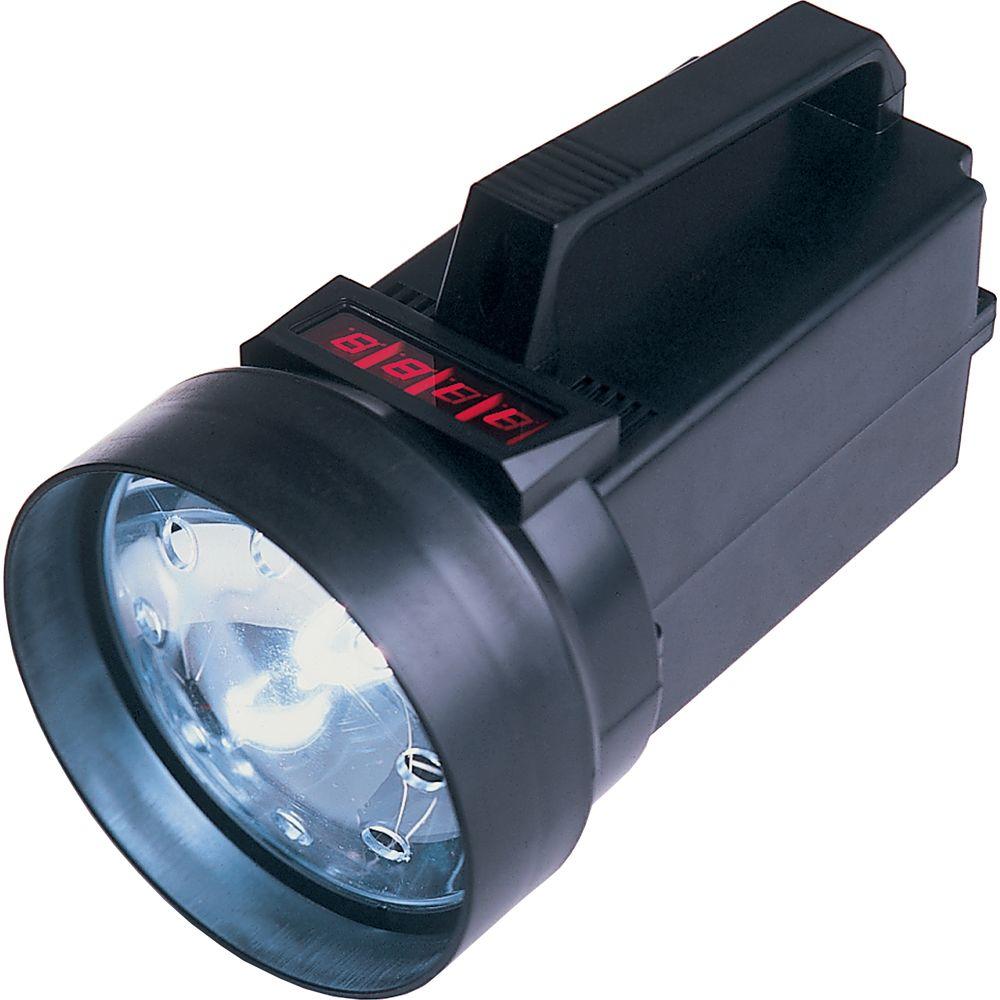

Extech 461830 Digital StroboTach 115VAC, 60Hz

Item #:
EXT-461830
Brand:
Extech
Extech 461830 Digital StroboTach 115VAC, 60Hz
$259.99
Qty

Discontinued

Send This Page to a Friend

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us
Share this product:
Extech 461830 Digital StroboTach 115VAC, 60Hz

Extech 461830 Digital StroboTach 115VAC, 60Hz

$259.99

Discontinued


461830 Digital StroboTach 115VAC, 60Hz by Extech

Features

  • Checks and analyzes motion and speed by simply aiming and synchronizing it’s flash rate (FPM) with a rotating object
  • Read RPMs on 4 digit LED display
  • Duty cycles from 5 to 30 minutes and 1second sampling time
  • Ideal for measuring the speed of moving gears, fans, pumps, motors and other equipment used in general maintenance, production, quality control or laboratories
  • High accuracy over a wide, dynamic range via exclusive microcomputer LSI circuit and crystal control time-base
  • Complete with 6 ft power cord, handle and can be tripod mounted.
General Specifications
Circuit Exclusive one-chip LSI circuit with crystal time base
Display 4-digit (10,000 count; 0 to 9999) LED display
Measurement unit RPM (revolutions or rotations per minute) is the speed of the moving device under test which equals the FPM rate (strobe flashes per minute)
Operating Temperature 32 to 122°F (0 to 50°C)
Operating Humidity < 80% RH
Power Supply 110VAC (461830) or 220VAC (461831) 50/60Hz ±10%
Power Consumption <25 watts @ 115V
Weight 2.2 lbs. (1kg)
Dimensions 8.3 x 4.8 x 4.8" (21 x 12 x 12cm)
Housing construction Impact resistant plastic with plastic lens and mirrored reflectors

Electrical Specifications
Measurement Range 100 to 10,000 RPM/FPM
Resolution 0.1 (<1000 RPM/FPM)
1 (1000 to 9999 RPM/FPM)
10 (10,000 RPM/FPM)
Accuracy ± (0.05% + 1 digits)
Sampling Time 1 second
Strobe Flash adjust range LOW: 100 to 1,000 RPM/FPM
HIGH: 1000 to 10,000 RPM/FPM
Strobe Flash tube type Xenon lamp
Strobe Flash duration 60 to 1000 microseconds
Strobe Flash Energy 4 Watt-Seconds (Joules)
Strobe Beam Angle 80°
Strobe Flash Color White 6500°K
