Extech CA250 400A AC/DC Clamp-on Adaptor + NCV
Item #:
EXT-CA250
Brand:
Extech
Share this product:

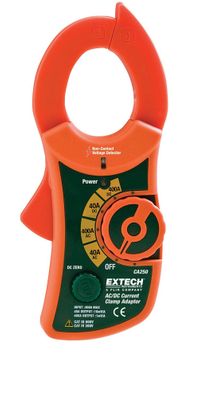

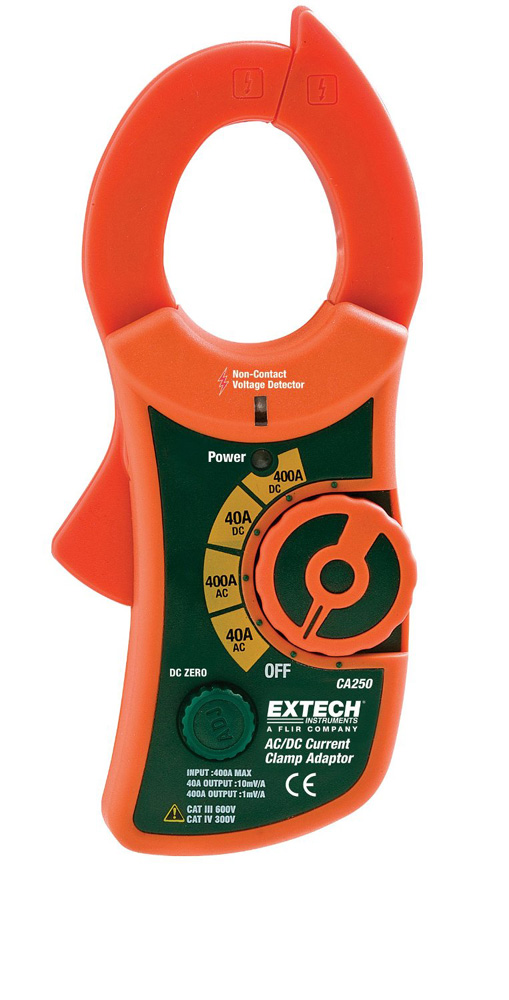

CA250 400A AC/DC Clamp-on Adaptor + NCV by Extech
Features
- Fits virtually any MultiMeter with standard shrouded banana plug sockets
- Built-in non-contact voltage detector with LED alert
- 1.2" (30mm) clamp jaw
- Measures AC/DC Current in two ranges: 0 to 40A (10mV per Amp output) and; 0 to 400A (1mV per Amp output)
- ±2.5% basic accuracy
- DC zero adjust
- Dims: 5.8 x 2.3 x 1.3" (146 x 60 x 32mm) Weight: 8oz (226g)
- Complete with built-in 3.8ft (1.1m) cable with banana plugs and two AAA batteries
| Measurement Ranges | 0 to 40 Amps AC/DC 0 to 400 Amps AC/DC |
| Adaptor Output | 10mV/Amp on the 0 to 40A range 1mV/Amp on the 0 to 400A range |
| Frequency range | 50/60Hz |
| Safety | EN61010-1 and IEC61010-1 2nd Edition (2001) to Category III 600V and Category IV 300V; Pollution Degree 2 in accordance with IEC 664 indoor use. |
| Accuracy | 0 to 40A ± (2.5% + 0.1A) 0 to 400A ± (2.8% + 0.5A) |
| Jaw size | 30mm (1.2") |
| Operating Conditions | 0 to 50°C (32 to 122°F) < 70% RH |
| Storage Conditions | -20 to 70°C (-4 to 158°F) < 80% RH |
| Battery | 2 – 1.5V "AAA" |
| Dimensions/Weight | 146 x 60 x 32mm (5.8 x 2.3 x 1.3"); 226g (8oz) |
