Extech EA20 EasyView Hygro-Thermometer

Item #:
EXT-EA20
Brand:
Extech
Extech EA20 EasyView Hygro-Thermometer
$239.99
Qty

Discontinued

Send This Page to a Friend

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us
Share this product:
Extech EA20 EasyView Hygro-Thermometer

Extech EA20 EasyView Hygro-Thermometer

$239.99

Discontinued

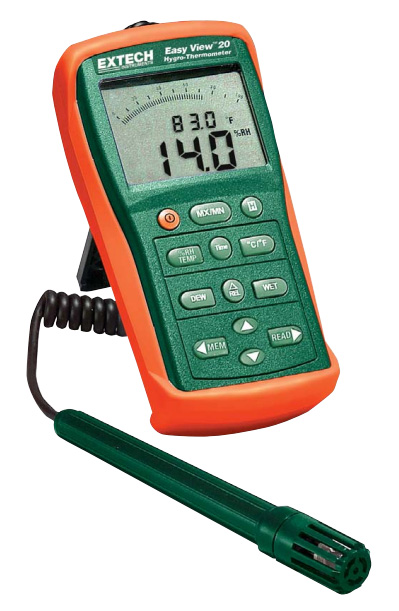

EA20 EasyView™ Hygro-Thermometer by Extech

Features

  • Compact and rugged design features large display and bargraph
  • Display any two parameters (Temperature and Humidity or Dew Point, or Wet Bulb) simultaneously
  • Min/Max function stores & recalls highest and lowest readings
  • Timer function displays the elapsed time (mins : secs and day : hour) to the minimum and maximum readings
  • Programmable auto power off time frame
  • Remote capacitance sensor with 39" (1m) coiled cable
  • Switchable °C/°F temperature units
  • Data Hold function freezes reading on display
  • Auto power off to save battery life
  • Low battery and overrange indication
  • Complete with built-in stand, protective holster, probe and 6 AAA batteries

Applications

  • Monitor Relative Humidity and Temperature in factories, clean rooms, offices, and greenhouses
  • Produce reports of overnight or long term humidity and temperature fluctuations
General Specifications
Display Multifunction LCD with bargraph and status indicators
Sensor Type Humidity: Precision capacitance sensor
Temperature: Thermistor
Response Time Humidity: 45% to 95% < 1 min; 95% to 45% < 3 min.
Temperature: Approx. 2 seconds for a 10°C change
Sampling Rate 2 times per second
Datalogging  Memory 99 sets
Operating Conditions 32 to 140°F (0 to 60°C); < 95% RH non‐condensing
Storage Conditions 14 to 140°F (‐10 to 60°C); <70% RH non‐condensing
Power Supply 6 x 1.5V 'AAA' batteries with programmable auto power off (1 minute to 59 minutes in 7 selectable times)
Battery Life Approx. 200 hours
Dimensions / Weight 5.9 x 2.8 x 1.4" (150 x 72 x 35mm); 8.3 oz. (235g)

Rnage Specifications
Function
Range and Resolution
Accuracy
Humidity
10.0 to 95.0% RH
±3% RH (at 25°C, 30 to 95% RH )
±5% RH (at 25°C, 10 to 30% RH )
Temperature
-4 to 140°F (‐20 to 60°C)
±1.8°F (±1°C)
Dew Point
-4 to 140°F (‐20 to 60°C)
calculated
Wet Bulb
-4 to 140°F (‐20 to 60°C)
calculated
