Extech EX520-S Industrial MultiMeter Test Kit

Item #:

EXT-EX520-S

Brand:

Extech

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us

Share this product:

Description

EX520-S Industrial MultiMeter Test Kit by Extech

Reliable and highly accurate even under the toughest operating conditions, the EX500 series CAT IV rated Digital MultiMeters are waterproof, drop proof to 6' and feature a rugged double-molded housing.

Features

Double molded for waterproof (IP67) protection
Rugged design - drop proof to 6 feet
High Resolution display: Model EX520-S with 6000 count LCD display; Model EX530-KIT with 40,000 count LCD display
1000V input protection on all functions
Dual sensitivity frequency functions
Large backlit LCD with bargraph
Duty Cycle function and Diode open circuit voltage of 2.8V DC
Auto power off with disable feature and Min/Max, Relative, and Data Hold functions
CE/UL approved; CAT IV-600V

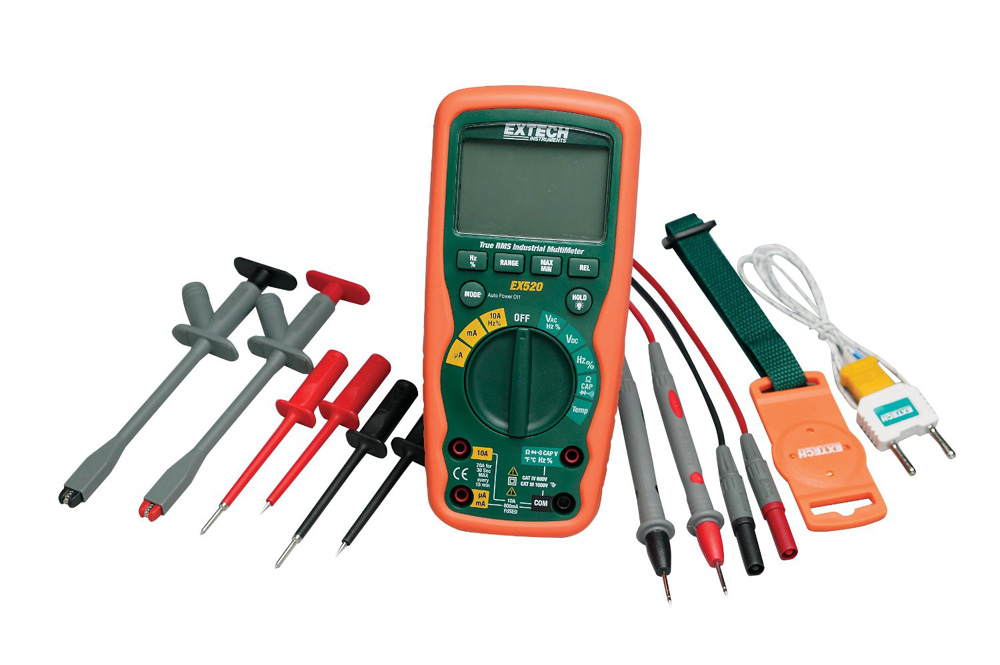

Kit Includes

Meter with double molded test leads
Magnetic hanging strap
Type K bead wire temperature probe
Carrying case
One 9V battery
A set of CAT III-100V Electrical Test Lead kit (TL810)

Specifications

	EX520-S	EX530-KIT
Display counts	6000	40000
Basic Accuracy (DCV)	0.09%	0.06%
DC Voltage	0.1mV to 1000V	0.01mV to 1000V
AC Voltage	1mV to 1000V	0.01mV to 1000V
Non-Contact AC Voltage	-	100V to 600V
DC/AC Current	0.1μA to 20A	0.01μA to 20A
Resistance	0.1Ω to 40MΩ	0.01Ω to 40MΩ
Frequency (electrical)	0.01 to 400Hz	0.01 to 400Hz
Frequency (electronic)	0.001Hz to 40MHz	0.001Hz to 100MHz
Capacitance	0.01nF to 1000μF	0.001nF to 40mF
Temperature (Type K)	-50 to 1382°F (-45 to 750°C)	-50 to 1382°F (-45 to 750°C)
4 to 20mA	-	0 to 125%
Duty Cycle	0.1 to 99.9%	0.1 to 99.90%
True RMS	Yes	Yes
Peak Hold	-	Yes
Diode	Yes	Yes
Continuity	Yes	Yes
Dimensions/Weight	7.25x3.25x2.25"/12.3oz	7.25x3.25x2.25"/12.3oz
