Extech EX810 1000A AC Clamp Meter with IR Thermometer

Item #:

EXT-EX810

Brand:

Extech

Our tech experts are ready to help!

Share this product:

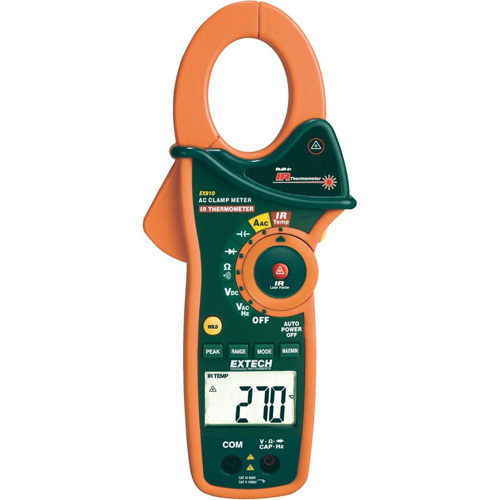

EX810 1000A AC Clamp Meter with IR Thermometer by Extech

Ideal for industrial applications the 800 series Full size 1000A clamps feature a built-in Infared thermometer and rugged double molded housing

Non-contact InfraRed Temperature measurements with laser pointer
Models with True RMS Current and Voltage measurements
Peak hold captures inrush currents and Transients
MultiMeter functions include AC/DC Voltage, Resistance, Capacitance, Frequency, Type K Temperature (EX820/EX830), Diode, and Continuity
1.7" (43mm) jaw opening for conductors up to 750MCM or two 500MCM
4000 count backlit display
Features include Data Hold and Min/Max
Autoranging with manual range button
Auto Power off
Complete with test leads, 9V battery, general purpose Type K probe (EX820/EX830), and case
AC Current
Average responding

General Specifications

Clamp jaw opening	43mm (1.7") approx.
Display	3-3/4 digits (4000 counts) backlit LCD
Continuity check	Threshold 40Ω; Test current < 0.5mA
Diode test	Test current of 0.3mA typical; Open circuit voltage < 3VDC typical
Low Battery indication	Battery symbol is displayed
Over-range indication	'OL' displayed
Measurement rate	2 readings per second, nominal
PEAK	Captures peaks >1ms
Thermocouple sensor	Type K thermocouple required
IR Spectral response	6 to 16µm
IR Emissivity	0.95 fixed
IR distance ratio	8:1
Input Impedance	10MΩ (VDC and VAC)
AC bandwidth	50 to 400Hz (AAC and VAC)
Crest Factor	3.0 in 40A and 400A ranges, 1.4 in 1000A range (50/60Hz and 5% to 100% of range)
Operating Temperature	5°C to 40°C (41°F to 104°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Operating Humidity	Max 80% up to 31°C (87°F) decreasing linearly to 50% at 40°C (104°F)
Storage Humidity	<80%
Operating Altitude	2000meters (7000ft) maximum.
Battery	One (1) 9V Battery (NEDA 1604)
Auto power OFF	After approx. 25 minutes
Dimensions & Weight	270x110x50mm (10.6x4.3x2"); 386g (13.6 oz)
Safety	For indoor use and in accordance with the requirements for double insulation to IEC1010-1 (2001): EN61010-1 (2001) Overvoltage Category III 600V and Category II 1000V, Pollution Degree 2.
Patent notice	U.S. Patent 7163336

Range Specifications

Function	Range & Resolution	Accuracy (% of reading + digits)
AC Current 50/60 Hz	400.0 AAC	± (2.5% + 8d)
AC Current 50/60 Hz	1000 AAC	± (2.8% + 5d)
AC Voltage 50/60Hz	400.0 mVAC	± (1.0% + 10d)
	4.000 VAC	± (1.5% + 5d)
	40.00 VAC
	400.0 VAC
	600 VAC	± (2.0% + 5d)
DC Voltage	400.0 mVDC	± (0.8% + 2d)
	4.000 VDC	± (1.5% + 2d)
	40.00 VDC
	400.0 VDC
	600 VDC	± (2.0% + 2d)
Resistance	400.0Ω	± (1.0% + 4d)
	4.000kΩ	± (1.5% + 2d)
	40.000kΩ
	400.0kΩ
	4.000MΩ	± (2.5% + 3d)
	40.00MΩ	± (3.5% + 5d)
Capacitance	4.000nF	± (5.0% + 30d)
	40.00nF	± (5.0% + 20d)
	400.0nF	± (3.0% + 5d)
	4.000µF
	40.00µF
	400.0µF	± (4.0% + 10d)
	4.000mF	± (10% + 10d)
	40.00mF	unspecified
Frequency	4.000kHz	± (1.5% + 2d)
Frequency	Sensitivity: 100V (<50Hz); 50V (50 to 400Hz); 5V (401Hz to 4000Hz)
Temperature (type-K)	-4 to 1400°F	± (3%rdg + 9°F)
Temperature (type-K)	-20 to 760°C	± (3%rdg + 5°C)
Temp (IR)	-58 to -4°F	± 9°F
	-4 to 518°F	±2.0% reading or ± 4°F whichever is >
	-50 to -20°C	±5°C
	-20 to 270°C	±2.0% reading or ±2°C whichever is >
