Description

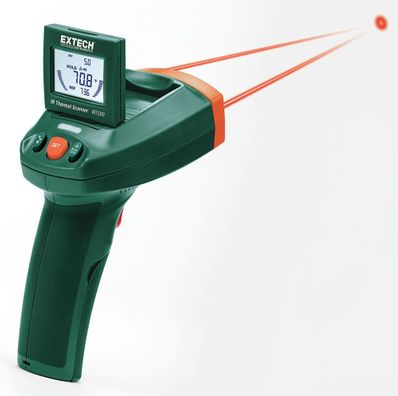

IRT500 Dual Laser IR Thermal Scanner with Adjustable Display by Extech

More than just an IR Thermometer, Extech IR Thermal Scanner is designed with a dual laser, audible/ visual alarm feature, 5 preset threshold settings, and 3 color LED indicators to make it easy to locate hot and cold spots quickly by scanning the area being tested. Just point at your target and scan!

Features

Three-color LED indicates High (red), Normal (green), or Low (blue) when scanning for temperature irregularities
Audible alarm increases as temperature increases or decreases
5 user-programmable threshold settings
A dual laser system indicates ideal measuring distance by converging at 20" (50.8cm) to confirm a 1" (2.5cm) target spot
Fast-response, 150 millisecond sampling rate
Tilt adjustable LCD display with bright white backlit feature and dual bargraphs
Min/Max and easy keypad operation
Trigger lock for continuous use
Complete with 9V battery and carrying case

Specifications

General Specifications

Display	Backlit LCD
3-Color LED Indicator	3-color hot/cold spot LED indicator LED color transitions occur at ±1° , 5° , 10° deviations from user preset 'normal' temperature value
Response time	150 milliseconds
MAX/MIN memory	Display shows highest (MAX) and lowest (MIN) readings for each scan session
Polarity	Automatic (no indication for positive polarity); Minus (-) sign for negative polarity.
Emissivity	0.95 fixed value
Field of view	D/S 20:1 ratio
Diode Laser	Output <1mW, Wavelength 630~670nm, Class 2 (II) Laser product
Spectral response	8~14um
Operating temperature	0°C to 50°C (32°F to 122°F)
Storage temperature	20°C to 60°C (-4°F to 140°F)
Relative humidity	10%~90%RH operating, <80%RH storage
Power supply	9V battery, NEDA 1604A or IEC 6LR61, or equivalent
Weight	5.7 oz. (163 g)
Dimensions	6.6 x 3.2 x 2.3" (168 x 82 x 58 mm)

Measurement Range Specifications

Range	Resolution	Accuracy
-30°C to 20°C -22°F to 32°F	0.1°F/°C	± 3.5°C (6.3°F)
20°C to 260°C 32°F to 500°F	0.1°F/°C	± (1% + 1.8°C or 3.3°F)
