Extech 200A Current Clamp Probes - PQ34-2
Item #:
EXT-PQ34-2
Brand:
Extech
Share this product:

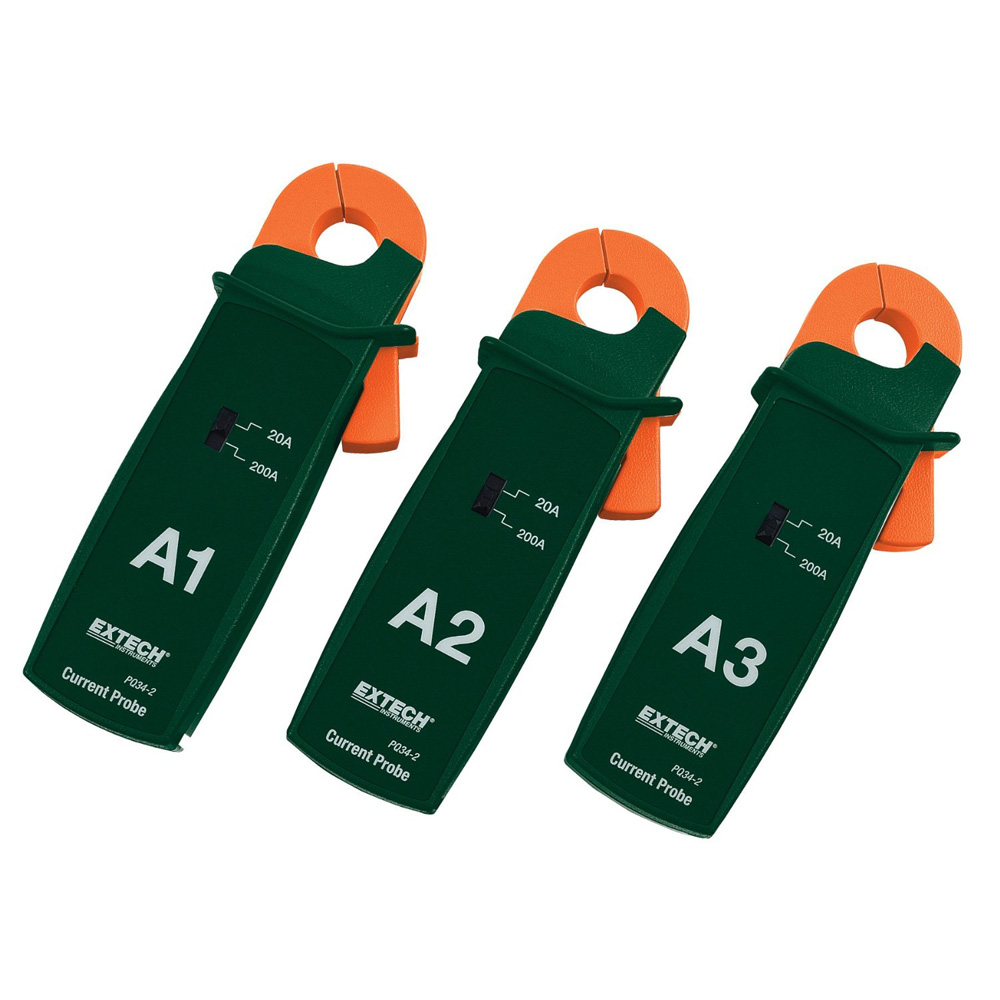

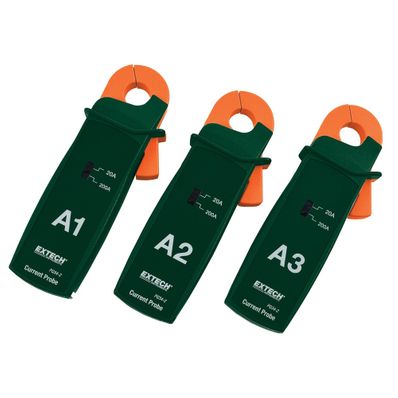

200A Current Clamp Probes.
Set of 3 clamp probes with 0.8" (19mm) jaw opening
| Measurement ranges | 20A and 200A, switch selectable |
| Output sensitivity | 10mV/A (20A range) 1mV/A (200A range) |
| Output coupling | AC coupled. |
| Accuracy (50/60Hz) | ± 1% F.S. @ 23 ± 5°C (50/60Hz) |
| Frequency range | 45 to 400 Hz |
| Phase error (50/60Hz) | < ± 1° (50/60Hz) |
| Minimum load | 100 K ohm for specified accuracy |
| Enclosure material | UL 94-V0 rated |
| Safety | IEC 1010, Category III 600V |
| Power Supply | 8V± 1V (supplied from meter) |
| Max. Jaw Open Size | 19 mm (0.75 inch) Dia. |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Operating Humidity | Less than 80% RH |
| Dimension | 179.9 x 66.9 x 40.1mm. (7.0 X 2.6 X 1.57"inch) |
| Cable length | 4 meters (13.1 feet) |
| DC plug size | 5.5 mm x 2.5 mm DIA. |
| Weight | 330 g (0.73lb) |
