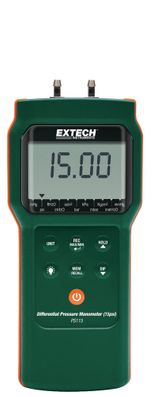

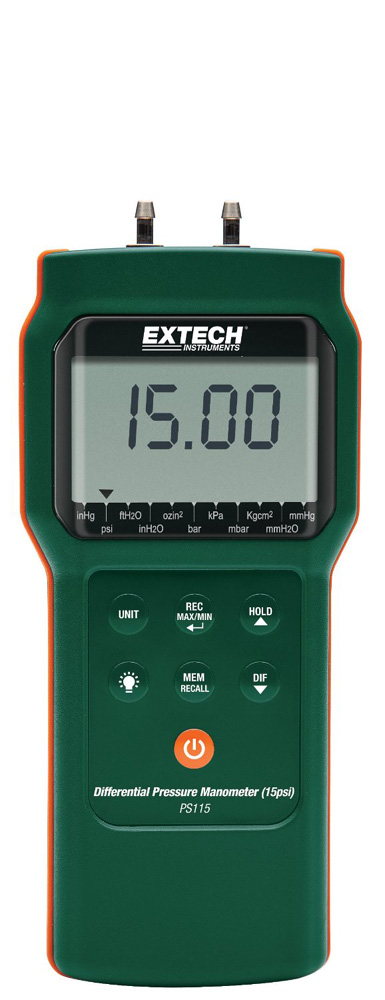

Extech PS115 Differential Pressure Manometer (15psi) with NIST
Item #:
EXT-PS115-NIST
Brand:
Extech
Share this product:
PS115 Differential Pressure Manometer (15psi) with NIST by Extech
Extech's Differential Pressure Manometers series are ideal for field, manufacturing or lab/R&D use Three models offer ranges for various applications: 1psi, 6psi, 15psi. Each model displays readings in 11 units with high resolution.
Features
- Three models to choose from: Model PS101 (±1psi range); Model PS106 (±6psi range); Model PS115 (±15psi range)
- 11 units of measure to choose from
- Manually store/recall 99 readings
- Max/Min recording and Relative time stamp
- Data Hold and Auto power off with disable
- Large LCD display with backlighting
- Zero function for offset correction or measurement
- Complete with six AAA batteries, two connection hoses and hard carrying case
Applications
- HVAC: Pressure drop at filters and pressure loss in ducts
- Testing pneumatic controls and pressurized equipment in manufacturing
- Clean rooms and medical equipment
- Testing and adjusting regulators
- Positive pressure testing in clean rooms & operating rooms
- Boiler installation and gas furnace pressure switch testing
| Display | Backlit multifunction LCD |
| Status indicators | Multifunction display icons and low battery indicator |
| Ranges | Model PS101: 1psi Model PS106: 6psi Model PS115: 15 psi |
| Measurement Units | bar, mbar, psi, Kg/cm2, mm Hg, inch Hg, meters of H2O, inches of H2O, hPA, kPA, and ozin2. |
| Accuracy (Meter) | ± (0.3% full scale) at ambient temperature 25°C (± 73°F) |
| Repeatability | ± (0.2% to 0.5% full scale) |
| Linearity/Hysteresis | ± (0.29% to 1.0% full scale) |
| Combined accuracy | ± (1.0% full scale) |
| Data Hold | Freezes the displayed reading |
| Max-Min Record/Recall | Record and Recall the Maximum and Minimum readings |
| Internal reading memory | 99-reading internal memory storage with instant recall |
| Display update rate | 0.5 seconds (approx.) |
| Hose dimensions | 4mm lug (orange hose 500mm length) |
| Operating Temperature | 0 to 50°C (32 to 122°F) |
| Operating/Storage Humidity | 90% R.H. max. |
| Storage Temperature | -20 to 50°C (-4 to 122°F) |
| Auto Power OFF | After 20 minutes of inactivity (can be disabled) |
| Power Supply | Six (6) 1.5 VDC ‘AAA’ batteries |
| Weight | 200g (7.0 oz.) with batteries |
| Dimensions | 169 x 78.3 x 34.4mm (6.7 x 3.1 x 1.4") |
