Extech SDL700 Pressure Meter/Datalogger

Item #:

EXT-SDL700

Brand:

Extech

Our tech experts are ready to help!

Share this product:

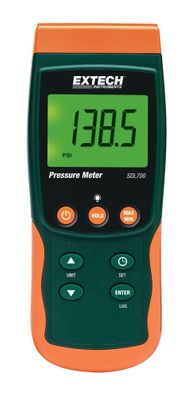

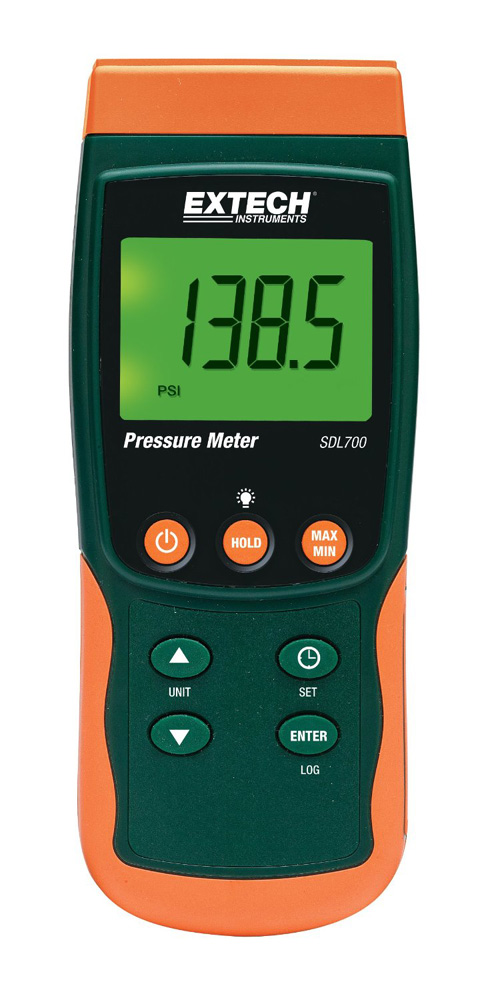

SDL700 Pressure Meter/Datalogger by Extech

Accepts interchangeable transducers with ranges of 30, 150, 300psi (transducers sold separately)
Meter automatically senses plug-in transducer�s range and calibration
Displays 10 types of pressure units
Offset adjustment used for zero function to make relative measurements
Adjustable data sampling rate: 1 second to 8hrs:59min:59sec
Stores 99 readings manually and 20M readings via 2G SD card
Large backlit dual LCD display
Record/Recall MIN, MAX readings
Data Hold plus Auto power off with disable function
Built-in PC interface
Complete with 6 x AA batteries, SD card, and hard carrying case. Transducers sold separately and optional AC adaptors

Display	Backlit LCD; LCD size: 52 x 38mm (2 x 1.5")
Status indicators	Over-range audible beep and low battery display icon
Sensor types	Accepts pressure sensors with 100mV full scale Available sensors: 30, 150 and 300psi
Measurement Units	Bar, psi, Kg/cm², hPA, mm Hg, inch Hg, meters H2O, kPA, inches H₂O, ATP
Accuracy (Meter)	± (0.5% reading + 1d) at ambient temperature 23°C (± 5°C)
Datalogger Sampling Rate	AUTO LOGGING: From 1 second up to 9 hours. MANUAL LOGGING: Set the sampling rate to '0' seconds
Memory Card	SD memory card; 1G to 16GB size
Data Hold	Freeze the displayed reading
Memory Recall	Record and Recall the Maximum and Minimum readings
Display update rate	Approx. 1 second
Data Output	RS-232 / USB PC computer interface
Operating Temperature	0 to 50°C (32 to 122°F)
Operating Humidity	85% R.H. max.
Auto Power OFF	After 10 minutes of inactivity (can be disabled)
Power Supply	Six (6) 1.5 VDC batteries (optional 9V AC adaptor)
Power Consumption	Normal operation (backlight and datalogger OFF): approx. 5mAdc With backlight OFF and datalogging ON: approx. 25mAdc With backlight ON add approx. 12mAdc
Weight	343g (0.75 lbs.) w/ batteries; 241g (0.53 lbs.) w/o batteries
Dimensions	182 x 73 x 47.5mm (7.1 x 2.9 x 1.9")
