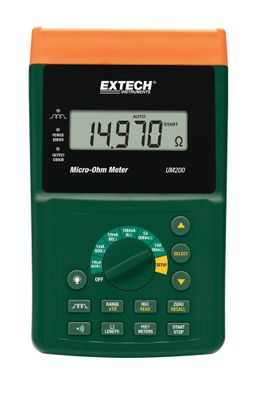

Extech UM200 High Resolution Micro-Ohm Meter
Item #:
EXT-UM200
Brand:
Extech
Share this product:

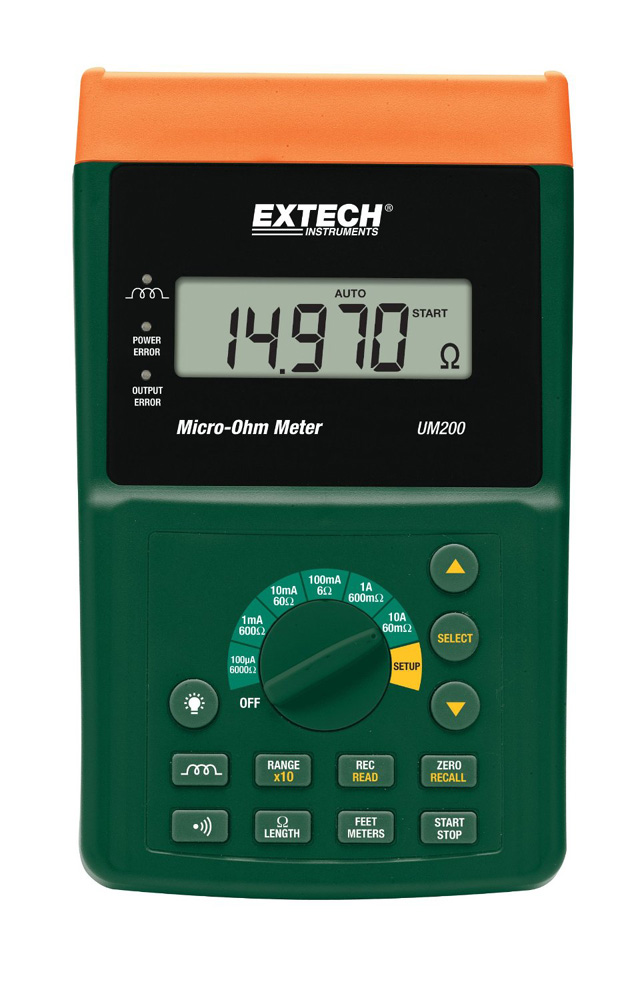

UM200 High Resolution Micro-Ohm Meter by Extech
Features
- 6 ranges with 3 sub-ranges in each current range
- Measurement of resistive and inductive materials
- Auto or Manual ranging
- High resolution to 1μ
- 5-Digit backlit LCD
- Built-in comparator for Hi/Lo resistance testing with 20 sets of prestored values
- Store/Recall up to 3000 measurements
- 10A maximum test current
- Cable length measurement (feet or meters)
- PC interface
- Complete with 4-wire cables with Kelvin clip connectors, rechargeable Li-Polymer battery, AC adapter/charger, software and USB cable, and soft carrying case
| LCD Display | 60000 count LCD with Backlight |
| Power Source | Rechargeable Lithium Battery, 3400mAh (11.1V) |
| Battery Recharge Time | 10 hours |
| Battery Charge | AC 110V or 220V input, DC 15V / 1 to 3A output |
| Dimensions | 10.1x6.1x2.25" (257 x 155 x 57mm) |
| Weight | 40.0oz / 1160g/ (Batteries included) |
| Operation temperature and humidity | 32°F to 122°F (0°C to 50°C), 85% RH |
| Storage temperature and humidity | -4°F to 140°F (-20°C to 60°C), 75% RH |
Range |
Resolution |
Accuracy (% of Reading) |
|
10 A |
400μΩ to 4000μΩ |
1 μΩ |
±(0.25%±25μΩ) |
1.500mΩ to 16.000mΩ |
|||
5.000mΩ to 60.000mΩ |
|||
1 A |
4.00mΩ to 40.00mΩ |
10μΩ |
±(0.25%±250μΩ) |
15.00mΩ to 160.00mΩ |
|||
50.00mΩ to 600.00mΩ |
|||
100 mA |
0.0400Ω to 0.4000Ω |
100μΩ |
±(0.25%±2.5mΩ) |
0.1500Ω to 1.6000Ω |
|||
0.5000Ω to 6.0000Ω |
|||
10 mA |
0.400Ω to 4.000Ω |
1 mΩ |
±(0.25%±25mΩ) |
1.500Ω to 16.000Ω |
|||
5.000Ω to 60.000Ω |
|||
1 mA |
4.00Ω to 40.00Ω |
10 mΩ |
±(0.25%±250mΩ) |
15.00Ω to 160.00Ω |
|||
50.00Ω to 600.00Ω |
|||
100μA |
0.0400kΩ to 0.4000kΩ |
100 mΩ |
±(0.75%±3Ω) |
0.1500kΩ to 1.6000kΩ |
|||
0.5000kΩ to 6.0000kΩ |
|||
Range |
Resolution |
Accuracy (% of Reading) |
|
10A |
400μΩ to 60.000mΩ |
1μΩ |
±(0.25%±25μΩ) |
1 A |
4.00mΩ to 600.00mΩ |
10μΩ |
±(0.25%±250μΩ) |
100 mA |
0.0400Ω to 6.0000Ω |
100μΩ |
±(0.25%±2.5mΩ) |
10 mA |
0.400Ω to 60.000Ω |
1mΩ |
±(0.25%±25mΩ) |
1 mA |
4.00Ω to 600.00Ω |
10mΩ |
±(0.25%±250mΩ) |
100μA |
0.0400kΩ to 6.0000kΩ |
100mΩ |
±(0.75%±3Ω) |
