Refrigerant

SRL2K7 Infrared Refrigerant Leak Detector by Fieldpiece

Like all of Fieldpiece's test instruments, the SRL2 Infrared Refrigerant Leak Detector is designed exclusively to make the HVACR Technician's job easier, faster, safer and more efficient. We set out to develop the best refrigerant leak detector for HVACR. We believe the SRL2 is it. And now it comes in kit form in a rugged, blow-mold case with all of the extras.

The ergonomic design fits naturally in your hand. The ruggedized construction stands up to abuse most other leak detectors can't handle. The eight-hour battery life lets you work all day before recharging and the included vehicle and wall chargers help you during overtime. The mute and peak functions allow you to work the way you want to work. The magnetic hanger helps keep the detector out of the way when repairing a leak, but visible enough so you won't leave it on the job.

Advantages Over Other Types of Refrigerant Leak Detectors

• Triggers on all CFCs, HFCs, HCFCs and blends.ABMK3_w_SRL2
• Sealed sensor. Unlike heated diode and corona discharge leak detectors, the sensor doesn't "touch" refrigerant as it passes through the instrument. Heated diode and corona discharge units tend to degrade or fail when they come in contact with high concentrations of refrigerant or touch liquid.
• Doesn't trigger on oil or moisture like other types of detectors.
• Senses change in refrigerant levels. Works even in contaminated environments.
• Up and running in less than 30 seconds. Some heated elements and corona discharge units take much longer to warm up. UV dyes can take several hours to travel through a running system and can degrade system components.

Designed for HVACR

• Superior - Controlled Sensitivity. Doesn't trigger on nuisance leaks unless in Turbo Mode.
• Rugged / Ergonomic Features. Ruggedized boot and it fit's in your hand.
• Infrared Sensor. Lasts up to 10 years.
• Three Sensitivity Levels. Meets new SAE standards.
• Audible/Visual Alarm. Turn the beep on or off - you decide.
• 8-hour Battery Charge. Work all day on one charge.
• Non-conductive, Sturdy Probe. Stays where you want it.
• Peak / Mute Buttons. Find leaks in noisy environments.
• Magnetic Hanger. Hang the unit while you repair the leak.
• Weighs 14-oz. Tough doesn't have to mean heavy.

Includes

• Advanced Refrigerant Leak Detector - SRL2(K7)
• (5) O-rings and 10 Replacement Filters - RFL2
• 9-inch Flex-Probe Extension - RFE2
• Rigid Extension Probe - RRE2
• Blow-Molded Case - ABMK3
• Operator's Manual

SRL8 Heated Diode Refrigerant Leak Detector by Fieldpiece

The SRL8 Heated Diode Refrigerant Leak Detector is designed exclusively to make the HVAC/R Technician's job easier, faster, safer and more efficient. We set out to develop the best heated diode leak detector for HVAC/R. We believe the SRL8 is it. It comes in kit form in a rugged, blow-mold case with all of the extras you don't get from the other guys.

The Fieldpiece ergonomic standalone design fits naturally in your hand. The ruggedized construction stands up to abuse most other leak detectors can't handle. The 15-hour battery life lets you work all day and then some before recharging. The included vehicle and wall chargers help you during overtime. The MUTE and ZEROing functions allow you to work the way you want to work. The magnetic hanger helps keep the detector out of the way when repairing a leak, but visible enough so you won't leave it on the job..

Advantages Over Other Types of Refrigerant Leak Detectors

• Triggers on all CFCs, HFCs, HCFCs and blends. More sensitive to some refrigerants than others.
• 15-hour rechargeable, user replaceable battery. It lasts almost two full workdays on a single charge (if your hunting down leaks all day). You can also use it while it's hooked up to the wall or vehicle charger.
• Filter system helps protect the sensor from moisture and other contaminants. The sensor is connected to the body at the other end of the snout. The filter is at the tip of the snout. If you accidentally hit some condensation or oil, the filter swells, shutting off the pull to the sensor and protecting it from failure.
• Manual or automatic zeroing. It auto zeros every two seconds until a leak triggers the sensor. After that you can manually zero the detector to help further pinpoint leaks..
• Up and running in 30 seconds. Some heated elements and corona discharge units take much more time to warm up. UV dyes can take several hours to travel through a running system and can degrade system components.

SRL8 - Designed for HVACR

• Three sensitivity levels from 6.6oz/yr to <0.1oz/yr. Meets new SAE standards.
• Rugged / Ergonomic Features. Ruggedized boot and it fit's in your hand.
• Heated Diode Senso lasts up to 5 years (depending on use and exposure).
• Audible/Visual Alarm. Turn the beep on or off - you decide.
• 15-hour Battery Charge. Work all day and all night on one charge.
• Battery life check. See how much charge you have left by looking at the LED display.
• Non-conductive, Sturdy Probe. Stays where you want it.
• LED and Audio alerts. Find leaks in noisy environments.
• Mute: Turn off the sound when you don't want anyone to hear what you're doing.
• Magnetic Hanger. Hang the unit while you repair the leak.

Includes

• Advanced Refrigerant Leak Detector - SRL8
• (5) O-rings and 10 Replacement Filters - RFL2
• 9-inch Flex-Probe Extension - RFE2
• Rigid Extension Probe - RRE2
• Blow-Molded Case - ABMK3
• Operator's Manual

SCL2 Leak Detector-CO2 by Fieldpiece

The SCL2 is a portable CO₂ (R-744) leak detector with a superior combination of sensitivity, speed, sensor life, battery life, portability, and ease of use.

Find leaks on commercial refrigeration systems, restaurant soda machines, or any other system using R-744. Pinpoint tiny leaks in high concentration CO₂ environments with ease.

Gas is pumped through the tip of the wand into the sensor within the SCL2 body. The sensor detects changes in concentration, not absolute concentration, allowing the SCL2 to differentiate CO₂ concentrations higher than concentrations normally found in ambient air.

The SCL2 detects leaks as small as 6 grams/yr (0.2 oz/yr). The SCL2 has three sensitivity settings to keep false triggering to a minimum.

A quick and automatic 30 second selfcalibration upon power-up ensures optimal performance.

The SCL2 comes with a wall and car charger for its ultra-compact lithium-ion battery which powers the SCL2 for 8hrs of continuous operation before a recharge is needed.

• Find R-744 refrigerant leaks.
• Long-life sensor made to last up to ten years.
• Three sensitivity levels down to 6g (0.2oz) per year.
• Senses change. Works in contaminated environments.
• Rechargeable lithium ion battery with two chargers.

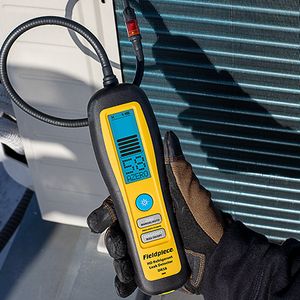

DR58 Heated Diode Refrigerant Leak Detector by Fieldpiece

Compact and rugged, the DR58 Heated Diode Refrigerant Leak Detector helps you find leaks fast in the field. Its heated diode sensor detects all HFC, HCFC, CFC, HFO, and blends.

Multiple indicators and sensitivity 20x higher than soap bubbles make it easy to track down even the smallest leaks in various environments. A red LED flashes at the tip so you can keep your eyes on the target. The large bars on the backlit LCD are easy to see in bright sunlight or low light, and the numerical value provides an extra digit of resolution.

Unlike conventional leak detectors, you have full control with both an automatic (AZERO) and manual (MZERO) zero mode.

The large Li-ion rechargable battery provides over 18 hours of continuous operation and is convenient to charge via USB-C. Replaceable tips filter out water and dust while getting into tight spots. All wrapped up in a ruggedized IP54 housing, it's built for the field.

• Sensitivity better than 0.03 oz/yr (1g/a)
• Bright, LCD screen with easy-to-see bar graphs and numeric readings
• 18-hour USB rechargeable lithium-ion battery
• Detects all HFC, CFC, HCFC, HFO and blends
• Flashing lighted tip, multiple alarms, and numerical leak size indicator
• Manual or automatic zeroing
• Great performance on R410A

One-of-a-kind by design.

Since it's a Fieldpiece, the DR58 Heated Diode Refrigerant Leak Detector is full of the features you need. It's also designed to handle the abuse that most leak detectors can't with an impact resistant IP54-certified body that fits easily in your hand.

Clearly see even the smallest leak.

Sniffing leaks at less than 0.03 oz/yr (1g/a), the DR58 detects all HFC, CFC, HCFC, HFO and blended refrigerants with superior sensitivity at detecting R410A refrigerant. On the DR58's new, bright backlit LCD screen you’ll see easy-to-read bar graphs, numeric readings and customizable dual alarms. No more guessing about what's leaking. Also, it can both automatically and manually zero to refrigerant gas concentrations giving you total control.

Detects faster. Lasts longer.

The DR58 boasts an 18-hour battery life that'll last longer than you will on the job site. Yes, it's built to perform. Soap bubble solutions can take several minutes to form visible bubbles and messy UV dyes can take several hours to travel through a running system.

Every feature you'll love:

• Ruggedized and IP54-certified body
• Compact to fit in your hand
• Bright, backlit LCD screen shows bar graph and numeric readings
• Heated diode sensor 300 hour life, typical
• Dual audible and visual alarms – turn the beep on or off when you want
• LED lighted tip and loud beep help find leaks in noisy and dark environments
• 18-hour USB rechargeable battery – work all day and all night on one charge
• Numerical Leak Size Indicator with Bar Graph
• Non-conductive, sturdy probe stays where you want it
• Weighs less than a pound
• Full control – Automatic Zero, Manual Zero and Mute functions
• Works on A2L Refrigerants

What's Included

• (1) Heated Diode Refrigerant Leak Detector – DR58
• (5) Replacement Filtered Tips – RFT6
• (1) Blow-Molded Case
• (1) Heated Diode Sensor – RHD1

DR82 Infrared Refrigerant Leak Detector by Fieldpiece

Compact and rugged, the DR82 Infrared Refrigerant Leak Detector helps you find leaks fast in the field. The 10 year infrared (IR) sensor detects all HFC, HCFC, CFC, HFO, and blends.

Multiple indicators and sensitivity 20x higher than soap bubbles make it easy to track down even the smallest leaks in various environments. A red LED flashes at the tip so you can keep your eyes on the target. The large bars on the backlit LCD are easy to see in bright sunlight or low light, and the numerical value provides an extra digit of resolution.

Unlike conventional leak detectors, you have full control with both an automatic (AZERO) and manual (MZERO) zero mode.

The large Li-ion rechargable battery provides over 10 hours of continuous operation and is convenient to charge via USB-C. Replaceable tips filter out water and dust while getting into tight spots. All wrapped up in a ruggedized IP54 housing, it's built for the field.

• State-of-the-art infrared sensor
• Massive backlit LCD screen provides clear, easy-to- see information
• Sensitivity better than 0.03 oz/yr (1g/a)
• Detects all HFC, CFC, HCFC, HFO and blends
• Flashing lighted tip, loud beeper and leak rate indicator
• Doesn't trigger on soap bubbles and oil

The highest possible sensitivity.

If you want to find leaks faster for your customers, try the Fieldpiece DR82 Infrared Refrigerant Leak Detector. Our newest detector can sniff out leaks at <0.03 oz/yr. That's 20 times more sensitive than soap bubbles. This exceeds detection standards so you can quickly find and pinpoint leaks. DR82 triggers on all HFC, CFC, HCFC, HFO and blends.

Goodbye false-positives.

Unlike other detectors you'll find on the market, the DR82 doesn't trigger on oil or moisture. It also senses change in refrigerant levels and can work in contaminated environments. The sensors are fast-acting and last up to 10 years.

Easy to use, see and charge.

The DR82 is designed to easily fit in your hand and is rugged enough to handle the demands you face in the field every day. Its new, bright screen has an easy-to-read bar graphs, numeric readings and customizable dual alarms so you'll always know exactly what you're seeing. The DR82 also holds a charge for up to 10 hours and can be used while charging, so it can work as long as you need.

DR82 Features:

• 10-year sensor life
• Doesn't trigger on soap bubbles and oil
• Compact – designed to fit in your hand
• Multiple alarms
• LED lighted tip and loud beep help find leaks in noisy and dark environments
• Sensitivity better than 0.03 oz/yr (1g/a)
• Ruggedized and IP54-certified
• 10-hour battery charge
• Bright blue, back-lit LCD screen with clear numerical leak size indicator and bar graph
• Non-conductive, sturdy probe that stays where you want it.
• Weighs less than a pound
• Works on A2L Refrigerants

What's Included

• (1) Advanced Infrared Refrigerant Leak Detector – DR82
• (5) Replacement Filtered Tips – RFT6
• (1) Blow-Molded Case
