Job Link System Probes

JL3KH6 Job Link Kit-Charge and Air by Fieldpiece

Take a full system snapshot quickly and easily with the JL3KH6 Charge and Air Test Kit. This kit consists of 2 pressure probes, 2 pipe clamps, and 2 psychrometers in a quick access padded case. All measurements can be sent up to 350' away directly to your mobile device with the Job Link™ app. Each tool is designed for agility and speed. The pressure probes fit into tight spaces. The pipe clamps use the new Rapid Rail™ sensor design delivering accuracy, speed, and agility, even on the most awkward pipe configurations. The psychrometers' flexible narrow probes and configurable magnet make it easy to measure supply plenums, ducts, and elevated registers. Do more with Job Link™ probes!

Powerful Wireless Signal Strength

• Up to 350' wireless signal
• Powerful enough to go through most walk-in coolers and freezers
• Directly transmits to your mobile device

Rapid Rail™ Sensor Advantages

• Stabilizes in under 5 seconds
• Beeper and LED indicate accurate connection
• The Rapid Rail™ sensor uses pipe to complete circuit so ambient conditions don't affect the measurement
• Narrow jaw connects in tight spaces and on irregular pipe shapes

Reliable Pressures Regardless of Location

• 45° angled fitting easily connects in tight spaces
• Pressure sensors are accurate at any elevation
• Calibrates automatically when powered on

Configurable Psychrometric Testing

• Probes measure return and supply for grilles and registers
• Place at multiple locations based on system requirements
• Long flexible probe with sliding magnet for easy placement on system
• Narrow tip fits in 3/8" holes or larger
• Real time enthalpy and delivered BTUs

JL3KR4 Job Link Kit-Charge by Fieldpiece

Connect two pressure probes and two pipe temperature clamps to immediately see system charge on your Job Link® app. Easily determine if unit is running properly, or if troubleshooting is needed. All measurements can be sent up to 350' away directly your mobile device. Each tool is designed for agility and speed. The pressure probe fits into tight spaces. The pipe clamp uses a new Rapid Rail™ sensor design to deliver accuracy, speed, and agility, even on the most awkward pipe configurations. Do more with Job Link® probes!

Powerful Wireless Signal Strength

• Up to 350' wireless signal
• Powerful enough to go through most walk-in coolers and freezers
• Directly transmits to your mobile device

Rapid Rail™ Sensor Advantages

• Stabilizes in under 5 seconds
• Beeper and LED indicate accurate connection
• The Rapid Rail™ sensor uses pipe to complete circuit so ambient conditions don't affect the measurement
• Narrow jaw connects in tight spaces and on irregular pipe shapes

Reliable Pressures Regardless of Location

• 45° angled fitting easily connects in tight spaces
• Pressure sensors are accurate at any elevation
• Calibrates automatically when powered on

JL3PC Job Link Probe-Pipe Clamp by Fieldpiece

The JL3PC pipe temperature wireless clamps feature patent pending Rapid Rail™ Sensor Technology that uses electrically conductive pipe to complete the circuit so readings stabilize in 3 seconds and are not affected by ambient air. One beep with a slow green blinking light indicates a closed circuit. If the pipe is corroded the circuit will be open and will not read temperature. The clamp will indicate the open loop with a double beep and rapid blinking light. Simply clean the pipe to enable the circuit to be closed and allow fast readings with +/- 1° F accuracy.

• The JL3PC uses electrically conductive pipe to complete the circuit so readings are not affected by ambient air
• 3 second stabilization with ±1°F accuracy
• LED and beeper indicate when the thermocouple circuit is closed and accurate
• Narrow jaw size gets into tight spaces or irregularly shaped pipes

JL3PR Job Link Probe-Pressure by Fieldpiece

Easily access service ports at odd angles and/or tight spaces with the Job Link® System Pressure Probes. Pressure sensors are accurate at any elevation so your readings are spot on no matter your location.

• 45° angled fitting easily connects in tight spaces
• Pressure sensors are accurate at any elevation
• Calibrates automatically to barometric pressure

JL3RH Job Link Probe-Flex Psych by Fieldpiece

The JL3RH Job Link® System Psychrometer Probe has a long flexible wand and strong sliding magnet for easy measurements anywhere on the system. Get instant live readings from ducts, plenums, registers, or grilles for accurate diagnostics.

• Place in critical locations based on system needs
• Requires only 3/8" hole for duct testing
• Return and supply indicator switch
• Measures dry bulb, wet bulb, %RH, dew point, and enthalpy
• Add multiple psychrometers for system wide testing in real time

JL3KM2 Job Link Dual Manometer Kit (Case+2xJL3MN) by Fieldpiece

You know taking pressures from exact locations results in more precise diagnostics, so why be limited by hose length? The revolutionary new Dual Port Manometers from Fieldpiece aren't tethered by hoses, so you get readings from optimal locations on every system, every time.

Short hose length keeps things neat, and independent sensors allow for direct placement on test ports. Measure between zones without snaking a hose past the door where it can be pinched. Dial in gas pressure of a furnace. Optimize total external static pressure of equipment. Pinpoint duct leaks and restrictions. Increase comfort and do more.

View static pressures or gas pressures from the new Fieldpiece manometer probes directly on the Job Link App -- up to 350' away! Unlike traditional dual port manometers, the JL3MN probes work independently so you don't have to bother with long hoses. This modular freedom also gives you real-time differential pressures from across the job site.

Place probes in precise locations regardless of system set up. From gas pressures of residential furnaces to the total external static pressure on commercial air handlers, you now have the versatility you've always needed.

• 350' long-range wireless
• Rugged metal tips
• All-in-one static, gas, and draft pressure
• Accurate and stable measurements
• Measure between zones without snaking a hose under the door
• Strong rotating magnet
• Untethered usage
• Individual pressure readouts give you P1, P2, and pressure differential in real-time
• All accessories for static and gas applications included
• Document system health in Job Link App reporting

JL3KM2 (Kit)

• Reliable Pressure Regardless of Location
• Measure Real-time Pressure Drops
• Find Inlet and Outlet Gas Pressures
• Switchable P1 - P2 Indicator
• Job Link® System App Compatible
• Easy Zero to Atmosphere

What's Included

JL3MN

• Manometer Probe
• Static Pressure Probe and Hose
• Brass Screw Fitting with Extra Hose
• Slide Gas Adapter

JL3KM2

• 2 x Manometer Probe
• 2 x Static Pressure Probe and Hose
• 2 x Brass Screw Fitting with Extra Hose
• 2 x Slide Gas Adapter
• Padded Case

JL3MN Manometer Probe by Fieldpiece

Includes

• Manometer Probe
• Static Pressure Probe and Hose
• Brass Screw Fitting with Extra Hose
• Slide Gas Adapter

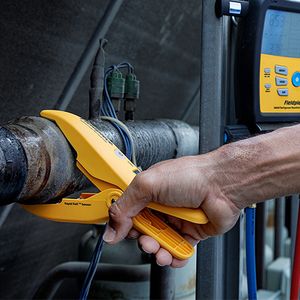

JL3LC Job Link System Large Pipe Clamp by Fieldpiece

The JL3LC Job Link® System Premium Large Pipe Clamp Probe sends long-range wireless pipe temperature measurements directly to the Fieldpiece Job Link® system mobile app. Take advantage of Rapid Rail™ sensor technology for extremely fast and accurate measurements that surpasses Title 24 requirements.

The Rapid Rail™ thermocouple is specifically designed to work on HVACR electrically conductive piping and uses the pipe itself to complete the circuit, resulting in the high temperature accuracy!

The perfect balance of size and capability allows for quick deployment on a system. The grooved handle inspires confidence when gripping. Work on a wide range of pipes from residiential suction lines to large commercial systems.

• Perfect for commercial and refrigeration applications
• Single-hand operation
• Extremely accurate and quick
• Compact design
• Comfortable, ergonomic grip
• Patented Rapid Rail™ Sensor
• Works wirelessly up to 1,000'
• Communicates with Job Link App and Wireless Manifolds (SM380V/SM480V)

Look at the mouth on that thing!

The JL3LC can take measurements on pipes as small as 3/4" and as large as 4 1/8" diameter, so say goodbye to unreliable zip ties and straps and hello to convenience, precision, and speed. This high-tech pipe clamp is rugged, versatile, and wireless. Take measurements from 1,000' away and get quick pipe temp readings right on the latest SMAN® Refrigerant Manifolds or Job Link® System App.

Any use. Any location.

Whether you're in commercial, refrigeration or residential, accuracy always matters. Along with being 4 1/8", the widest opening on the market, the JL3LC uses our patented Rapid Rail™ Sensor, giving you instant accuracy on your pipe temperatures.

Is instant fast enough?

The patented Rapid Rail™ Sensor Technology completes the circuit and stabilizes immediately, giving you direct, reliable and secure connections – even on wet or damp pipes. This also means readings won't be affected by wind, ambient temperature or any other outside influence. And even though it's big, it's also built for use with one hand, which is handy for hard-to-reach areas.

Goodbye wires.

The JL3LC boasts 1,000' of wireless range and communicates with both the Job Link App and our SMAN Refrigerant Manifolds, models SM380V and SM480V. If you're on the job site, you're in range of the JL3LC. If you don't need a wireless clamp, we offer a wired version, the TC48.

Features and Specs:

• Pipe Contact Surface Compatibility: Electrically conductive
• Pipe Size Compatibility: 3/4" to 4 1/8" (19.05mm to 104.78mm) OD
• Rapid Rail™ Sensor Technology thermocouple (nickel chromium / nickel aluminum)
• Wireless Range: 1,000'
• Measurement Range: -50°F to 257°F (-46°C to 125°C)
• Stabilizes in seconds
• ±1.0°F (±0.6°C)
• Waterproof, rugged and built to withstand the rigors of field use
• Meets California’s Title 24 requirements

What's Included:

• JL3LC Probe
• (1) Emery Cloth for Cleaning Pipes
• (2) AAA Batteries

MG44 Job Link Wireless Vacuum Gauge by Fieldpiece

Use the MG44 Wireless Vacuum Gauge to reliably monitor your evacuations in the field. Long range wireless technology sends deep vacuum measurements up to 1000 feet (305 meters) away. View live on your SMANTM manifold, in the Job Link® mobile app, or directly on the MG44.

Save time by wirelessly monitoring your evacuations. Remotely view trending on the Job Link mobile app so you know when an extra nitrogen purge is required, a leak is suspected, or just watch everything pull as planned.

Reduce the misleading nature of dynamic vacuum measurement during pull down by connecting MG44 directly to the system. The reversible angled coupler makes it easy to orient the gauge so that it's out of the way and easy to see.

Select one of three unique views, including a new Rate Meter that provides a great feel and a Bar Graph that has a range up to atmosphere.

Built for demanding field use, the overmolded case resists damage from physical impact and water ingress.

• Confidently perform evacuations with a reliable, leak-proof seal.
• Reversible angled coupler and new cylindrical design are easier to fit into tight spaces.
• There are three ways to use: Stand Alone, Job Link® System App & SMAN® Manifold Screen
• There are three ways to view: Rate, Bar Graph & Rate Meter
• IP54-rated weather-resistant.
• Rugged over-molded construction for extreme impact resistance.

Designed for the field.

Like every piece of Fieldpiece hardware, the Wireless Vacuum Gauge (MG44) is built to make your work easier. It helps eliminate misleading measurements by allowing you to connect it at the system port – even those awkward, hard-to-reach spots. It's also housed in a rugged impact- and weather-resistant case.

Install anywhere – even one-handed.

The new, smaller cylindrical shape of the Wireless Vacuum Gauge, its no-slip grip, and the addition of a reversible angled coupler– mean the MG44 is easy to manipulate and install in the toughest spots.

Three ways to use.

• Stand Alone
• Job Link® System App
• SMAN® Manifold Screen

Three ways to view.

• Rate
• Bar Graph
• Rate Meter
