FLIR ONE PRO for iPhone (iOS) with MSX 160 x 120 Resolution / 9Hz - 435-0006-02

Item #:
FL-435-0006-02
Brand:
FLIR
$399.99
Qty

Discontinued

Send This Page to a Friend

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us
Share this product:

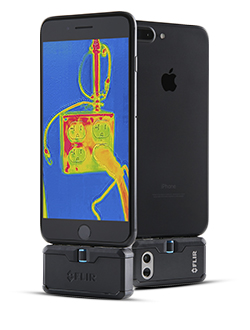

FLIR ONE PRO for iPhone (iOS) with MSX 160 x 120 Resolution / 9Hz - 435-0006-02

FLIR ONE PRO for iPhone (iOS) with MSX 160 x 120 Resolution / 9Hz - 435-0006-02

$399.99

Discontinued


435-0006-02 ONE PRO for iPhone (iOS) with MSX 160 x 120 Resolution/9Hz by FLIR

The FLIR ONE Pro gives you the power to find invisible problems faster than ever. Combining a higher-resolution thermal sensor able to measure temperatures up to 400 °C (752 °F)with powerful measurement tools and report generation capability, the FLIR ONE Pro will work as hard as you do. Its revolutionary VividIR™ image processing lets you see more details and provide your customers with proof that you solved their problem right the first time. The updated design includes the revolutionary OneFit™ adjustable connector to fit your phone, without taking the phone out of its compatible protective case. An improved FLIR ONE app lets you measure multiple temperatures or regions of interest at once and stream to your smartwatch for remote viewing. Whether you’re inspecting electrical panels, looking for HVAC problems, or finding water damage, the new FLIR ONE Pro is a tool no serious professional should be without.

VividIR IMAGE PROCESSING

  • Most advanced image resolution enhancement detects the thermal details you need to find problems fast
  • With 160 x 120 thermal resolution, FLIR ONE Pro uses FLIR's highest resolution micro thermal camera and can measure temperatures as high as 400 °C (752 °F)
  • FLIR MSX® embosses visible edges from the 1440 x 1080 HD camera onto thermal imagery to create a sharper, easier to understand picture

OneFit CONNECTOR

  • Adjust length of USB-C and Lightning connector up to an additional 4 mm
  • Reversible connectors for Android and iOS
  • Secure the FLIR ONE to your mobile device while keeping your phone safe

HARD-WORKING APP

  • Use multiple real-time spot meters and regions of interest
  • Access real-time thermal tips and tricks in the FLIR ONE app followed by professional reporting through FLIR Tools
  • See around corners and in awkward spaces by connecting to your Apple Watch or Android smartwatch
General
Certifications MFi (iOS version), RoHS, CE/FCC, CEC-BC, EN61233
Operating temperature 0 °C - 35 °C (32°F - 95°F) , battery charging 0 °C - 30 °C (32°F - 86°F)
Non-operating temperature -20 °C - 60 °C (-4°F - 140°F)
Size 68mm W x34mm H x14mm D (2.7in x 1.3in x .6in)
Weight 36.5g
Mechanical shock Drop from 1.8m
Video
Thermal and visual cameras with MSX
Thermal sensor Pixel size 12μm, 8 - 14μm spectral range
Thermal resolution 160x120
Visual resolution 1440x1080
HFOV / VFOV 55° ± 1° / 43° ± 1°
Frame rate 8.7Hz
Focus Fixed 15cm - Infinity
Radiometry
Scene dynamic range -20°C - 400°C, -4°F - 752°F
Accuracy ±3°C or ±5%, typical
Percent of the difference between ambient and scene temperature. Applicable 60s after start-up when the unit is within 15 °C - 35 °C and the scene is within 5 °C - 120 °C.
Thermal sensitivity (MRDT) 150mK
Emissivity settings Matte: 95%, Semi-Matte: 80%, Semi-Glossy: 60%, Glossy: 30%
Reflected background temperature is 22°C
Shutter Automatic/Manual
Power
Battery life Approximately 1h
Battery charge time 40min
Interfaces
Video Male Lightning (iOS), Male USB-C (Android)
Charging Female USB-C (5V/1A)
App
Video and still image display/capture Saved as 1440x1080
File formats Still images - radiometric jpeg
Video - MPEG-4 (file format MOV (iOS), MP4 (Android))
Capture modes Video, Still image, Time lapse
Palettes Gray (white hot), Hottest, Coldest, Iron, Rainbow, Contrast, Arctic, Lava and Wheel.
Spot meter Off / °C / °F. Resolution 0.1°C / 0.1°F
Adjustable MSX distance 0.3m - Infinity
Battery charge monitor 0 - 100%
