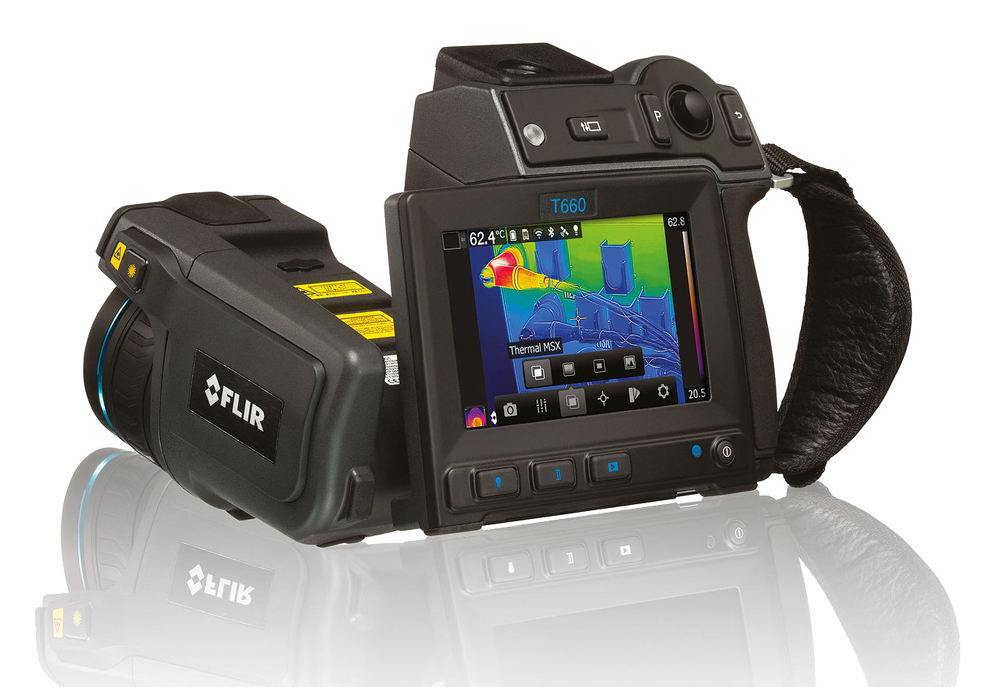

FLIR T660 IR Camera 640 x 480 Resolution / 30Hz with Standard 25° Lens and Optional 45° Lens (45°, f=13.1mm) with Case - 55904-8525

Item #:
FL-55904-8525
Brand:
FLIR
FLIR T660 IR Camera 640 x 480 Resolution / 30Hz with Standard 25° Lens and Optional 45° Lens (45°, f=13.1mm) with Case - 55904-8525
$37,350.00
Qty

Discontinued

Send This Page to a Friend

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us
Share this product:
FLIR T660 IR Camera 640 x 480 Resolution / 30Hz with Standard 25° Lens and Optional 45° Lens (45°, f=13.1mm) with Case - 55904-8525

FLIR T660 IR Camera 640 x 480 Resolution / 30Hz with Standard 25° Lens and Optional 45° Lens (45°, f=13.1mm) with...

$37,350.00

Discontinued


55904-8525 T660 IR Camera 640 x 480 Resolution/30Hz with Standard 25° Lens and Optional 45° Lens (45°, f=13.1mm) with Case by FLIR

You need troubleshooting tools that can help you find and report equipment problems fast. That's exactly what T-Series cameras do. They let you see invisible heat caused by electrical resistance and mechanical wear early enough to help you head off expensive downtime and potential danger.

Watch the video to learn why no other line of infrared cameras makes it easier to capture images, share findings, and get more done with time to spare. And be sure to ask for an onsite demonstration to see firsthand why T-Series is the ultimate way to unleash the power of FLIR.

Ultimate Resolution & Sensitivity

  • 3 superior thermal imaging choices including 640 x 480 native resolution
  • Up to 1.2 MP thermal resolution with UltraMax™ - a 4x improvement for finer detail and accuracy
  • MSX® enhancement that etches key visible details such as numbers, labels, etc. onto live, stored, and UltraMax thermal images for easier locating
  • Class-leading sensitivity as fine as <0.02°C for outstanding image quality and subtler thermal patterns
  • Temperature range calibrations up to 2,000°C for measuring the hottest targets

Optimum Ergonomics

  • Rotating optical block points up and down 120 degrees
  • Auto orientation orients onscreen data to portrait or landscape view
  • Fastest auto focus, manual control, and more for precision imaging

Fast Communication

  • FLIR Tools Mobile app connects cameras to mobile devices so you can stream live thermal video, take remote control, analyze stored images, and email findings quickly from the field.
  • FLIR MeterLink® Test & Measurement tools transmit readings directly to the camera, which stores the data with radiometric images as you capture them for use in reports.
  • FLIR Tools reporting software provides extra power to add more measurement tools to images, generate in-depth reports, update camera firmware, and more.
Thermal Resolution 307,200 (640 x 480)
Thermal Sensitivity <0.02°C @ 30°C
Accuracy +/-1°C (+/-1.8°F) or +/-1% of reading for limited temperature range; ±2°C (±3.6°F) or 2%, whichever is greater, at 25°C (77°F) nominal.
Temperature Range -40°F to 3,632°F (-40°C to 2,000°C)
Measurement Modes 6 presets: center spot; hot spot (box max); cold spot (box min); no measurements; 2 user presets
UltraMax Yes
Radiometric Recording CSQ to memory card
User Presets Yes
Frame Rate 30 Hz
Lens Choices 25°, 7° & 15° Tele, 45° & 80° Wide; Close up: 100 μm, 50 μm, 25 μm
Focus Manual, Automatic, and Continuous
Display Size 4.3"
Touchscreen Capacitive touch screen
Viewfinder Yes
Built-in Visual Camera 5 MP
Digital Zoom 8x
Compass Yes
GPS Yes
Sketch on IR/Visual Image Draw or add predefi ned stamps
