FLIR ETS320 Thermal Imaging System with 45 Lens, 320x240, -20C to +250C, with FLIR Thermal Studio - 63950-1001

FLIR ETS320 Thermal Imaging System with 45 Lens, 320x240, -20C to +250C, with FLIR Thermal Studio - 63950-1001

$2,499.00

Discontinued


63950-1001 ETS320 Thermal Imaging System with 45° Lens, 320x240, -20°C to +250°C, with FLIR Thermal Studio by FLIR

The FLIR ETS320 is an affordable solution for reducing test times and improving product design for electronic board and device evaluation. Whether the goal is R&D or product testing, heat can be an important indicator of how a system is functioning. The ETS320 helps engineers and test technicians collect accurate, reliable data in seconds and analyze it quickly.

Reduce Test Times

  • Sensitive enough to detect temperature shifts smaller than 0.06°C
  • Wide temperature range, from -20°C to 250°C, for quantifying heat generation and thermal dissipation
  • Measures small components down to 170 m per pixel spot size

Improve Product Design

  • 320 x 240 IR sensor offers 76,800 points of non-contact temperature measurement
  • True 45° field of view for broad initial scans to identify potential problems
  • Measurement accuracy of ±3°C promotes quality assurance and factory acceptance of PCBs

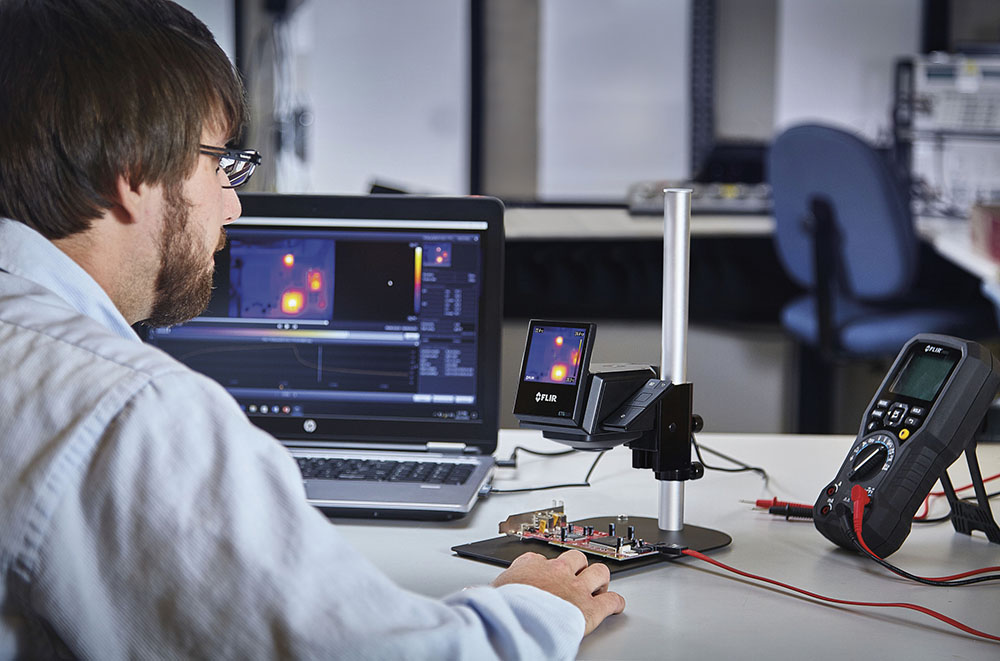

Designed for Laboratory Work

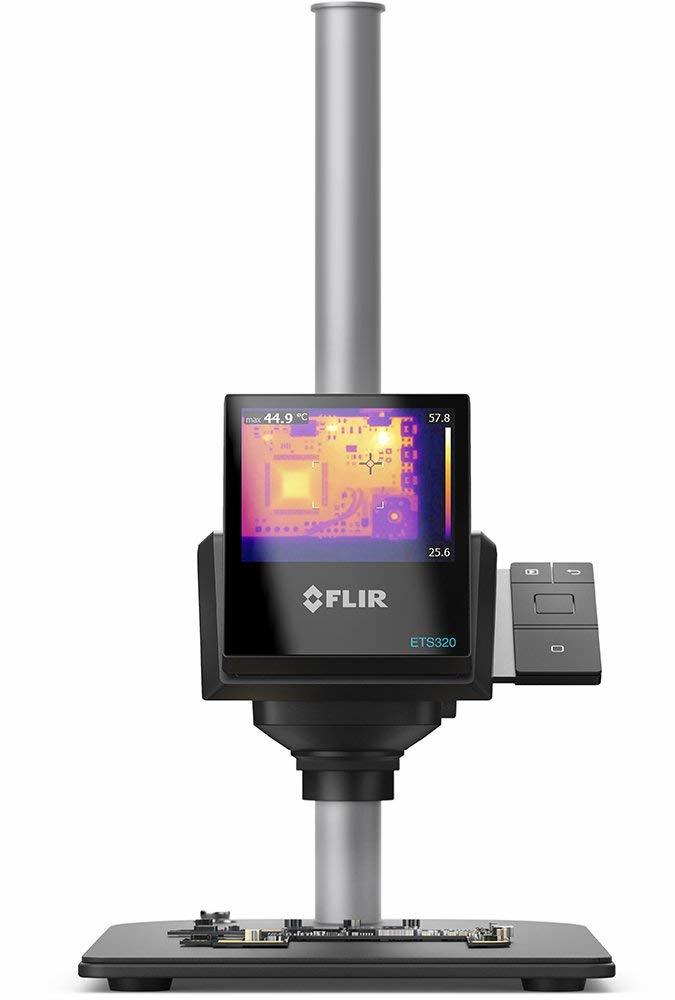

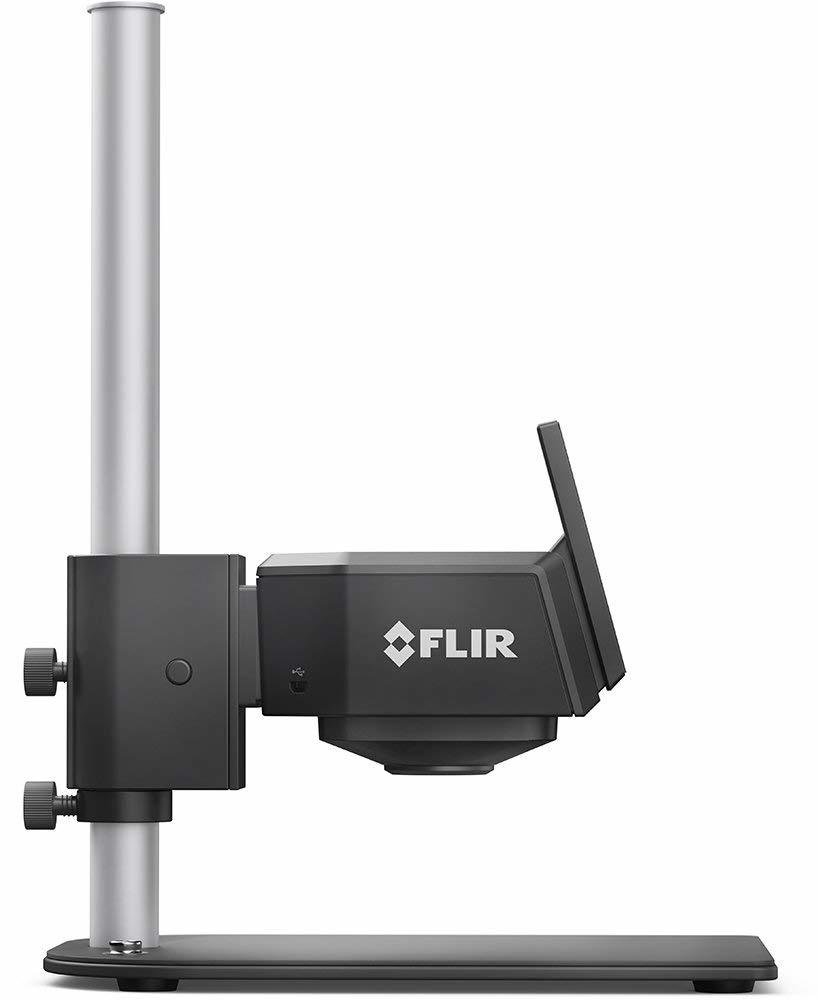

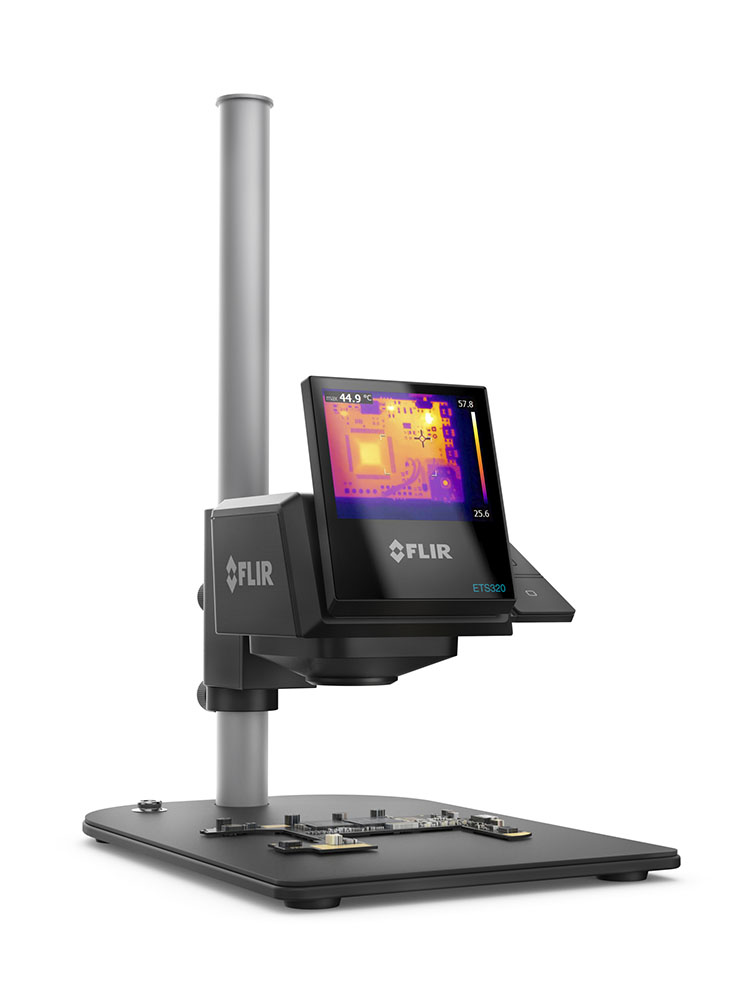

  • Pole mount included for fast and easy setup
  • Crisp 3" LCD display provides immediate thermal feedback
  • FLIR Tools+ software for instant analysis, including Time vs. Temperature measurement

Key Features:

  • 320 x 240 IR resolution (76,800 pixels)
  • Vibrant 3" LCD display
  • 45° field of view
  • ±3% measurement accuracy
  • Records standard radiometric JPEGs
  • FLIR Tools+ software provided
System Overview
IR Resolution 320 x 240 (76,800 pixels)
Detector Type Uncooled microbolometer
Spectral Range 7.5 - 13.0 μm
Thermal Sensitivity/NETD < 0.06°C
Field of View (FOV) 45° x 34°
Fixed Focus Distance 70 mm ± 10 mm
F-number 1.5
Spot Size @ Min. Focus 170 μm
Image Frequency 9 Hz
Measurement and Analysis
Object Temperature Range -20°C to 250°C (-4°F to 482°F)
Accuracy ±3°C or ±3% of reading for ambient temperature 10°C to 35°C (50°F to 95°F)
Spotmeter Center spot
Area Box with max/min
Emissivity Correction Variable from 0.1 to 1.0
Emissivity Table Table of pre-defined materials
Reflected Apparent Temperature Correction Automatic, based on input of reflected temperature
Storage of Images
Image File Formats Standard radiometric JPEG, 14-bit measurement data included
Video Streaming
Radiometric IR Video Streaming Full dynamic to PC (FLIR Tools/Tools+) using USB
Non-Radiometric IR Video Streaming Uncompressed colorized video using USB
Data Communication Interfaces
Interfaces USB Micro: data transfer to and from PC and Mac devices
Power System
Battery Type Li-ion battery, charged in camera
Battery Operating Time Approx. 4 hours at 25°C (77°F) ambient temperature and typical use
Charging Time 2.5 hrs to 90% capacity
Additional Data
Display 3 in, 320 x 240 pixel color LCD
Operating Temperature Range 10°C to 40°C (50°F to 104°F)
Storage Temperature Range -40°C to 70°C (-40°F to 158°F)
Directives and Regulations • Battery Directive 2006/66/EC
• EMI/EMC Directive 2014/30/EU
• WEEE Directive 2012/19/EC
• RoHS2 Directive 2011/65/EC
• FCC 47 CFR Part 15 Class B
• REACH Regulation EC 1907/2006
Encapsulation, Shock, Vibration • IP 40 (IEC 60529)
Camera Weight, Incl. Battery 0.575 kg (1.27 lbs)
Camera Size (L × W × H) 22 x 15 x 30 cm (8.7 x 5.9 x 11.8 in)
FLIR ETS320 Includes:
List of Contents Camera, mount, stand, power supply, USB cable, FLIR Tools+ software
