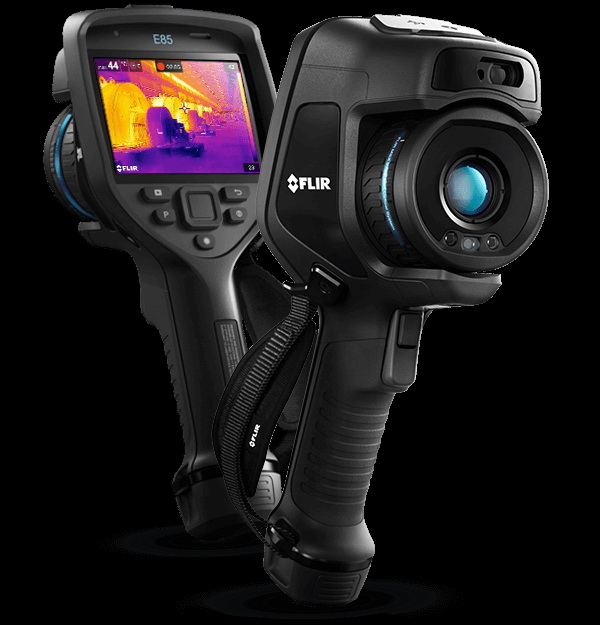

FLIR E85 Advanced Thermal Camera with MSX 384 x 288 Resolution / 30Hz with 42° Lens - 78503-0201-KIT
Item #:
FL-78503-0201-KIT
Brand:
FLIR
Share this product:
78503-0201-KIT E85 Advanced Thermal Camera with MSX 384 x 288 Resolution/30Hz with 42° Lens by FLIR
The FLIR E85 is packed with the high-performance features needed for fast, accurate detection of hot spots and hidden deficiencies. The 384 x 288 true native resolution offers more than 110,000 points of temperature measurement, while the laser distance meter provides data for measuring square area (m2 or ft2) on-screen.
LASER DISTANCE MEASUREMENT
The E85's laser distance meter not only provides the data needed for precision autofocusing, but also allows the user to measure and record distance-to-target and to determine the square area of a target on-screen.
INTELLIGENT AUTOCAL™ OPTICS
FLIR engineered all new lenses for the new Exx-Series that are truly interchangeable, so you can auto-calibrate additional optics to your camera, or share optics between cameras.
TOOLS THAT MAKE WORK EASIER
From the logical on-screen navigation and folder structure to Wi-Fi connectivity that makes uploading and sharing a breeze, the Exx-Series has the tools that make your work day easier.
FLIR EXX-SERIES FEATURES
- Quick, precise continuous focus
- Intuitive interface and navigation
- Clear view at any angle
- Superior MSX® scene enhancement
- High temperature calibration

IR Resolution | 384 x 288 (110,592 pixels) |
Object Temperature Range | -20°C to 120°C (-4°F to 248°F) 0°C to 650°C (32°F to 1200°F) Optional calibration: 300°C to 1000°C (572°F to 1830°F) |
Detector Type and Pitch | Uncooled microbolometer, 17 µm |
Thermal Sensitivity/NETD | <30mK |
Spectral Range | 7.5 - 14.0 μm |
Image Frequency | 30 Hz |
Imaging and Optical Data | |
Field of View (FOV) | 42° x 32° (10 mm lens), 24° x 18° (18 mm lens), 14° x 10° (29 mm lens) |
Focus Distance | Lens Dependent |
Focus Length | Lens Dependent |
F-Number | f/1.3 |
Lens Identification | Automatic |
Focus | Continuous Laser Distance Meter (LDM) One-shot laser distance meter (LDM) One-shot contrast Manual |
Digital Zoom | 1-4x continuous |
Image Presentation and Modes | |
Display | 4", 640 x 480 pixel touch screen LCD with auto-rotation |
Digital Camera | 5 MP, 53° x 41° FOV |
Color Palettes | Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC |
Image Modes | Infrared, visual, MSX®, Picture-in-Picture |
Picture-in-Picture | Resizable and movable |
MSX® | Embosses visual details on full resolution thermal image |
UltraMax™ | Image enhancement quadruples pixel count |
Measurement and Analysis | |
Spotmeter | 3 in live mode |
Area | 3 in live mode |
Accuracy | ±2°C (±3.6°F) or ±2% of reading for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F) |
Alarms | Moisture alarm, insulation alarm, measurement alarms |
Color Alarm (Isotherm) | Above/below/interval/condensation/insulation |
Laser Distance Measurement | Yes, on-screen |
Measurement Presets | No measurement, center spot, hot spot, cold spot, User Preset 1, User Preset 2 |
Compass, GPS | Yes; automatic GPS image tagging |
Image Storage | |
Storage Media | Removable SD card (8 GB) |
Image File Format | Standard JPEG with measurement data included |
Video Recording and Streaming | |
Radiometric IR Video Recording | Real-time radiometric recording (.csq) |
Non-Radiometric IR Video Recording / Visual Video Recording | H.264 to memory card |
Radiometric IR Video Streaming | Yes, over UVC or WiFi |
Non-Radiometric IR Video Streaming | H.264 or MPEG-4 over WiFi MJPEG over UVC or WiFi |
Visual Video Streaming | Yes |
Communication | |
Interfaces | USB 2.0, Bluetooth, WiFi, DisplayPort |
Video Out | DisplayPort over USB Type-C |
Power System | |
Battery Type | Li ion battery, charged in camera or on separate charger |
Battery Operating Time | Approx. 2.5 hours at 25°C (77°F) ambient temperature and typical use |
Additional Data | |
Operating Temperature Range | -15°C to 50°C (5°F to 122°F) |
Storage Temperature Range | -40°C to 70°C (-40°F to 158°F) |
Shock/Vibration/Encapsulation; Safety | 25 g / IEC 60068-2-27, 2 g / IEC 60068-2-6, IP 54 /IEC 60529; EN/UL/CSA/PSE 60950-1 |
Weight/Dimensions w/o Lens | 1 kg (2.2 lbs), 27.8 x 11.6 x 11.3 cm (11.0 x 4.6 x 4.4 in) |
