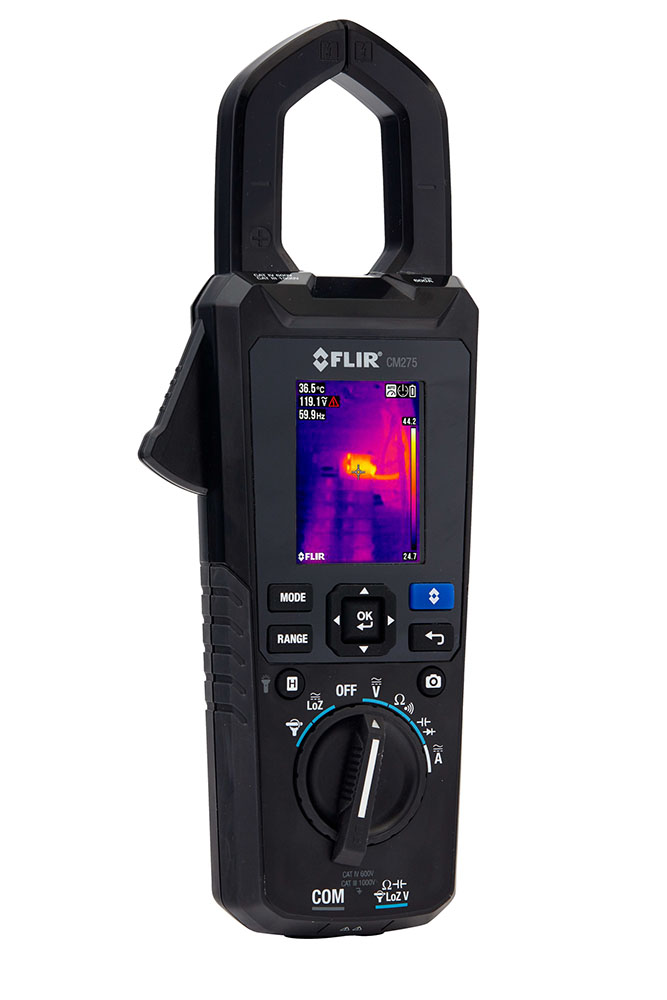

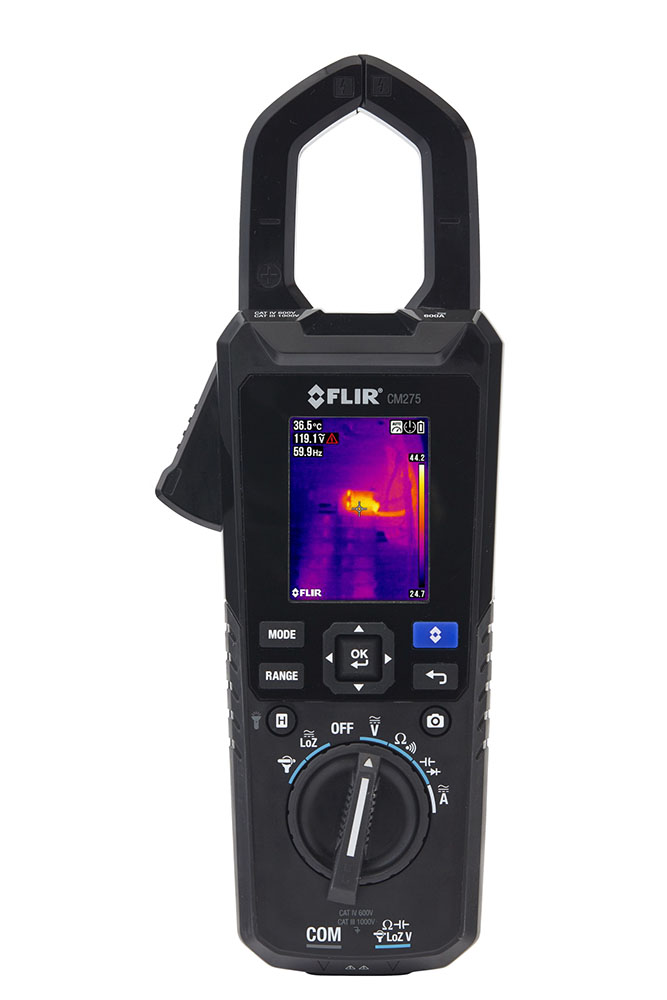

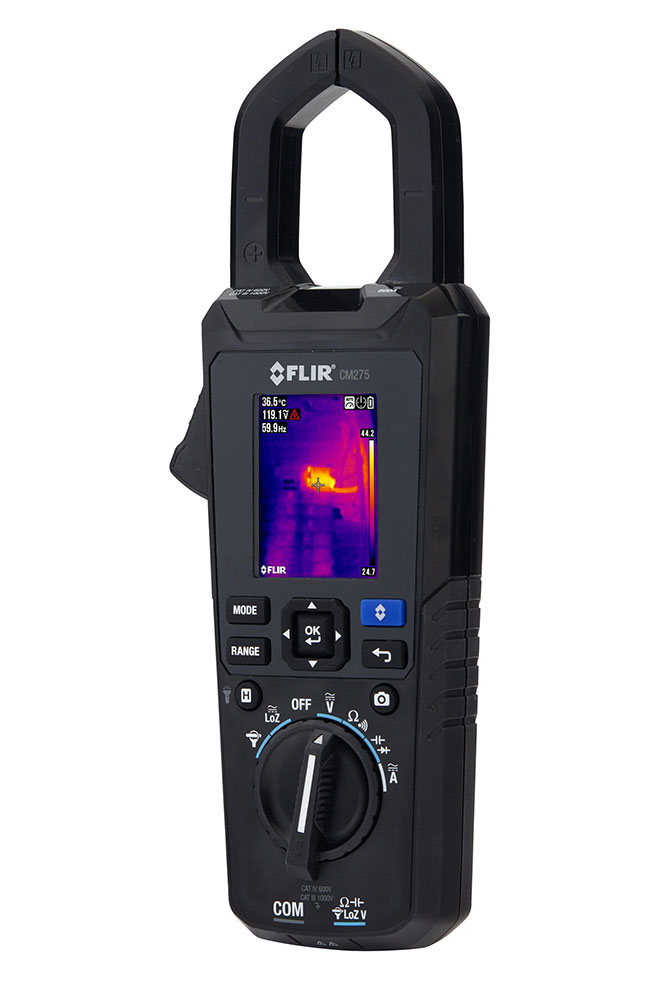

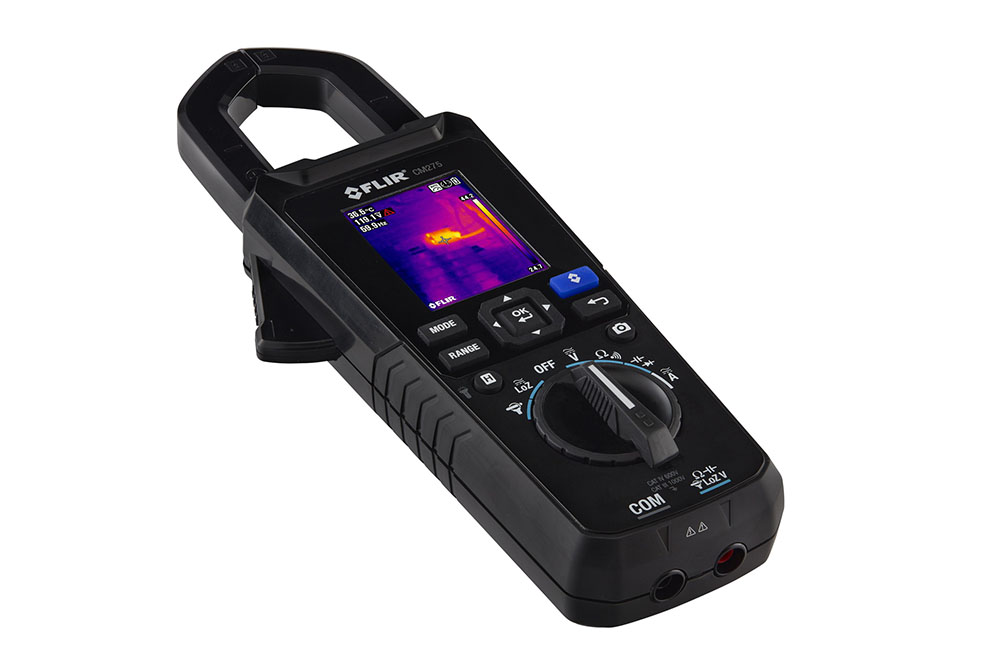

FLIR CM275 Industrial Thermal Imaging AC/DC Clamp Meter with Datalogging / Connectivity, IGM™ and NIST

Item #:
FL-CM275-NIST
Brand:
FLIR
$899.99
Qty

Discontinued

Send This Page to a Friend

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us
Share this product:
FLIR CM275 Industrial Thermal Imaging AC/DC Clamp Meter with Datalogging / Connectivity, IGM™ and NIST

FLIR CM275 Industrial Thermal Imaging AC/DC Clamp Meter with Datalogging / Connectivity, IGM™ and NIST

$899.99

Discontinued


CM275 Industrial Thermal Imaging AC/DC Clamp Meter with Datalogging / Connectivity, IGM™ and NIST by FLIR

The FLIR CM174 and CM275 clamp meters combine thermal imaging with electrical measurement into powerful inspection, troubleshooting, and diagnostic tools. Through Infrared Guided Measurement (IGM™), they provide a fast, reliable way to identify hot spots and overloaded circuits from a safe distance. Confirm your findings with the clamp meters' wide range of functions plus temperature readings. The FLIR CM275 also provides wireless connectivity for direct connection to the FLIR InSite™ professional workflow management app. Whether you choose the FLIR CM174 or CM275 clamp meter, inspecting and servicing plant equipment and facilities will become safer and more efficient.

TROUBLESHOOT FASTER & SAFER

  • Scan entire targets for electrical issues with up to 160 x 120 thermal resolution
  • Safely check for live connections using non-contact temperature measurement
  • Pinpoint exact hot spot locations with laser or crosshairs
  • Easily reach difficult, dark locations thanks to narrow jaw and built-in worklights

DIAGNOSE EFFICIENTLY

  • Diagnose complex systems with high and low voltage measurement capabilities
  • Use advanced electrical features including VFD mode, True RMS, and LoZ
  • Expand measurement capabilities to 3000 A AC with FLIR Flex Clamp accessories
  • Rely on the protection of CAT IV-600V, CAT III-1000V safety ratings

DOCUMENT & SHARE RESULTS

  • Store electrical measurements and thermal images internally, for later review
  • Wirelessly connect to FLIR Tools or FLIR InSite workflow management application for streamlined documentation and sharing
Thermal Imaging CM174 CM275
IR Resolution 80 x 60 (4,800 pixels) 160 x 120 (19,200 pixels)
Thermal Imaging Detector FLIR Lepton® microbolometer FLIR Lepton® microbolometer
Temperature Sensitivity 150 mK 150 mK
Emissivity Settings 4 Presets with custom adjustment 4 Presets with custom adjustment
Temperature Accuracy 3°C or 3% 3°C or 3%
Temperature Range -13°F to 302°F (-25°C to 150°C) 14°F to 302°F (-10°C to 150°C)
Field of View 50.0° x 38.6° 50.0° x 38°
Laser Pointer Yes Yes
Focus Fixed Fixed
Thermal Imaging Palette Iron, Rainbow, Grayscale Iron, Rainbow, Grayscale
Measurements-Both Models
True RMS Yes
Auto-ranging Yes, with manual range option
  Range Basic Accuracy
AC / DC Volts 1000 V ±1.0%
VFD AC Volts 1000 V ±1.0%
AC / DC LoZ V 1000 V ±1.0%
AC / DC Amps 600.0 A ±2.0%
VFD AC Amps 600.0 A ±2.0%
AC Inrush 600.0 A ±3.0%
Resistance 6.000 kΩ ±1.0%
Capacitance 1000 μF ±1.0%
Diode Test 1.5 V ±1.5%
Flex Input AC A 3000 A ±1.0%
Flex Input Frequency Counter 10.00 kHz ±0.1%
Additional Measurements
Continuity Check 600 Ω 30 Ω
Measuring Rate 3 samples per second 3 samples per second
Min/Max Yes Yes
General Information
Connectivity Bluetooth®
Data Logging & Storage 10 sets of 40K scalar measurements, 100 images
Jaw Opening 35 mm (1.38 in) 1250 MCM 35 mm (1.38 in) 1250 MCM
Auto Power Off Yes Yes
Worklights Yes Yes
Display Size 2.0 in TFT screen 2.4 in TFT screen
Battery 4 AAA batteries; optional TA04 Li-Poly rechargeable battery 3 AA batteries; optional TA04 Li-Poly rechargeable battery
Drop Test 2 m 2 m
Safety Category Rating CAT III-1000V, CAT IV-600V CAT III-1000V, CAT IV-600V
Size (H x W x L) 43 x 89 x 241 mm (1.7 x 3.5 x 9.5 in) 48.5 x 97 x 255 mm (1.9 x 3.8 x 10 in)
Weight 426 g (15 oz) 460 g (16 oz)
Warranty 10 year on product and detector 10 year on product and detector
Box Contents

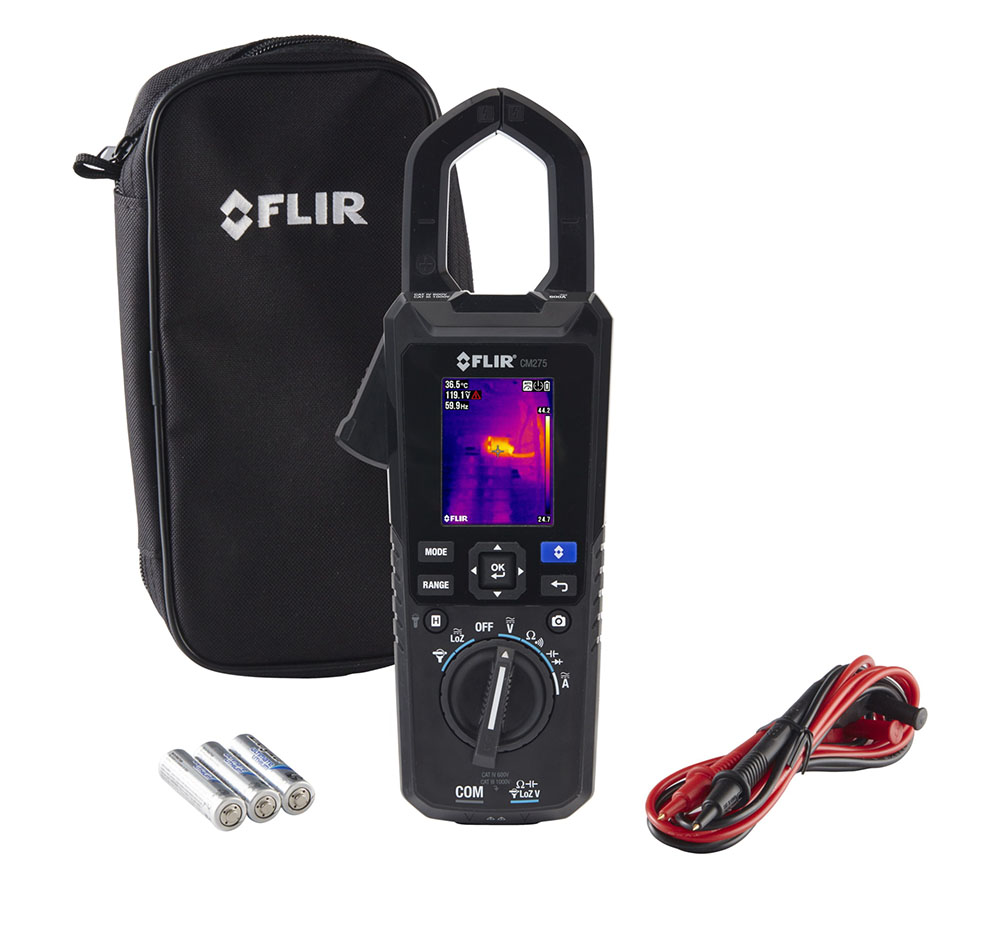

  Clamp Meter, batteries, silicone test leads, soft carrying case
