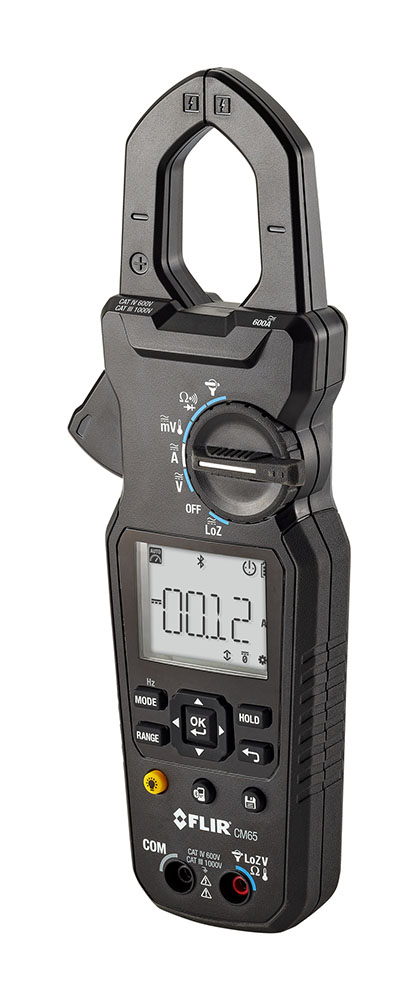

FLIR CM65 True RMS 600A Solar Clamp Meter with METERLiNK

Item #:
FL-CM65
Brand:
FLIR
FLIR CM65 True RMS 600A Solar Clamp Meter with METERLiNK
$399.99
Qty

Discontinued

Send This Page to a Friend

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us
Share this product:
FLIR CM65 True RMS 600A Solar Clamp Meter with METERLiNK

FLIR CM65 True RMS 600A Solar Clamp Meter with METERLiNK

$399.99

Discontinued


CM65 True RMS 600A Solar Clamp Meter with METERLiNK by FLIR

The CM65 is a rugged clamp meter designed to meet the challenges of solar installation, maintenance, and repair. This clamp meter comes with quick-connect MC4 test leads that improve the accuracy and safety of DC voltage measurements on solar panel strings and inverters. With the CM65, you can validate AC output and inverter efficiency and then store readings to the internal memory. Share data wirelessly via METERLiNK® or monitor measurements live on a smartphone running the FLIR Tools® mobile app. Photovoltaic (PV) installers can trust the CM65 as their go-to tool for accelerating and simplifying photovoltaic panel testing on new and existing solar panels.

ACCURACY FOR ELECTRICAL AND SOLAR APPLICATIONS

  • Trust AC voltage and current measurements from inverters and mains are accurate with True RMS
  • Eliminate errors from residual ghost voltage using LoZ (low impedance) mode
  • Get sharp ±1.5% accuracy when taking AC and DC current readings
  • Capture the smallest voltage fluctuations when calibrating equipment using the CM65's millivolt function

TOOLS YOU NEED TO WORK FASTER & SMARTER

  • Reduce the time needed for live/dead testing with included MC4 test leads
  • Gain quick insights with Data Hold, Min/Max readings, and relative mode to zero the meter
  • Troubleshoot string connections and components with a Continuity test mode
  • Measure resistance, frequency and temperature
  • Easily clamp around wires with the generous jaw (30 mm) and ergonomic design

THE RIGHT TECH TO SIMPLIFY YOUR WORKFLOW

  • Take measurements, document results, and then share them on the go
  • Identify trends and anomalies by data logging directly to the internal memory
  • View readings right on your mobile device using the CM65's METERLiNK® and the FLIR Tools® Mobile app on the roof, on the ground, or anywhere on a job site
Basic measurement capabilities
Safety category rating CAT IV-600 V, CAT III-1000 V
True RMS Yes
Features
Data hold Yes
Min/Max Yes
Relative DC zero Yes
Loz mode (auto range) Yes
VFD Yes
Jaw size 30 mm (1.1 in) max
Measurement and analysis Range & resolution Basic accuracy
AC current 60.00, 600.0 A ±1.5%
DC current 60.00, 600.0 A ±1.5%
AC voltage 60.00, 600.0, 1000 V ±0.7%
AC voltage (digital low pass filter - VFD) 600.0, 1000 V ±1%
LoZ mode AC voltage 600.0, 1000 V ±2.0%
AC voltage (mV mode) 60.00, 600.0 mV ±1.0%
DC voltage 60.00, 600.0, 1000 V ±1%
LoZ mode DC voltage 60.00, 600.0, 1000 V ±2.0%
DCV (mV mode) 60.00, 600.0 mV ±1%
Frequency 50.00 Hz to 400.0 Hz (ACA)
10.00 Hz to 400.0 Hz (ACV)
10.00 Hz to 500.0 Hz (ACV mV)
±1%
±1%
±1%
Resistance 600.0 k, 6.000 kΩ ±1.0%
Diode test 3.000 V ±0.9%
Temperature -40°C to 400°C (-40°F to 752°F) ±1%
Continuity < 30 Ω, 2 kHz buzzer
Wireless connectivity
METERLiNK® Yes
Display
Screen 3-5 /6 digits, 6000 counts
Backlight Yes
Auto power off 10 minutes (default)
Sampling rate 5 readings / second
Overload indication "OL" or "-OL"
Additional features
Data Logging and storage Automatically log readings every 10 seconds. Data log files can be transferred via USB port.
Memory 8 GB internal memory
Operating temperature 0°C to 60°C (32°F to 140°F)
Operating relative humidity Maximum relative humidity 80% for temperature up to 31°C (88°F) decreasing linearly to 50% relative humidity at 50°C (122°F)
Storage temperature -30°C to 60°C (-22°F to 140°F) <80% RH (with battery removed)
Drop test 1 m (3.3 ft)
IP rating IP40
Battery type 3× AA
Size (L × W × H) 251 × 80 × 40 mm (9.8 × 3.1 × 1.6 in)
Weight 300 g (10.6 oz)
Box contents Test lead set, MC4 test leads, quick start guide, manual, soft carrying pouch, Type-K thermocouple
