FLIR Aluminum Large Format IR Inspection Window 24in - IRW-24PC

Item #:
FL-IRW-24PC
Brand:
FLIR
$849.99
Qty

Discontinued

Send This Page to a Friend

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us
Share this product:
FLIR Aluminum Large Format IR Inspection Window 24in - IRW-24PC

FLIR Aluminum Large Format IR Inspection Window 24in - IRW-24PC

$849.99

Discontinued

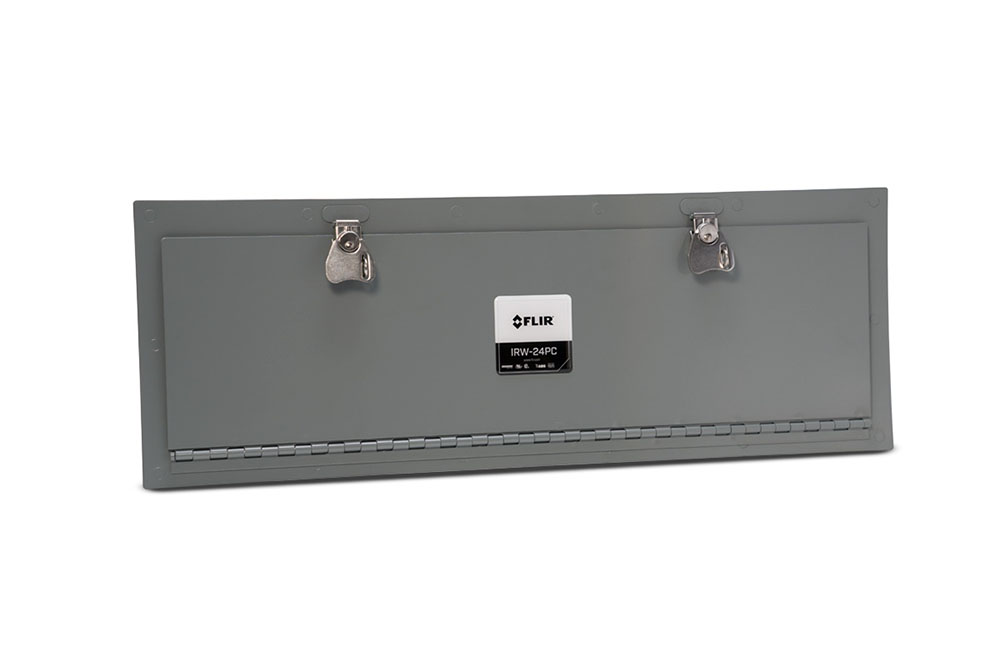

IRW-24PC Aluminum Large Format IR Inspection Window 24in by FLIR

The FLIR IRW-xPC and IRW-xPS joined the existing FLIR IR Window family to help you inspect more efficiently, make inaccessible components accessible, and save money by preventing unplanned downtime. The rectangular polymer windows are impact resistant and provide the largest viewing area available to monitor completely undisturbed assets inside energized electrical equipment. IRW-xPC and xPS are durable and stable in harsh environments, making them suitable for most industrial settings as well as for shipboard use. If you're looking for a cost-effective solution for industrial installations, FLIR has you covered.

WORK SAFELY AND EFFICIENTLY

  • Inspect energized equipment without opening the panel door
  • Meet IP2x standard for safe maximum hole size and fail-safe design
  • Tested and certified to the highest industry standards
  • IRW-xPC recommended for indoor applications / IRW-xPS recommended for outdoor applications

DURABLE AND RELIABLE

  • Durable with fully impact-resistant optics
  • Maintains fixed and stable transmission to ensure that the temperature data collected is accurate and reliable
  • Proven compatibility with acids, alkalis, UV, moisture, humidity, vibration, and high frequency noise

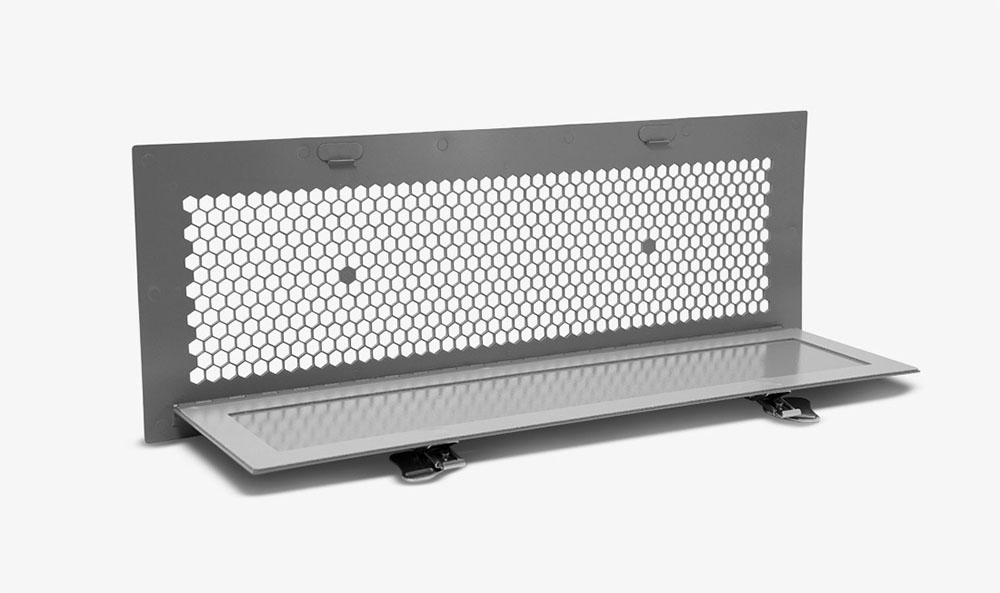

  • Protect viewing panes from flying debris, dust, or impact with the lockable window covers

SEE MORE

  • Get an unparalleled field of view with the large, rectangular viewing area
  • Made with an impact-resistive polymer lens material that allows for large window designs
  • Monitor using inspection tools operating in the visual, UV, and across the IR spectrum
Part Number
IRW-6PC
IRW-12PC
IRW-24PC
IRW-6PS
IRW-12PS
IRW-24PS
Overall Height
21.8 cm (8.6 in)
20.6 cm (8.1 in)
21.8 cm (8.6 in)
21.8 cm (8.6 in)
20.6 cm (8.1 in)
21.8 cm (8.6 in)
Overall Width
16 cm (6.3 in)
30.5 cm (12.0 in)
61 cm (24.0 in)
16 cm (6.3 in)
30.5 cm (12.0 in)
61 cm (24.0 in)
Optic Specifications
Aperture Overall Height
15 cm (5.9 in)
12.7 cm (5.0 in)
15 cm (5.9 in)
15 cm (5.9 in)
12.7 cm (5.0 in)
15 cm (5.9 in)
Aperture Overall Width
9.1 cm (3.6 in)
23.6 cm (9.3 in)
53 cm (20.9 in)
9.1 cm (3.6 in)
23.6 cm (9.3 in)
53 cm (20.9 in)
Optic Temperature Range
-40°C to 325°C (-40°F to 617°F)
Materials and Ratings
IP/ NEMA Environment Type
IP65 / NEMA 4x
IP67 / NEMA 6
Maximum Operating Temperature
-40°C to 200°C (-40°F to 392°F)
-40°C to 273°C (-40°F to 523°F)
Body Material
Aluminum
Powder Coated Stainless Steel
Optic Reinforced Grill Material
Aluminum Reinforcing Grill (IP22/ IP2x Standard)
Stainless Steel Reinforcing Grill (IP22/ IP2x Standard)
Optic Material
UL 746 compliant, visual, UV and IR transmissive polymer; -40°C to 325°C ( -40°F to 617°F)
Gasket Material
UL 94 5VA TPE; -40°C to 273°C (-40°F to 523°F)
Hardware Material
316 stainless steel
Voltage Range
Any
Automatically Grounded
Yes
Inspection Capabilities and Applications
Midwave IR and Longwave IR; Ultraviolet (UV); Visual Inspection; Medium/High Voltage Applications
Yes
General Information
Warranties
Limited Lifetime
Certifications
Certified by UL (USA) & cUL (Canada) to the following standards: 50V, 50E, 756C: Impact and Flammability, 1558: Impact and Load Resistance, 508A: ANSI 508A
Certified by UL (USA) & cUL (Canada) to the following standards: 50V, 50E, 756C: Impact and Flammability, 746C & 746A-2012, 1558: Impact and Load Resistance, 508A: ANSI 508A
CSA C22.2 No. 14-13
CSA C22.2 No. 14-13, C22.2 No. 14-10, C22.2 No. 94-M91, C22.2 No. 94.1-07, C22.2 No. 94.2-07
IP65 / NEMA 4x
IP67 / NEMA 6
Lloyds of London Type Approval
American Bureau of Shipping (ABS)
DNV (Det Norske Veritas) P261.1E Maritime, Vessel and Offshore Applications
IEEE C37 20.2.a.3.6: Impact and Load
IEEE C37 20.7 Type 2B, C37 20.2.a.3.6: Impact and Load
BSI Quality ISO 9001 Certified System
IEC 62271-200, 60262271-200,60298 Appendix A, 60068-2-6:2007, 60068-2-3, 60068-2-78:2012
