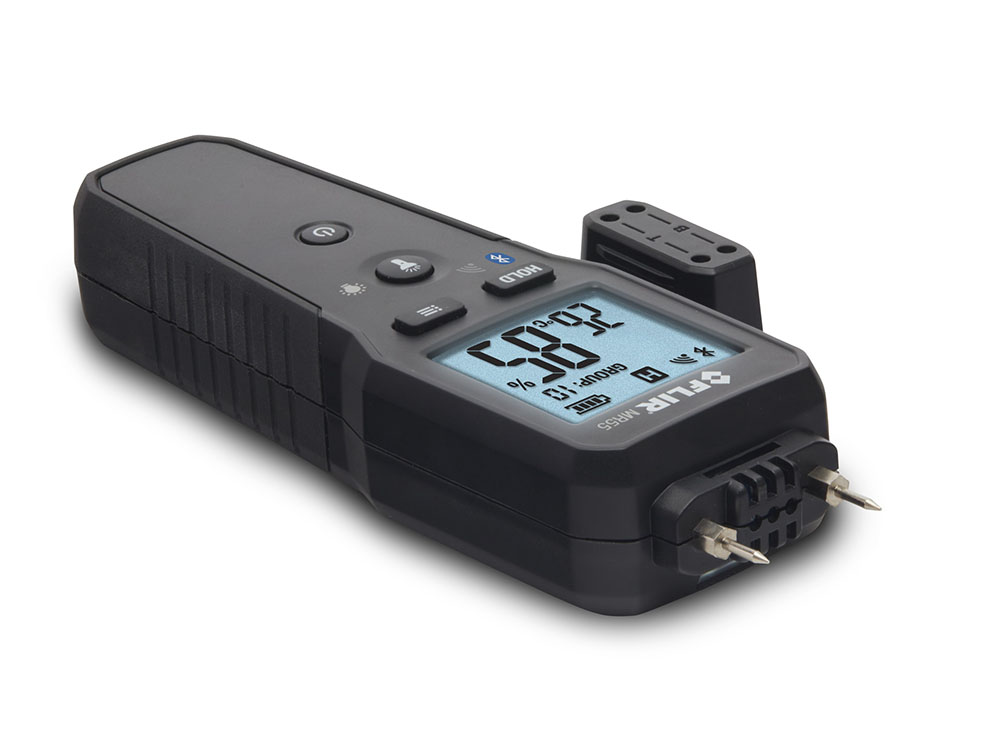

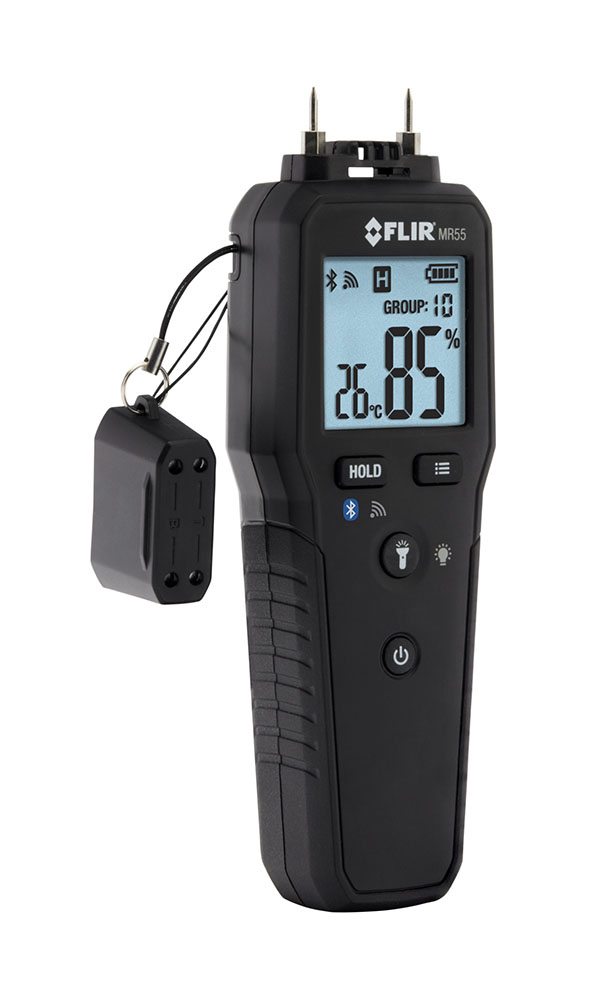

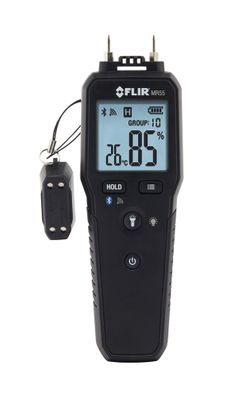

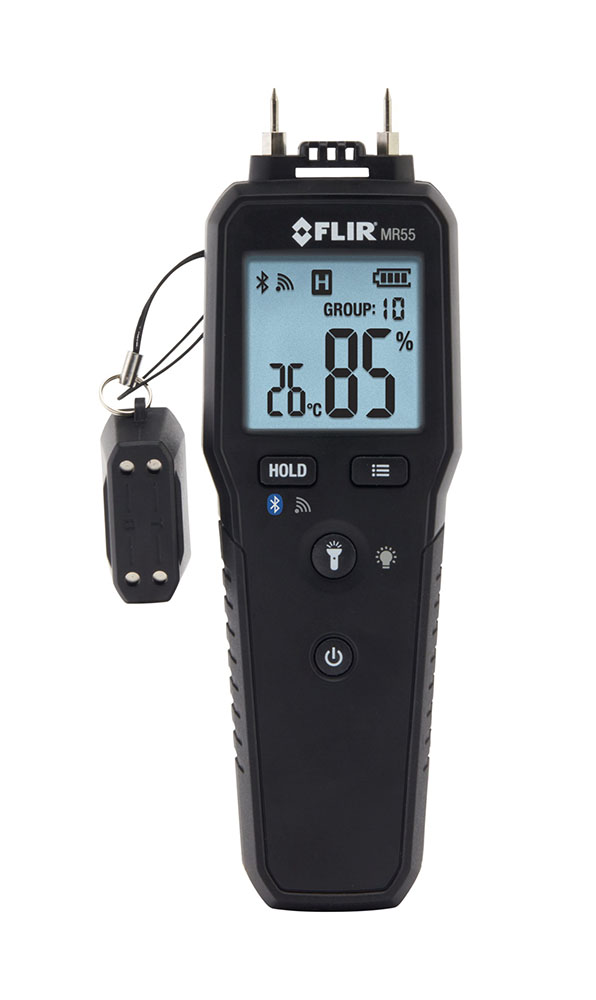

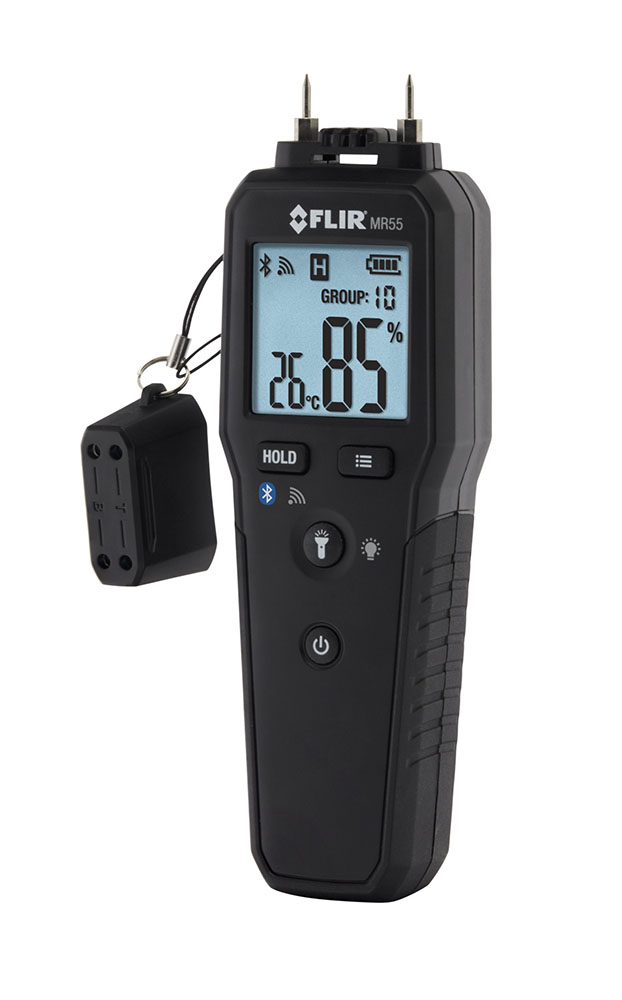

MR55 Pin Moisture Meter with Bluetooth by FLIR

The MR55 is an affordable pin-based meter for professionals in moisture remediation, pest control, home or building inspection, and floor installation. It is a high-quality, reliable, and easy-to-use moisturemeasurement tool. Wireless connectivity allows the user to view data on a mobile device from the FLIR Tools® Mobile app. Thanks to a built-in library of 11 material groups, users can tune the meter to the appropriate test material and improve measurement accuracy. This library is easy to access on the FLIR.com website by scanning a QR code on the back of the meter with a mobile device. The MR55 is a reliable standalone meter—or a useful accessory to pair with a FLIR thermal imager.

TAKE ACCURATE MEASUREMENTS

  • Pin moisture measurement automatically compensates for ambient temperature
  • Improve accuracy by tuning the meter to the appropriate test material via builtin library of 11 material groups, including timbers, drywall, and concrete
  • Measure ambient temperature and relative humidity

INSPECT ANYWHERE WITH EASE

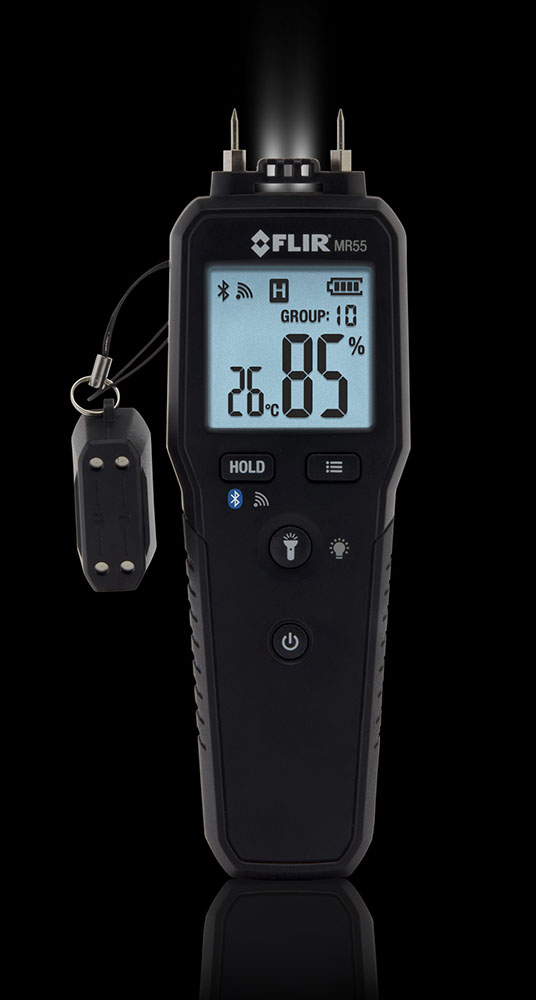

  • Work in dim lighting with the backlit display and bright worklight
  • Freeze measurements you see on the screen with the 'data hold' feature
  • Quickly look up the correct material group on the FLIR website by using your mobile device to scan a QR code on the back of the meter
  • Wirelessly connect the meter to FLIR Tools Mobile to view readings from a mobile device

COMPLETE YOUR WORK WITHOUT INTERRUPTION

  • Verify correct operation of the meter before starting work using the calibration test feature
  • Avoid prolonged work delays thanks to easily-replaceable electrode pins and standard AA batteries
  • Stay current with the latest product enhancements by upgrading firmware as needed via micro USB port (located in the battery compartment)
Moisture Measurement Range Accuracy
Moisture in Wood 7 - 29% ±2% MC
Group 1 - 9 30 - 99% Reference Only
Moisture in Building 1 - 99% (Group 10) Reference Only
Materials (Group 10 and 11) 1 - 35% (Group 11)
Environmental Measurement Range Accuracy
Ambient Temperature 0°C to 60°C (32°F to 140°F) ±1°C (2°F)
Ambient Relative Humidity 0 - 20% ±5%
20 - 80% ±3.5%
±4%
±2%
General Information
Connectivity Bluetooth BLE
Communications Protocol: METERLiNK®
Worklight White LED
Display Backlit, multifunction LCD
Electrode Pins Integrated, replaceable, 10 mm (0.4 in)
Measurement Principle Electrical resistance using pins
Warranty Limited 3 years
Battery Type (2) × 1.5 V AA
Battery Life Typical 70 hours without worklight
Battery Status Indicator 4-bar battery icon (100% to empty)
Auto Power Off (APO) After 20 minutes
Operating RH/ Temperature 85% Relative Humidity maximum / 0°C to 60°C (32°F to 140°F)
IP Rating IP40
Safety Compliance CE, RCM, FCC/IC
Drop Test 2 m (6.6 ft)
Housing Material Impact-resistant plastic
Weight 160 g (5.6 oz) battery excluded
Dimensions 188 × 58 × 33 mm (7.4 × 2.3 × 1.3 in)
