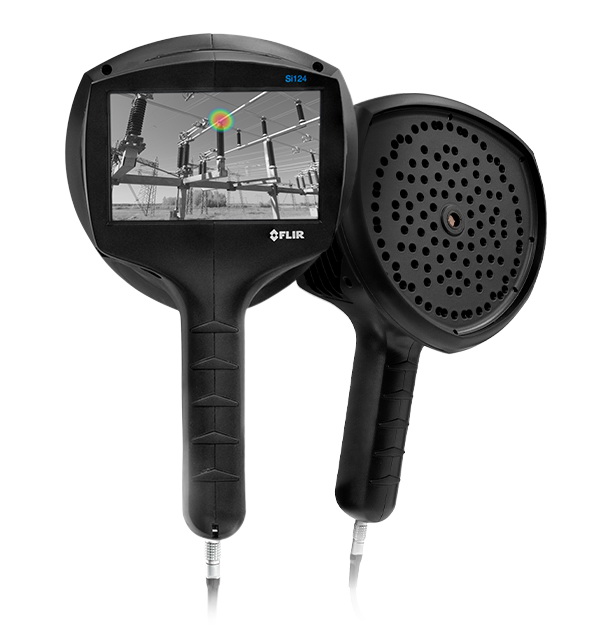

T911970 Si124 Industrial Ultrasound Imaging Camera by FLIR

The FLIR Si124 acoustic imaging camera can help you locate pressurized leaks in compressed air systems or detect partial discharge from high-voltage electrical systems. This lightweight, one-handed solution can be used to identify issues up to 10 times faster than with traditional methods. Built with 124 microphones, the Si124 produces a precise acoustic image that visually displays ultrasonic information, even in loud industrial environments. The acoustic image is transposed in real time on top of a digital camera picture, which allows you to accurately pinpoint the source of the sound. Equipped with the FLIR Acoustic Camera Viewer cloud service, this smart tool automatically saves images to the cloud after they're captured. Then you can access stored files and separate sound sources for deeper analysis and classification of problems. Through a regular maintenance routine, the FLIR Si124 can help facilities save money on utility bills and delay the expense of installing new compressors.

FIND PROBLEMS FASTER

  • Detect compressed air leaks, partial discharge, and corona up to 10 times faster with sound imaging vs. traditional methods

REDUCE COSTS, IMPROVE RELIABILITY

  • Minimize excess utility costs, equipment failures, and downtime by ensuring proper air pressure to pneumatic equipment and locating partial discharge or corona precisely

INSPECT EASILY

  • Classify leak severity and partial discharge type in real time with this lightweight, smart tool that you can operate with one hand

Acoustic specifications Si124
Acoustic measurement 124 low-noise MEMS microphones, real-time sound visualization
Sensitivity, accuracy <0 dB
Dynamic range >120 dB
Bandwidth 2 kHz to 31 kHz, adjustable range
Distance From 0.3 m (1.0 ft) up to 100 m (328 ft)
Leak rate In typical industrial environment:
• >0.032 l/min @ 3 bar from 3 m (9.8 ft)
• >0.05 l/min @ 3 bar from 10 m (32.8 ft)
Absolute minimum detection in quiet environment: 0.016 l/min @ 1.2 bar from 0.3 m (1.0 ft)
User interface
Display Size: 5 in, 800 × 480
Color: 24 bit RGB
Brightness: 1000 cd/m2 (adjustable)
Input device Resistive touchscreen
Power On indicator Red LED
Video image resolution 1640 × 1234
Video frame rate 25 fps
Acoustic image frame rate 30 fps
Zoom 2x digital zoom
Communication and data storage
Wireless data transfer Wi-Fi 2.4 GHz and 5 GHz IEEE 802.11.b/g/n/ac wireless LAN
Storage, internal 32 GB SD card, non-removable
Storage, external 8 GB USB mass storage, provided with device
Power supply
Nominal input voltage 12 V
Max input: 15 V 2 A
External battery LiFePO 12 V 7 Ah, 84 Wh
Usage: 7 h (depends on ambient conditions)
Charge time: 4 to 6 h
Battery charger Input: 100-240 V ~ 50/60Hz 1.5 A
Max output: 13.8 V, 4.0 A
Internal battery (only for camera backup use) Li-Ion 6 Wh
Environmental
Operating and storage temperature range Recommended -10°C to 50°C (14°F to 122°F)
Operating and storage humidity Recommended 0 to 90%
Physical data
Camera size 273 × 170 × 125 mm (10.7 × 6.7 × 4.9 in)
Camera weight Camera: 980 g (2.2 lb)
Battery size 90 × 145 × 65 mm (3.5 × 5.7 × 2.6 in)
Battery weight 985 g (2.2 lb)
Total weight, incl. all accessories 2.9 kg (6.4 lb)
Battery cord length 0.9 m (3.0 ft), extended 2 m (6.6 ft)
