FLIR VP50 Non-Contact Voltage Detector and Flashlight, 90-1000VAC - VP50-2

FLIR VP50 Non-Contact Voltage Detector and Flashlight, 90-1000VAC - VP50-2



VP50-2 Non-Contact Voltage Detector and Flashlight, 90-1000VAC by FLIR

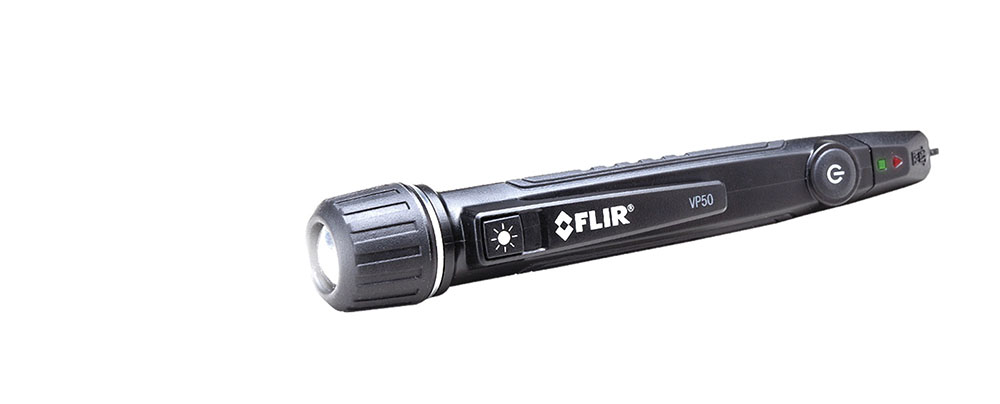

The FLIR VP50-2 is a durable, CAT IV-rated non-contact voltage detector featuring light, vibration, and beeper feedback alarms and a powerful LED flashlight. Use the VP50-2 to reliably check whether an AC circuit is live before beginning work; detect voltage on exposed conducting parts or through insulation; identify live wires within switchboxes, switches, and outlets; or trace live wires and map circuits. With an ergonomic and drop-tested design, the FLIR VP50-2 is the right choice for professionals performing field troubleshooting and verification of electrical installations within residential, commercial, and industrial buildings.


  • Detect voltage in electrical systems in both large industrial facilities and residential low-voltage installations

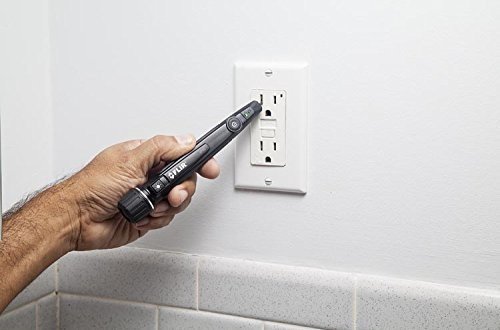

  • Reliably test for voltage in the latest safety outlets
  • Never miss voltage presence with tactile vibration, sound, and LED alarms—even in dark or noisy areas
  • Durable to withstand a 3 m (9.8 ft) drop


  • Avoid touching live wires with non-contact voltage (NCV) technology
  • Reduce risk of dropping the VP50-2 with double molded slip-resistant grip and anti-roll case
  • Place the sensor closer to electrical sources with the low-profile probe tip

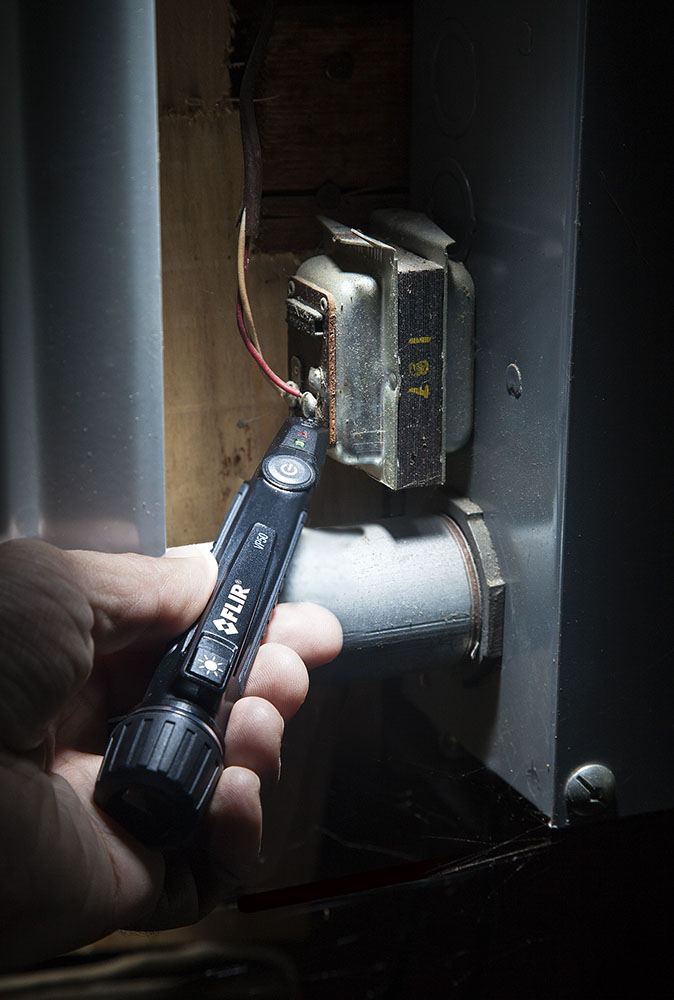

  • See target area clearly in poor lighting conditions with the bright flashlight and tip light
  • Eliminate interruption from a dead battery with the low-battery indication feature
  • Maximize battery life with the auto power off feature
AC Voltage Range (default, solid green light) 90 to 1000 V AC
High-Sensitivity Mode (solid amber light) 24 to 1000 V AC
Frequency Range 45 to 65 Hz
Meter Data
Sound Alert Yes
Flashing LED Alert Yes
Vibration Alert Yes
Flashlight Yes
Tip Light Yes
Category Rating CAT IV 1000 V
General Information
Warranty Limited 3-year
Certifications C-UL-US
Power System
Power Requirements 2 × AAA (LR03) alkaline batteries
Battery Life ~5 hours continuous (flashlight off)
Low Battery Voltage Status LED flashes amber color
Auto Power Off After 3 minutes of inactivity
Environmental Data
Drop Test 3 m (9.8 ft)
Operating Ambient Temperatures -10 to 50°C (14 to 122°F)
Storage Temperature -20 to 60°C (-4 to 140°F)
Physical Data
Weight 59 g (2.1 oz) including batteries
Dimensions (L × W × H) 158.5 × 26 × 29 mm (6.24 × 1.02 × 1.14 in)
