Fieldpiece Clamp Meter-Wireless - SC460

Item #:

FP-SC460

Brand:

Fieldpiece

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us

Share this product:

Description

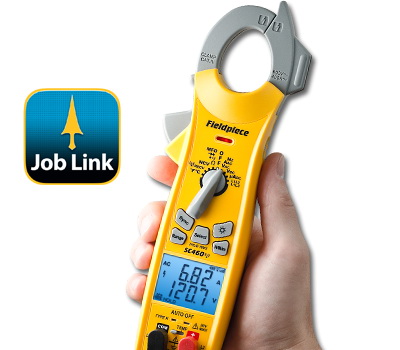

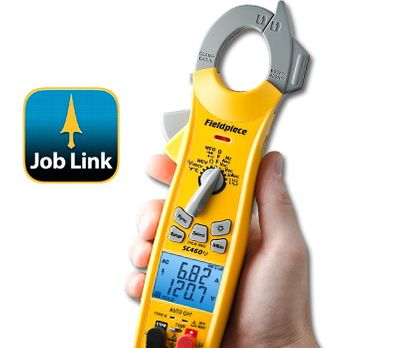

SC460 Clamp Meter-Wireless by Fieldpiece

The new SC460 and SC660 wireless clamp meters team up with the Job Link system to provide even more in-depth testing, diagnostics and reports.

Clamp readings are wirelessly sent to the Job Link System via the long range JL2 Transmitter. Email reports and store them in the cloud for future reference.

Plus, now you can document both power and system efficiency (SEER and EER) in Job Link with the wireless clamps and wireless psychrometer.

3-Phase Rotation Testing with Two Leads
Record Motor Start up with Inrush Current
Non-contact Voltage and One Handed Testing
Backlit Display
Strong Magnetic Hanger
Swivel-head, Lead Storage, and Jaw Light (SC660)
DC Amps (SC660)
Dual Temp for Delta-T Calculations (SC660)

Specifications

Function	Range	Best Accuracy/Best Resolution
Wireless	1 to 75ft
Volts AC	600	1.2%±10 / 0.0001
Amps AC	400	2.0%±10 / 0.01
Volts DC	600	0.5%±5 / 0.0001
μAmps DC	1000	1.0%±5 / 0.1
Ohms	50M	1.0%±5 / 0.01
Microfarads	10000	3%±5 / 0.00001
Hz (clamp)	10 to 400	0.1%±5 / 0.1
°F	-58°F to 2372°F	±1°F* / 0.1
Phase Rot.	80±5 to 600VAC	1.5%±10 / 0.1
Battery	9V, 100 hrs Typical Alkaline (no backlight or wireless)
