Fieldpiece Dual Temperature Meter - ST4

Item #:

FP-ST4

Brand:

Fieldpiece

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us

Share this product:

Description

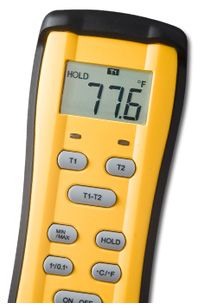

ST4 Dual Temperature Meter by Fieldpiece

The Fieldpiece Dual-Temperature Meter, model ST4, measures two temperatures simultaneously using the included k-type, wrap tab beaded thermocouples. The technology inside the ST4 provides superior temperature compensation in rapidly changing environments commonly found while performing field service. Use the ST4 to find Delta T and just about any temperature split you want to measure. Displays T1, T2 and T1-T2 in big numbers on the LCD screen. Features two front face calibration pots and comes in our clear front case with magnetic hanger model ANC6. Use with our optional ATWB1 wet bulb thermocouple to help you find target superheat or with our pipe clamp T/Cs to check for blocked dryer filters.

Designed for HVAC/R, the Dual-Temperature Meter, model ST4, measures two temperatures and calculates the difference in English or metric units. It offers technicians all the benefits of a digital thermometer in a heavy duty design.

Read T1, T2, or T1-T2
Rugged rubber boot
Min/Max and Hold
LED indicates disengaged probe
Great temperature compensation for fast changing environments
Select °F or °C
2 k-type thermocouples included
Clear front case with magnetic hanger included
Accepts any K-type thermocouple
Resolution of 0.1 degree F
Easy field calibration

Because of the technology employed inside the ST4, it offers superior temperature compensation in rapidly changing environments commonly found while performing field service. Meters with thermocouple adapters often take a long time to stabilize due to transfer of ambient heat. The ST4, as with all of our k-type thermometers and meters, stabilizes rapidly so you can take it from the rooftop to the walk-in and get more accurate readings faster than the competition. Plus it includes the rugged rubber boot and the hanging bag for easy, hands-free testing, while you're working on the rest of your call.

Includes

Dual-Temperature Accessory - ATH4
(2) K-type Wrap Tab Bead Thermocouples - ATB1
(2) Velcro Tie- wraps (not pictured)
Mini-calibration Screwdriver
9V Battery (installed)
Operator's Manual

Specifications

Measurement range	-58 to 2000ºF (-50 to 1300ºC)
Resolution	0.1º
Temperature coefficient	Temperature coefficient
System accuracy after field calibration	±1ºF @ 30 to 120ºF with field calibration ±0.5ºC @ 0 to 50ºC with field calibration
Meter accuracy	Accuracies for any of the given ranges below are specified for operating temperatures between 64 to 82ºF (18 to 28ºC), for 1 year, not including thermocouple error. ±4ºF @ -58 to 32ºF ±(0.3% rdg + 2ºF) @ 32 to 1100ºF ±(0.5% rdg + 2ºF) @ 1100 to 2000ºF ±2ºC @ -50 to 0ºC ±(0.3% rdg + 1ºF) @ -50 to 600ºC ±(0.5% rdg + 1ºF) @ 600 to 1300ºC
Measurement rate	2.5 readings/second
Battery	Single standard 9-volt battery, NEDA 1604, JIS 006P, IEC 6F22.
Battery life	100 hours- carbon zinc battery. 200 hours- alkaline battery. Replace when battery symbol is displayed.
Operating environment	32 to 122ºF (0 to 50°C) <70% RH
Storage environment	8 to 140ºF (-22 to 60°C) <80% RH with battery removed from meter
Display	3.5 digits LCD, 2000 count
Overrange	"OL" or "-OL" is displayed
Accessories	9V battery (installed), 2 k-type thermocouples, 2 Velcro straps, rubber boot, case and operator's manual.
Safety	Designed to meet EN61326-1, CE-EMC
