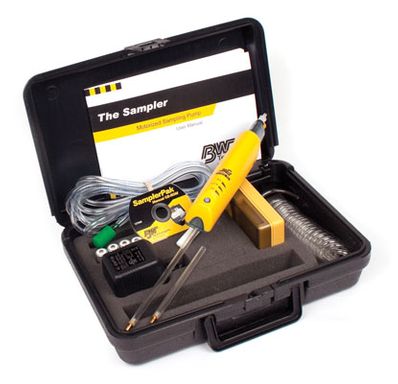

BW Technologies SamplerPak Deluxe Motorized Sampling Pump Kit with Both, Alkaline Batteries, Rechargeable Batteries and Battery Charger

Item #:
GA-SPAK-NA
Brand:
BW Technologies
BW Technologies SamplerPak Deluxe Motorized Sampling Pump Kit with Both, Alkaline Batteries, Rechargeable Batteries and Battery Charger
$430.00
Qty

Discontinued

Send This Page to a Friend

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us
Share this product:
BW Technologies SamplerPak Deluxe Motorized Sampling Pump Kit with Both, Alkaline Batteries, Rechargeable Batteries and Battery Charger

BW Technologies SamplerPak Deluxe Motorized Sampling Pump Kit with Both, Alkaline Batteries, Rechargeable Batteries and Battery Charger

$430.00

Discontinued


GA-SPAK-NA SamplerPak Deluxe Motorized Sampling Pump Kit with Both, Alkaline Batteries, Rechargeable Batteries and Battery Charger by BW Technologies

BW Technologies by Honeywell has developed and introduced a wide variety of hazardous atmospheric monitoring systems into the market. As an industry leader in customizable and dependable gas detection systems, BW Technologies continues to produce products that are customizable and innovative. With the differing needs of the various industries requiring gas monitoring systems, BW continues to produce the most trustworthy products and accessories on the market.

The SamplerPak

BW's SamplerPak is an easy, cost-efficient external motorized sampling pump designed for compatibility with any BW single or multi gas detectors. Users need only to attach the sampling pump to the detector for atmospheric sampling. The SamplerPak allows users to remotely sample the air quality in any given space. This can be especially useful for confined spaces or pre-entry tests.

The unit's high compatibility and customizable design is a standard feature of many BW Technologies products. The SamplerPak is easy to connect to any BW Technologies' single or multi gas detection system. In addition to any gas detection system, an external motorized sampling pump with remote sampling capabilities can provide safety and worksite managers with additional information they may need to determine the hazard level of any given environment. Please note that the SamplerPak is not a gas detector.

SamplerPak features

The Sampler Pak has many unique features that are exclusive to BW products. Each unit features a manual flow block test at start-up to validate operation, and leak tests to ensure effective draw. The unit also has built in water traps and a filtration system. Users can manually monitor water traps and filters. The SamplerPak is also capable of providing personal samplings or remote samplings. The time-tested sampling pump is available with a variety of models, accessories, and options to fit the unique needs of any workplace.

Options and accessories

As with most customizable products by BW Technologies, the SamplerPak offers optional accessories. Users may purchase a confined space kit, extra long probes, a battery charger, a sampling flat, and collapsible sampling probes. The unit can be powered by either AA alkaline batteries or AA NIMH rechargeable batteries. Both battery options provide approximately 30 hours of battery life. These options and accessories allow the basic sampling device to maintain its cost effectiveness while offering optional services to those in need.

Specifications

The SamplerPak weighs approximately 6.2 ounces and is designed to be lightweight and highly mobile. Measuring approximately 7 inches by 1 inch by 2 inches, the unit can easily fit into tight spaces and pockets. The Sampler Pak is equipped with visual and audible alarms of over 90 decibels, and will notify those nearby of system failures, low battery, or low airflow. Sample flow rate is 300 milliliters per minute and a sample distance of 50 feet. The typical delay time is approximately 3 seconds per 1 foot. The SamplerPak is purchased standard with a 2 year warranty.

With a BW Technologies SamplerPak, users can rest assured that they are receiving a superior, affordable, and reliable external sampling device.

Part Number: GASPAKNA

Size 7.4 x 1.3 x 2.1 in. / 18.8 x 3.35 x 5.4 cm
Weight 6.2 oz. / 175 g
Temperature -4 to +122°F / -20 to +50°C (North American model)
-4 to +104°F / -20 to +40°C (European model)
Humidity 5% - 95% RH (non-condensing)
Alarms - Visual and audible (90dB)
- Warning conditions: Low flow, low battery, system fault
Sample flow rate 300 ml/min (typical)
Sample distance 50 ft. / 15.2 m
Sample delay time 3 seconds per 1 ft. / 0.3 m
Outlet connection 1/8 in. / 0.32 cm barbed fitting for flexible sampling hose
Inlet connection Flexible sampling hose: 1/8 in. / 0.32 cm
Rigid sample tube: 1/4 in. / 0.63 cm O.D.
Typical battery life 30 hrs with 2 AA alkaline batteries or 2 AA NiMH rechargeable batteries
Warranty Full 2 year warranty
