Titrators

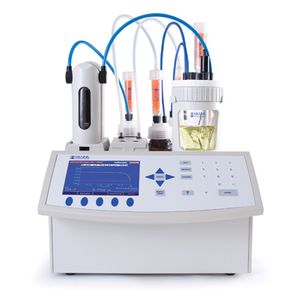

HI903-01 Karl Fischer Volumetric Titrator For Moisture Determination, 115V by Hanna Instruments

The HI 903 Karl Fischer Volumetric Titrator for moisture analysis is an extension of HANNA’s highly successful potentiometric titrator platform. The HI 903 combines an ultra-high precision titrant delivery system with optically regulated magnetic stirring, sophisticated endpoint determination, dynamic dosing and background drift correction algorithms.

The result is an extremely adaptable titrator capable of titrating with superior accuracy and precision even for samples with low moisture content. The HI 903 dispenses the titrant, detects the endpoint and performs all necessary calculations automatically.

The HI 903 comes equipped with a solvent handling system to reduce cell conditioning time and can be connected directly to your laboratory balance via serial interface.

The HI 903’s powerful software and intuitive menus are easily navigated on the large, color LCD display making it simple to view results. Choose from included methods or develop a custom method for almost any application or sample type. Using a USB flash drive or connecting the titrator to the HI 900PC application, methods (standard and user) can be upgraded, stored or deleted.

Precision titrant delivery system

• 40,000 step, piston dosing pump
• Accurate to 0.1%
• Delivers as little as 0.125 µL of titrant
• Precision ground, 5 mL glass burette with PTFE plunger, PTFE burette tubing, and polyurethane tube jacketing (thermally insulating, light blocking)
• Glass anti-diffusion dispensing tip
• Clip-Lock™ exchangeable burette system enables users to exchange reagent burettes in a matter of seconds

Sealed solvent system

• Change to fresh solvent in a matter of seconds without opening the titration vessel
• Minimizes exposure to ambient humidity, reducing titrant consumption and saving time
• PTFE solvent tubing is resistant to harsh KF solvents and titrants

Beaker top

• Chemically-resistant reaction vessel cap and fittings
• Quick-remove sample port plug with replaceable silicone rubber septum

Anti-diffusion burette tip

• Delivers titrant in high turbulence zone, ensuring rapid reaction
• Prevents unwanted diffusion of titrant

Built-in stirrer

• Automatic, integrated magnetic stirrer adjustable from 200-2000 RPM
• Optical feedback for automatic speed control
• Optional external stirrer available

Rechargeable indicating desiccant

• Prevents the ingress of ambient humidity into the sealed solvent system while maintaining full titrator functionality
• Minimizes changes to titrant titre
• Indicates when adsorption capacity is depleted
• Regenerates at 150°C

PTFE bottle cap

• Caps fit any GL45-threaded bottle
• Chemically resistant caps and fittings
• Removable desiccant cartridges

Clip-Lock™ Exchangeable Burette System

With Clip-Lock™, it only takes a couple of seconds to exchange the reagent burettes to perform a different titration.

The Clip-Lock™ exchangeable burette system prevents cross contamination while reducing loss of time and reagents. Burettes simply slide out for quick exchanges, and detaching the aspiration and dispensing tubes from the titrant bottles is easy.

Interrupting an important cycle of analysis due to a malfunctioning burette is a thing of the past. With the HANNA Clip-Lock™ system you can simply substitute the burette and complete all your tests with the same titrant! Having several prepared burettes on hand will make the HANNA HI 903 one of the fastest and most versatile titration systems available.

Order Information:

HI 903-01 (115V) and HI 903-02 (230V) are supplied with dual platinum pin electrode, dosing pump, 5 mL burette assembly with tubing, air pump assembly with tubing, beaker and bottle top assemblies and all fittings, desiccant cartridges (4) with indicating desiccant, stir bar, waste bottle, calibration key, USB cable, power cable, HI 900PC application, USB flash drive, quality certificate, ISO 8655 burette compliance report and instruction manual binder.

HI903-02 Karl Fischer Volumetric Titrator For Moisture Determination, 220V by Hanna Instruments

The HI 903 Karl Fischer Volumetric Titrator for moisture analysis is an extension of HANNA’s highly successful potentiometric titrator platform. The HI 903 combines an ultra-high precision titrant delivery system with optically regulated magnetic stirring, sophisticated endpoint determination, dynamic dosing and background drift correction algorithms.

The result is an extremely adaptable titrator capable of titrating with superior accuracy and precision even for samples with low moisture content. The HI 903 dispenses the titrant, detects the endpoint and performs all necessary calculations automatically.

The HI 903 comes equipped with a solvent handling system to reduce cell conditioning time and can be connected directly to your laboratory balance via serial interface.

The HI 903’s powerful software and intuitive menus are easily navigated on the large, color LCD display making it simple to view results. Choose from included methods or develop a custom method for almost any application or sample type. Using a USB flash drive or connecting the titrator to the HI 900PC application, methods (standard and user) can be upgraded, stored or deleted.

Precision titrant delivery system

• 40,000 step, piston dosing pump
• Accurate to 0.1%
• Delivers as little as 0.125 µL of titrant
• Precision ground, 5 mL glass burette with PTFE plunger, PTFE burette tubing, and polyurethane tube jacketing (thermally insulating, light blocking)
• Glass anti-diffusion dispensing tip
• Clip-Lock™ exchangeable burette system enables users to exchange reagent burettes in a matter of seconds

Sealed solvent system

• Change to fresh solvent in a matter of seconds without opening the titration vessel
• Minimizes exposure to ambient humidity, reducing titrant consumption and saving time
• PTFE solvent tubing is resistant to harsh KF solvents and titrants

Beaker top

• Chemically-resistant reaction vessel cap and fittings
• Quick-remove sample port plug with replaceable silicone rubber septum

Anti-diffusion burette tip

• Delivers titrant in high turbulence zone, ensuring rapid reaction
• Prevents unwanted diffusion of titrant

Built-in stirrer

• Automatic, integrated magnetic stirrer adjustable from 200-2000 RPM
• Optical feedback for automatic speed control
• Optional external stirrer available

Rechargeable indicating desiccant

• Prevents the ingress of ambient humidity into the sealed solvent system while maintaining full titrator functionality
• Minimizes changes to titrant titre
• Indicates when adsorption capacity is depleted
• Regenerates at 150°C

PTFE bottle cap

• Caps fit any GL45-threaded bottle
• Chemically resistant caps and fittings
• Removable desiccant cartridges

Clip-Lock™ Exchangeable Burette System

With Clip-Lock™, it only takes a couple of seconds to exchange the reagent burettes to perform a different titration.

The Clip-Lock™ exchangeable burette system prevents cross contamination while reducing loss of time and reagents. Burettes simply slide out for quick exchanges, and detaching the aspiration and dispensing tubes from the titrant bottles is easy.

Interrupting an important cycle of analysis due to a malfunctioning burette is a thing of the past. With the HANNA Clip-Lock™ system you can simply substitute the burette and complete all your tests with the same titrant! Having several prepared burettes on hand will make the HANNA HI 903 one of the fastest and most versatile titration systems available.

Order Information:

HI 903-01 (115V) and HI 903-02 (230V) are supplied with dual platinum pin electrode, dosing pump, 5 mL burette assembly with tubing, air pump assembly with tubing, beaker and bottle top assemblies and all fittings, desiccant cartridges (4) with indicating desiccant, stir bar, waste bottle, calibration key, USB cable, power cable, HI 900PC application, USB flash drive, quality certificate, ISO 8655 burette compliance report and instruction manual binder.

HI902C1-01Z Color Automatic Titration System with 1 Analog board/1pump/buret/stirrer, solutions, HI1131B by Hanna Instruments

The HI 902C is an automatic titrator that complements our wide range of products dedicated to quick and accurate laboratory analysis. HI 902C can perform acid/base, potentiometric, ORP, complexometric, precipitation, back titrations and titre determinations.

The HI 902C dispenses the titrant, detects the endpoint and performs all necessary calculations automatically.

This versatile titrator supports up to 100 methods, standard or user defined. When powered on, the instrument initiates an internal diagnostics check and then readies itself for the first titration of the day. A large color LCD screen clearly shows the chosen method and related information. A real-time titration curve can be shown on the display; this feature is useful when new methods are tested or when a procedure needs to be optimized. At the end of the titration, all data, including the graph, are automatically stored in memory and can be copied via the built-in USB drive or through direct connection with a PC.

This titrator is supplied with a pack of standard methods or you can create your own. Methods (standard and user) can be upgraded, stored or deleted by connecting the titrator to a PC with HANNA software or USB flash drive. Software updates can also be performed using a USB flash drive.

Users can connect pH, ORP or ISE electrodes to the HI 902C, as well as create a complete workstation with a PC, monitor, keyboard and printer.

The HI 902C complies with GLP specifications. All GLP information from each sample can be stored, including ID number, date and time of analysis, electrode ID code, and last calibration date.

• Intuitive user interface
• USB port allows for the transfer of methods and reports to a PC or another titrator via USB flash drive
• Field upgradeable software
• RS232 port allows direct connection to an analytical laboratory balance
• Multi language support
• Four working modes; potentiometric titrator, pH meter, mV meter, and ISE meter
• Potentiometric titrator
• Linked titration methods allow two methods to run in sequence
• Acid/base, non-aqueous, ORP, complexation, back, precipitation titrations and titre determination can be performed
• Supports up to 100 titration methods (standard and user defined)
• Supplied standard methods pack or create your own
• Titration graph can be displayed on-screen and saved as a bitmap
• Choice of endpoint detection: equivalence point (1st or 2nd derivative) or fixed pH/mV value
• Reminders for titrant age and standardization expiration
• Multiple end-point titrations with multiple molecular weights and reaction ratios
• Two sensor inputs with the addition of a second analog board
• Supports two burette dosing pumps with the ability to perform back titrations
• Clip-Lock exchangeable burette system enables users to exchange burettes in a matter of seconds
• 25 mL precision ground glass syringe with PTFE plunger
• 40,000 step screw drive, piston dosing pump
• 3-way motor driven valve
• PTFE burette tubing with polyurethane tube jacketing

pH meter

• Full featured research grade pH meter
• Automatic Temperature Compensation (ATC)
• Up to five calibration points with automatic recognition of standard buffers
• Up to five custom buffers can be used for calibration

mV (ORP) meter

• Relative mV calibration

ISE meter

• Numerous concentration units including: mol/L, mmol/L, mg/L, mg/mL, ug/L, %, ppt, ppm, g/L, and user defined
• Up to 5 calibration points with 5 custom standards

Clip-Lock™ Exchangeable Burette System

With Clip-Lock™, it only takes a few seconds to exchange the reagent burettes to perform a different titration.

The Clip-Lock™ exchangeable burette system prevents cross contamination while reducing loss of time and reagents. Burettes simply slide out for quick exchanges and detaching the aspiration and dispensing tubes from the titrant bottles is easy.

Interrupting an important cycle of analysis due to a malfunctioning burette is a thing of the past. With the HANNA Clip-Lock™ system you can simply substitute the burette and complete all your tests with the same titrant!

Having several prepared burettes on hand will make the HANNA HI 902C one of the fastest and most versatile titration systems on the market.

Order Information:

HI 902C1-01 (115V) titrator with one analog board HI 902C1-02 (230V) titrator with one analog board HI 902C2-01 (115V) titrator with two analog boards HI 902C2-02 (230V) titrator with two analog boards All models include stirrer with stand, 25 mL glass burette, dosing pump drive, temperature sensor, USB cable, 256 Mb USB flash drive and PC software.

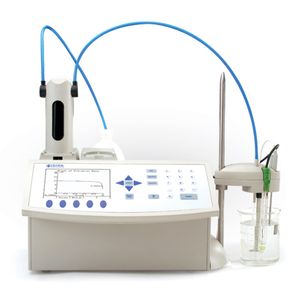

HI902C1-01X Color Automatic Titration System with 1 pump & 2 buretts, and stir motor, solutions, HI1131B by Hanna Instruments

The HI 902C is an automatic titrator that complements our wide range of products dedicated to quick and accurate laboratory analysis. HI 902C can perform acid/base, potentiometric, ORP, complexometric, precipitation, back titrations and titre determinations.

The HI 902C dispenses the titrant, detects the endpoint and performs all necessary calculations automatically.

This versatile titrator supports up to 100 methods, standard or user defined. When powered on, the instrument initiates an internal diagnostics check and then readies itself for the first titration of the day. A large color LCD screen clearly shows the chosen method and related information. A real-time titration curve can be shown on the display; this feature is useful when new methods are tested or when a procedure needs to be optimized. At the end of the titration, all data, including the graph, are automatically stored in memory and can be copied via the built-in USB drive or through direct connection with a PC.

This titrator is supplied with a pack of standard methods or you can create your own. Methods (standard and user) can be upgraded, stored or deleted by connecting the titrator to a PC with HANNA software or USB flash drive. Software updates can also be performed using a USB flash drive.

Users can connect pH, ORP or ISE electrodes to the HI 902C, as well as create a complete workstation with a PC, monitor, keyboard and printer.

The HI 902C complies with GLP specifications. All GLP information from each sample can be stored, including ID number, date and time of analysis, electrode ID code, and last calibration date.

• Intuitive user interface
• USB port allows for the transfer of methods and reports to a PC or another titrator via USB flash drive
• Field upgradeable software
• RS232 port allows direct connection to an analytical laboratory balance
• Multi language support
• Four working modes; potentiometric titrator, pH meter, mV meter, and ISE meter
• Potentiometric titrator
• Linked titration methods allow two methods to run in sequence
• Acid/base, non-aqueous, ORP, complexation, back, precipitation titrations and titre determination can be performed
• Supports up to 100 titration methods (standard and user defined)
• Supplied standard methods pack or create your own
• Titration graph can be displayed on-screen and saved as a bitmap
• Choice of endpoint detection: equivalence point (1st or 2nd derivative) or fixed pH/mV value
• Reminders for titrant age and standardization expiration
• Multiple end-point titrations with multiple molecular weights and reaction ratios
• Two sensor inputs with the addition of a second analog board
• Supports two burette dosing pumps with the ability to perform back titrations
• Clip-Lock exchangeable burette system enables users to exchange burettes in a matter of seconds
• 25 mL precision ground glass syringe with PTFE plunger
• 40,000 step screw drive, piston dosing pump
• 3-way motor driven valve
• PTFE burette tubing with polyurethane tube jacketing

pH meter

• Full featured research grade pH meter
• Automatic Temperature Compensation (ATC)
• Up to five calibration points with automatic recognition of standard buffers
• Up to five custom buffers can be used for calibration

mV (ORP) meter

• Relative mV calibration

ISE meter

• Numerous concentration units including: mol/L, mmol/L, mg/L, mg/mL, ug/L, %, ppt, ppm, g/L, and user defined
• Up to 5 calibration points with 5 custom standards

Clip-Lock™ Exchangeable Burette System

With Clip-Lock™, it only takes a few seconds to exchange the reagent burettes to perform a different titration.

The Clip-Lock™ exchangeable burette system prevents cross contamination while reducing loss of time and reagents. Burettes simply slide out for quick exchanges and detaching the aspiration and dispensing tubes from the titrant bottles is easy.

Interrupting an important cycle of analysis due to a malfunctioning burette is a thing of the past. With the HANNA Clip-Lock™ system you can simply substitute the burette and complete all your tests with the same titrant!

Having several prepared burettes on hand will make the HANNA HI 902C one of the fastest and most versatile titration systems on the market.

Order Information:

HI 902C1-01 (115V) titrator with one analog board HI 902C1-02 (230V) titrator with one analog board HI 902C2-01 (115V) titrator with two analog boards HI 902C2-02 (230V) titrator with two analog boards All models include stirrer with stand, 25 mL glass burette, dosing pump drive, temperature sensor, USB cable, 256 Mb USB flash drive and PC software.

HI902C1-01Y Color Automatic Titration System with 2 pumps, 2 burettes and stir motor, solutions, HI1131B by Hanna Instruments

The HI 902C is an automatic titrator that complements our wide range of products dedicated to quick and accurate laboratory analysis. HI 902C can perform acid/base, potentiometric, ORP, complexometric, precipitation, back titrations and titre determinations.

The HI 902C dispenses the titrant, detects the endpoint and performs all necessary calculations automatically.

This versatile titrator supports up to 100 methods, standard or user defined. When powered on, the instrument initiates an internal diagnostics check and then readies itself for the first titration of the day. A large color LCD screen clearly shows the chosen method and related information. A real-time titration curve can be shown on the display; this feature is useful when new methods are tested or when a procedure needs to be optimized. At the end of the titration, all data, including the graph, are automatically stored in memory and can be copied via the built-in USB drive or through direct connection with a PC.

This titrator is supplied with a pack of standard methods or you can create your own. Methods (standard and user) can be upgraded, stored or deleted by connecting the titrator to a PC with HANNA software or USB flash drive. Software updates can also be performed using a USB flash drive.

Users can connect pH, ORP or ISE electrodes to the HI 902C, as well as create a complete workstation with a PC, monitor, keyboard and printer.

The HI 902C complies with GLP specifications. All GLP information from each sample can be stored, including ID number, date and time of analysis, electrode ID code, and last calibration date.

• Intuitive user interface
• USB port allows for the transfer of methods and reports to a PC or another titrator via USB flash drive
• Field upgradeable software
• RS232 port allows direct connection to an analytical laboratory balance
• Multi language support
• Four working modes; potentiometric titrator, pH meter, mV meter, and ISE meter
• Potentiometric titrator
• Linked titration methods allow two methods to run in sequence
• Acid/base, non-aqueous, ORP, complexation, back, precipitation titrations and titre determination can be performed
• Supports up to 100 titration methods (standard and user defined)
• Supplied standard methods pack or create your own
• Titration graph can be displayed on-screen and saved as a bitmap
• Choice of endpoint detection: equivalence point (1st or 2nd derivative) or fixed pH/mV value
• Reminders for titrant age and standardization expiration
• Multiple end-point titrations with multiple molecular weights and reaction ratios
• Two sensor inputs with the addition of a second analog board
• Supports two burette dosing pumps with the ability to perform back titrations
• Clip-Lock exchangeable burette system enables users to exchange burettes in a matter of seconds
• 25 mL precision ground glass syringe with PTFE plunger
• 40,000 step screw drive, piston dosing pump
• 3-way motor driven valve
• PTFE burette tubing with polyurethane tube jacketing

pH meter

• Full featured research grade pH meter
• Automatic Temperature Compensation (ATC)
• Up to five calibration points with automatic recognition of standard buffers
• Up to five custom buffers can be used for calibration

mV (ORP) meter

• Relative mV calibration

ISE meter

• Numerous concentration units including: mol/L, mmol/L, mg/L, mg/mL, ug/L, %, ppt, ppm, g/L, and user defined
• Up to 5 calibration points with 5 custom standards

Clip-Lock™ Exchangeable Burette System

With Clip-Lock™, it only takes a few seconds to exchange the reagent burettes to perform a different titration.

The Clip-Lock™ exchangeable burette system prevents cross contamination while reducing loss of time and reagents. Burettes simply slide out for quick exchanges and detaching the aspiration and dispensing tubes from the titrant bottles is easy.

Interrupting an important cycle of analysis due to a malfunctioning burette is a thing of the past. With the HANNA Clip-Lock™ system you can simply substitute the burette and complete all your tests with the same titrant!

Having several prepared burettes on hand will make the HANNA HI 902C one of the fastest and most versatile titration systems on the market.

Order Information:

HI 902C1-01 (115V) titrator with one analog board HI 902C1-02 (230V) titrator with one analog board HI 902C2-01 (115V) titrator with two analog boards HI 902C2-02 (230V) titrator with two analog boards All models include stirrer with stand, 25 mL glass burette, dosing pump drive, temperature sensor, USB cable, 256 Mb USB flash drive and PC software.

HI902C1-02Z Color Automatic Titration System with 1 Analog board/1 pump/buret/stirrer by Hanna Instruments

The HI 902C is an automatic titrator that complements our wide range of products dedicated to quick and accurate laboratory analysis. HI 902C can perform acid/base, potentiometric, ORP, complexometric, precipitation, back titrations and titre determinations.

The HI 902C dispenses the titrant, detects the endpoint and performs all necessary calculations automatically.

This versatile titrator supports up to 100 methods, standard or user defined. When powered on, the instrument initiates an internal diagnostics check and then readies itself for the first titration of the day. A large color LCD screen clearly shows the chosen method and related information. A real-time titration curve can be shown on the display; this feature is useful when new methods are tested or when a procedure needs to be optimized. At the end of the titration, all data, including the graph, are automatically stored in memory and can be copied via the built-in USB drive or through direct connection with a PC.

This titrator is supplied with a pack of standard methods or you can create your own. Methods (standard and user) can be upgraded, stored or deleted by connecting the titrator to a PC with HANNA software or USB flash drive. Software updates can also be performed using a USB flash drive.

Users can connect pH, ORP or ISE electrodes to the HI 902C, as well as create a complete workstation with a PC, monitor, keyboard and printer.

The HI 902C complies with GLP specifications. All GLP information from each sample can be stored, including ID number, date and time of analysis, electrode ID code, and last calibration date.

• Intuitive user interface
• USB port allows for the transfer of methods and reports to a PC or another titrator via USB flash drive
• Field upgradeable software
• RS232 port allows direct connection to an analytical laboratory balance
• Multi language support
• Four working modes; potentiometric titrator, pH meter, mV meter, and ISE meter
• Potentiometric titrator
• Linked titration methods allow two methods to run in sequence
• Acid/base, non-aqueous, ORP, complexation, back, precipitation titrations and titre determination can be performed
• Supports up to 100 titration methods (standard and user defined)
• Supplied standard methods pack or create your own
• Titration graph can be displayed on-screen and saved as a bitmap
• Choice of endpoint detection: equivalence point (1st or 2nd derivative) or fixed pH/mV value
• Reminders for titrant age and standardization expiration
• Multiple end-point titrations with multiple molecular weights and reaction ratios
• Two sensor inputs with the addition of a second analog board
• Supports two burette dosing pumps with the ability to perform back titrations
• Clip-Lock exchangeable burette system enables users to exchange burettes in a matter of seconds
• 25 mL precision ground glass syringe with PTFE plunger
• 40,000 step screw drive, piston dosing pump
• 3-way motor driven valve
• PTFE burette tubing with polyurethane tube jacketing

pH meter

• Full featured research grade pH meter
• Automatic Temperature Compensation (ATC)
• Up to five calibration points with automatic recognition of standard buffers
• Up to five custom buffers can be used for calibration

mV (ORP) meter

• Relative mV calibration

ISE meter

• Numerous concentration units including: mol/L, mmol/L, mg/L, mg/mL, ug/L, %, ppt, ppm, g/L, and user defined
• Up to 5 calibration points with 5 custom standards

Clip-Lock™ Exchangeable Burette System

With Clip-Lock™, it only takes a few seconds to exchange the reagent burettes to perform a different titration.

The Clip-Lock™ exchangeable burette system prevents cross contamination while reducing loss of time and reagents. Burettes simply slide out for quick exchanges and detaching the aspiration and dispensing tubes from the titrant bottles is easy.

Interrupting an important cycle of analysis due to a malfunctioning burette is a thing of the past. With the HANNA Clip-Lock™ system you can simply substitute the burette and complete all your tests with the same titrant!

Having several prepared burettes on hand will make the HANNA HI 902C one of the fastest and most versatile titration systems on the market.

Order Information:

HI 902C1-01 (115V) titrator with one analog board HI 902C1-02 (230V) titrator with one analog board HI 902C2-01 (115V) titrator with two analog boards HI 902C2-02 (230V) titrator with two analog boards All models include stirrer with stand, 25 mL glass burette, dosing pump drive, temperature sensor, USB cable, 256 Mb USB flash drive and PC software.

HI902C1-02Y Color Automatic Titration System with 2 pumps, 2 buretts and stirrer motor by Hanna Instruments

The HI 902C is an automatic titrator that complements our wide range of products dedicated to quick and accurate laboratory analysis. HI 902C can perform acid/base, potentiometric, ORP, complexometric, precipitation, back titrations and titre determinations.

The HI 902C dispenses the titrant, detects the endpoint and performs all necessary calculations automatically.

This versatile titrator supports up to 100 methods, standard or user defined. When powered on, the instrument initiates an internal diagnostics check and then readies itself for the first titration of the day. A large color LCD screen clearly shows the chosen method and related information. A real-time titration curve can be shown on the display; this feature is useful when new methods are tested or when a procedure needs to be optimized. At the end of the titration, all data, including the graph, are automatically stored in memory and can be copied via the built-in USB drive or through direct connection with a PC.

This titrator is supplied with a pack of standard methods or you can create your own. Methods (standard and user) can be upgraded, stored or deleted by connecting the titrator to a PC with HANNA software or USB flash drive. Software updates can also be performed using a USB flash drive.

Users can connect pH, ORP or ISE electrodes to the HI 902C, as well as create a complete workstation with a PC, monitor, keyboard and printer.

The HI 902C complies with GLP specifications. All GLP information from each sample can be stored, including ID number, date and time of analysis, electrode ID code, and last calibration date.

• Intuitive user interface
• USB port allows for the transfer of methods and reports to a PC or another titrator via USB flash drive
• Field upgradeable software
• RS232 port allows direct connection to an analytical laboratory balance
• Multi language support
• Four working modes; potentiometric titrator, pH meter, mV meter, and ISE meter
• Potentiometric titrator
• Linked titration methods allow two methods to run in sequence
• Acid/base, non-aqueous, ORP, complexation, back, precipitation titrations and titre determination can be performed
• Supports up to 100 titration methods (standard and user defined)
• Supplied standard methods pack or create your own
• Titration graph can be displayed on-screen and saved as a bitmap
• Choice of endpoint detection: equivalence point (1st or 2nd derivative) or fixed pH/mV value
• Reminders for titrant age and standardization expiration
• Multiple end-point titrations with multiple molecular weights and reaction ratios
• Two sensor inputs with the addition of a second analog board
• Supports two burette dosing pumps with the ability to perform back titrations
• Clip-Lock exchangeable burette system enables users to exchange burettes in a matter of seconds
• 25 mL precision ground glass syringe with PTFE plunger
• 40,000 step screw drive, piston dosing pump
• 3-way motor driven valve
• PTFE burette tubing with polyurethane tube jacketing

pH meter

• Full featured research grade pH meter
• Automatic Temperature Compensation (ATC)
• Up to five calibration points with automatic recognition of standard buffers
• Up to five custom buffers can be used for calibration

mV (ORP) meter

• Relative mV calibration

ISE meter

• Numerous concentration units including: mol/L, mmol/L, mg/L, mg/mL, ug/L, %, ppt, ppm, g/L, and user defined
• Up to 5 calibration points with 5 custom standards

Clip-Lock™ Exchangeable Burette System

With Clip-Lock™, it only takes a few seconds to exchange the reagent burettes to perform a different titration.

The Clip-Lock™ exchangeable burette system prevents cross contamination while reducing loss of time and reagents. Burettes simply slide out for quick exchanges and detaching the aspiration and dispensing tubes from the titrant bottles is easy.

Interrupting an important cycle of analysis due to a malfunctioning burette is a thing of the past. With the HANNA Clip-Lock™ system you can simply substitute the burette and complete all your tests with the same titrant!

Having several prepared burettes on hand will make the HANNA HI 902C one of the fastest and most versatile titration systems on the market.

Order Information:

HI 902C1-01 (115V) titrator with one analog board HI 902C1-02 (230V) titrator with one analog board HI 902C2-01 (115V) titrator with two analog boards HI 902C2-02 (230V) titrator with two analog boards All models include stirrer with stand, 25 mL glass burette, dosing pump drive, temperature sensor, USB cable, 256 Mb USB flash drive and PC software.

HI902C2-01Z Color Automatic Titration System with 2 Analog boards/1 pump/buret/solutions/HI1131B by Hanna Instruments

The HI 902C is an automatic titrator that complements our wide range of products dedicated to quick and accurate laboratory analysis. HI 902C can perform acid/base, potentiometric, ORP, complexometric, precipitation, back titrations and titre determinations.

The HI 902C dispenses the titrant, detects the endpoint and performs all necessary calculations automatically.

This versatile titrator supports up to 100 methods, standard or user defined. When powered on, the instrument initiates an internal diagnostics check and then readies itself for the first titration of the day. A large color LCD screen clearly shows the chosen method and related information. A real-time titration curve can be shown on the display; this feature is useful when new methods are tested or when a procedure needs to be optimized. At the end of the titration, all data, including the graph, are automatically stored in memory and can be copied via the built-in USB drive or through direct connection with a PC.

This titrator is supplied with a pack of standard methods or you can create your own. Methods (standard and user) can be upgraded, stored or deleted by connecting the titrator to a PC with HANNA software or USB flash drive. Software updates can also be performed using a USB flash drive.

Users can connect pH, ORP or ISE electrodes to the HI 902C, as well as create a complete workstation with a PC, monitor, keyboard and printer.

The HI 902C complies with GLP specifications. All GLP information from each sample can be stored, including ID number, date and time of analysis, electrode ID code, and last calibration date.

• Intuitive user interface
• USB port allows for the transfer of methods and reports to a PC or another titrator via USB flash drive
• Field upgradeable software
• RS232 port allows direct connection to an analytical laboratory balance
• Multi language support
• Four working modes; potentiometric titrator, pH meter, mV meter, and ISE meter
• Potentiometric titrator
• Linked titration methods allow two methods to run in sequence
• Acid/base, non-aqueous, ORP, complexation, back, precipitation titrations and titre determination can be performed
• Supports up to 100 titration methods (standard and user defined)
• Supplied standard methods pack or create your own
• Titration graph can be displayed on-screen and saved as a bitmap
• Choice of endpoint detection: equivalence point (1st or 2nd derivative) or fixed pH/mV value
• Reminders for titrant age and standardization expiration
• Multiple end-point titrations with multiple molecular weights and reaction ratios
• Two sensor inputs with the addition of a second analog board
• Supports two burette dosing pumps with the ability to perform back titrations
• Clip-Lock exchangeable burette system enables users to exchange burettes in a matter of seconds
• 25 mL precision ground glass syringe with PTFE plunger
• 40,000 step screw drive, piston dosing pump
• 3-way motor driven valve
• PTFE burette tubing with polyurethane tube jacketing

pH meter

• Full featured research grade pH meter
• Automatic Temperature Compensation (ATC)
• Up to five calibration points with automatic recognition of standard buffers
• Up to five custom buffers can be used for calibration

mV (ORP) meter

• Relative mV calibration

ISE meter

• Numerous concentration units including: mol/L, mmol/L, mg/L, mg/mL, ug/L, %, ppt, ppm, g/L, and user defined
• Up to 5 calibration points with 5 custom standards

Clip-Lock™ Exchangeable Burette System

With Clip-Lock™, it only takes a few seconds to exchange the reagent burettes to perform a different titration.

The Clip-Lock™ exchangeable burette system prevents cross contamination while reducing loss of time and reagents. Burettes simply slide out for quick exchanges and detaching the aspiration and dispensing tubes from the titrant bottles is easy.

Interrupting an important cycle of analysis due to a malfunctioning burette is a thing of the past. With the HANNA Clip-Lock™ system you can simply substitute the burette and complete all your tests with the same titrant!

Having several prepared burettes on hand will make the HANNA HI 902C one of the fastest and most versatile titration systems on the market.

Order Information:

HI 902C1-01 (115V) titrator with one analog board HI 902C1-02 (230V) titrator with one analog board HI 902C2-01 (115V) titrator with two analog boards HI 902C2-02 (230V) titrator with two analog boards All models include stirrer with stand, 25 mL glass burette, dosing pump drive, temperature sensor, USB cable, 256 Mb USB flash drive and PC software.

HI902C2-01X Color Automatic Titration System with dual boards, 1 pump, 2 burettes, 1 stir motor, solutions, HI1131B by Hanna Instruments

The HI 902C is an automatic titrator that complements our wide range of products dedicated to quick and accurate laboratory analysis. HI 902C can perform acid/base, potentiometric, ORP, complexometric, precipitation, back titrations and titre determinations.

The HI 902C dispenses the titrant, detects the endpoint and performs all necessary calculations automatically.

This versatile titrator supports up to 100 methods, standard or user defined. When powered on, the instrument initiates an internal diagnostics check and then readies itself for the first titration of the day. A large color LCD screen clearly shows the chosen method and related information. A real-time titration curve can be shown on the display; this feature is useful when new methods are tested or when a procedure needs to be optimized. At the end of the titration, all data, including the graph, are automatically stored in memory and can be copied via the built-in USB drive or through direct connection with a PC.

This titrator is supplied with a pack of standard methods or you can create your own. Methods (standard and user) can be upgraded, stored or deleted by connecting the titrator to a PC with HANNA software or USB flash drive. Software updates can also be performed using a USB flash drive.

Users can connect pH, ORP or ISE electrodes to the HI 902C, as well as create a complete workstation with a PC, monitor, keyboard and printer.

The HI 902C complies with GLP specifications. All GLP information from each sample can be stored, including ID number, date and time of analysis, electrode ID code, and last calibration date.

• Intuitive user interface
• USB port allows for the transfer of methods and reports to a PC or another titrator via USB flash drive
• Field upgradeable software
• RS232 port allows direct connection to an analytical laboratory balance
• Multi language support
• Four working modes; potentiometric titrator, pH meter, mV meter, and ISE meter
• Potentiometric titrator
• Linked titration methods allow two methods to run in sequence
• Acid/base, non-aqueous, ORP, complexation, back, precipitation titrations and titre determination can be performed
• Supports up to 100 titration methods (standard and user defined)
• Supplied standard methods pack or create your own
• Titration graph can be displayed on-screen and saved as a bitmap
• Choice of endpoint detection: equivalence point (1st or 2nd derivative) or fixed pH/mV value
• Reminders for titrant age and standardization expiration
• Multiple end-point titrations with multiple molecular weights and reaction ratios
• Two sensor inputs with the addition of a second analog board
• Supports two burette dosing pumps with the ability to perform back titrations
• Clip-Lock exchangeable burette system enables users to exchange burettes in a matter of seconds
• 25 mL precision ground glass syringe with PTFE plunger
• 40,000 step screw drive, piston dosing pump
• 3-way motor driven valve
• PTFE burette tubing with polyurethane tube jacketing

pH meter

• Full featured research grade pH meter
• Automatic Temperature Compensation (ATC)
• Up to five calibration points with automatic recognition of standard buffers
• Up to five custom buffers can be used for calibration

mV (ORP) meter

• Relative mV calibration

ISE meter

• Numerous concentration units including: mol/L, mmol/L, mg/L, mg/mL, ug/L, %, ppt, ppm, g/L, and user defined
• Up to 5 calibration points with 5 custom standards

Clip-Lock™ Exchangeable Burette System

With Clip-Lock™, it only takes a few seconds to exchange the reagent burettes to perform a different titration.

The Clip-Lock™ exchangeable burette system prevents cross contamination while reducing loss of time and reagents. Burettes simply slide out for quick exchanges and detaching the aspiration and dispensing tubes from the titrant bottles is easy.

Interrupting an important cycle of analysis due to a malfunctioning burette is a thing of the past. With the HANNA Clip-Lock™ system you can simply substitute the burette and complete all your tests with the same titrant!

Having several prepared burettes on hand will make the HANNA HI 902C one of the fastest and most versatile titration systems on the market.

Order Information:

HI 902C1-01 (115V) titrator with one analog board HI 902C1-02 (230V) titrator with one analog board HI 902C2-01 (115V) titrator with two analog boards HI 902C2-02 (230V) titrator with two analog boards All models include stirrer with stand, 25 mL glass burette, dosing pump drive, temperature sensor, USB cable, 256 Mb USB flash drive and PC software.

HI902C2-01Y Color Automatic Titration System with dual boards, 2 pumps, 2 burrettes, 2 stir motors, solutions, HI1131B by Hanna Instruments

The HI 902C is an automatic titrator that complements our wide range of products dedicated to quick and accurate laboratory analysis. HI 902C can perform acid/base, potentiometric, ORP, complexometric, precipitation, back titrations and titre determinations.

The HI 902C dispenses the titrant, detects the endpoint and performs all necessary calculations automatically.

This versatile titrator supports up to 100 methods, standard or user defined. When powered on, the instrument initiates an internal diagnostics check and then readies itself for the first titration of the day. A large color LCD screen clearly shows the chosen method and related information. A real-time titration curve can be shown on the display; this feature is useful when new methods are tested or when a procedure needs to be optimized. At the end of the titration, all data, including the graph, are automatically stored in memory and can be copied via the built-in USB drive or through direct connection with a PC.

This titrator is supplied with a pack of standard methods or you can create your own. Methods (standard and user) can be upgraded, stored or deleted by connecting the titrator to a PC with HANNA software or USB flash drive. Software updates can also be performed using a USB flash drive.

Users can connect pH, ORP or ISE electrodes to the HI 902C, as well as create a complete workstation with a PC, monitor, keyboard and printer.

The HI 902C complies with GLP specifications. All GLP information from each sample can be stored, including ID number, date and time of analysis, electrode ID code, and last calibration date.

• Intuitive user interface
• USB port allows for the transfer of methods and reports to a PC or another titrator via USB flash drive
• Field upgradeable software
• RS232 port allows direct connection to an analytical laboratory balance
• Multi language support
• Four working modes; potentiometric titrator, pH meter, mV meter, and ISE meter
• Potentiometric titrator
• Linked titration methods allow two methods to run in sequence
• Acid/base, non-aqueous, ORP, complexation, back, precipitation titrations and titre determination can be performed
• Supports up to 100 titration methods (standard and user defined)
• Supplied standard methods pack or create your own
• Titration graph can be displayed on-screen and saved as a bitmap
• Choice of endpoint detection: equivalence point (1st or 2nd derivative) or fixed pH/mV value
• Reminders for titrant age and standardization expiration
• Multiple end-point titrations with multiple molecular weights and reaction ratios
• Two sensor inputs with the addition of a second analog board
• Supports two burette dosing pumps with the ability to perform back titrations
• Clip-Lock exchangeable burette system enables users to exchange burettes in a matter of seconds
• 25 mL precision ground glass syringe with PTFE plunger
• 40,000 step screw drive, piston dosing pump
• 3-way motor driven valve
• PTFE burette tubing with polyurethane tube jacketing

pH meter

• Full featured research grade pH meter
• Automatic Temperature Compensation (ATC)
• Up to five calibration points with automatic recognition of standard buffers
• Up to five custom buffers can be used for calibration

mV (ORP) meter

• Relative mV calibration

ISE meter

• Numerous concentration units including: mol/L, mmol/L, mg/L, mg/mL, ug/L, %, ppt, ppm, g/L, and user defined
• Up to 5 calibration points with 5 custom standards

Clip-Lock™ Exchangeable Burette System

With Clip-Lock™, it only takes a few seconds to exchange the reagent burettes to perform a different titration.

The Clip-Lock™ exchangeable burette system prevents cross contamination while reducing loss of time and reagents. Burettes simply slide out for quick exchanges and detaching the aspiration and dispensing tubes from the titrant bottles is easy.

Interrupting an important cycle of analysis due to a malfunctioning burette is a thing of the past. With the HANNA Clip-Lock™ system you can simply substitute the burette and complete all your tests with the same titrant!

Having several prepared burettes on hand will make the HANNA HI 902C one of the fastest and most versatile titration systems on the market.

Order Information:

HI 902C1-01 (115V) titrator with one analog board HI 902C1-02 (230V) titrator with one analog board HI 902C2-01 (115V) titrator with two analog boards HI 902C2-02 (230V) titrator with two analog boards All models include stirrer with stand, 25 mL glass burette, dosing pump drive, temperature sensor, USB cable, 256 Mb USB flash drive and PC software.

HI902C2-02Z Color Automatic Titration System with 2 Analog Boards/1 pump/1 buret/1 stir/solutions, HI1131B, 230V by Hanna Instruments

The HI 902C is an automatic titrator that complements our wide range of products dedicated to quick and accurate laboratory analysis. HI 902C can perform acid/base, potentiometric, ORP, complexometric, precipitation, back titrations and titre determinations.

The HI 902C dispenses the titrant, detects the endpoint and performs all necessary calculations automatically.

This versatile titrator supports up to 100 methods, standard or user defined. When powered on, the instrument initiates an internal diagnostics check and then readies itself for the first titration of the day. A large color LCD screen clearly shows the chosen method and related information. A real-time titration curve can be shown on the display; this feature is useful when new methods are tested or when a procedure needs to be optimized. At the end of the titration, all data, including the graph, are automatically stored in memory and can be copied via the built-in USB drive or through direct connection with a PC.

This titrator is supplied with a pack of standard methods or you can create your own. Methods (standard and user) can be upgraded, stored or deleted by connecting the titrator to a PC with HANNA software or USB flash drive. Software updates can also be performed using a USB flash drive.

Users can connect pH, ORP or ISE electrodes to the HI 902C, as well as create a complete workstation with a PC, monitor, keyboard and printer.

The HI 902C complies with GLP specifications. All GLP information from each sample can be stored, including ID number, date and time of analysis, electrode ID code, and last calibration date.

• Intuitive user interface
• USB port allows for the transfer of methods and reports to a PC or another titrator via USB flash drive
• Field upgradeable software
• RS232 port allows direct connection to an analytical laboratory balance
• Multi language support
• Four working modes; potentiometric titrator, pH meter, mV meter, and ISE meter
• Potentiometric titrator
• Linked titration methods allow two methods to run in sequence
• Acid/base, non-aqueous, ORP, complexation, back, precipitation titrations and titre determination can be performed
• Supports up to 100 titration methods (standard and user defined)
• Supplied standard methods pack or create your own
• Titration graph can be displayed on-screen and saved as a bitmap
• Choice of endpoint detection: equivalence point (1st or 2nd derivative) or fixed pH/mV value
• Reminders for titrant age and standardization expiration
• Multiple end-point titrations with multiple molecular weights and reaction ratios
• Two sensor inputs with the addition of a second analog board
• Supports two burette dosing pumps with the ability to perform back titrations
• Clip-Lock exchangeable burette system enables users to exchange burettes in a matter of seconds
• 25 mL precision ground glass syringe with PTFE plunger
• 40,000 step screw drive, piston dosing pump
• 3-way motor driven valve
• PTFE burette tubing with polyurethane tube jacketing

pH meter

• Full featured research grade pH meter
• Automatic Temperature Compensation (ATC)
• Up to five calibration points with automatic recognition of standard buffers
• Up to five custom buffers can be used for calibration

mV (ORP) meter

• Relative mV calibration

ISE meter

• Numerous concentration units including: mol/L, mmol/L, mg/L, mg/mL, ug/L, %, ppt, ppm, g/L, and user defined
• Up to 5 calibration points with 5 custom standards

Clip-Lock™ Exchangeable Burette System

With Clip-Lock™, it only takes a few seconds to exchange the reagent burettes to perform a different titration.

The Clip-Lock™ exchangeable burette system prevents cross contamination while reducing loss of time and reagents. Burettes simply slide out for quick exchanges and detaching the aspiration and dispensing tubes from the titrant bottles is easy.

Interrupting an important cycle of analysis due to a malfunctioning burette is a thing of the past. With the HANNA Clip-Lock™ system you can simply substitute the burette and complete all your tests with the same titrant!

Having several prepared burettes on hand will make the HANNA HI 902C one of the fastest and most versatile titration systems on the market.

Order Information:

HI 902C1-01 (115V) titrator with one analog board HI 902C1-02 (230V) titrator with one analog board HI 902C2-01 (115V) titrator with two analog boards HI 902C2-02 (230V) titrator with two analog boards All models include stirrer with stand, 25 mL glass burette, dosing pump drive, temperature sensor, USB cable, 256 Mb USB flash drive and PC software.

HI901-01X Black & White Automatic Titration System with 2 buretts, stirrer HI1131B, 4, 7, 10 buffers by Hanna Instruments

The HI 901 is an automatic titrator that compliments our wide range of products dedicated to quick and accurate laboratory analysis.

This titration system is provided with a host of numerous features suitable for routine sample analysis and performs acid/base, potentiometric and amperometric titrations. The HI 901 can also drive two pumps separately.

This versatile titrator supports up to 100 methods: standard or user defined. When powered on, the instrument initiates an internal diagnostics check and then readies itself for the first titration of the day. A large LCD screen clearly shows the chosen method, correlated information and also indicates which parameters may be adjusted. A real-time titration curve is shown on the display; this feature is useful when new methods are tested or when a procedure needs to be optimized. At the end of the titration, all data, including the graph, are automatically stored in memory and can be copied to disk via the built-in floppy drive or through direct connection with the serial cable supplied with the titrator. The titrators are equipped with an RS485 serial port.

Burette maintenance is simple and completely automated. The user can decide to purge it or wash it and can select how many washings to perform. With our exclusive Clip Lock™ system for burette replacement, changing from one titrant to another is done in a flash! Often, preliminary titration operations are very long and arduous. A burette often needs to be adjusted for correct dosing, which extends waiting time for new sample analysis. HANNA has engineered a way to solve this problem.

The innovative Clip Lock™ system allows users to change burettes in two simple steps, passing from one titrant to the next without any problem. Additionally, HI 901 automatically recognizes the volume of the new burette.

Users can connect pH or ORP electrodes to this unit, as well as create a complete workstation with a PC, monitor, keyboard and printer. This unit complies with GLP specifications, providing validation support for analysis. All GLP information from each sample can be stored, including ID number, date and time of analysis, electrode ID code and last calibration date.

Up to 100 reports of analysis, complete with titration curve graphing is possible. A calibration "time-out" can be set and the user can be advised when the pH electrode needs to be calibrated. The instrument's status can be viewed clearly on the large LCD screen. Contained in the set-up menu, features like language, display brightness, resolution, pH electrode calibration, date and hour can be adjusted. During analysis, the titration is displayed in real-time together with the stored data. Date, hour, temperature (when probe is connected) and warning messages such as a pH electrode calibration message can all be displayed for your convenience.

• Precise dosing system (accuracy under 0.1% of burette volume)
• Supports up to 100 titration methods (standard and user defined)
• Clip Lock™ — change burettes quickly with auto burette recognition
• Dynamic/Linear dosing feature
• Fixed end point potential or pH
• Equivalence point detection (first derivative and second derivative)
• The results are displayed directly in the selected units
• Titration graph can be displayed on-screen and saved
• User customized reports can be printed, saved on floppy disk or transferred to PC via RS232 interface
• Reminders for titrant age and standardization expiration
• Self diagnostic features for peripheral devices including pump, valve, burette and stirrer

Order Information:

HI 901-01 (115V) and HI 901-02 (230V) is supplied with (1) 25 mL glass burette, (1) burette driver assembly, power adapter and instructions.

HI901-01Y Black & White Automatic Titration System with 2 HI900100, stirrer 2 HI900125, 4, 7, 10 buffers by Hanna Instruments

The HI 901 is an automatic titrator that compliments our wide range of products dedicated to quick and accurate laboratory analysis.

This titration system is provided with a host of numerous features suitable for routine sample analysis and performs acid/base, potentiometric and amperometric titrations. The HI 901 can also drive two pumps separately.

This versatile titrator supports up to 100 methods: standard or user defined. When powered on, the instrument initiates an internal diagnostics check and then readies itself for the first titration of the day. A large LCD screen clearly shows the chosen method, correlated information and also indicates which parameters may be adjusted. A real-time titration curve is shown on the display; this feature is useful when new methods are tested or when a procedure needs to be optimized. At the end of the titration, all data, including the graph, are automatically stored in memory and can be copied to disk via the built-in floppy drive or through direct connection with the serial cable supplied with the titrator. The titrators are equipped with an RS485 serial port.

Burette maintenance is simple and completely automated. The user can decide to purge it or wash it and can select how many washings to perform. With our exclusive Clip Lock™ system for burette replacement, changing from one titrant to another is done in a flash! Often, preliminary titration operations are very long and arduous. A burette often needs to be adjusted for correct dosing, which extends waiting time for new sample analysis. HANNA has engineered a way to solve this problem.

The innovative Clip Lock™ system allows users to change burettes in two simple steps, passing from one titrant to the next without any problem. Additionally, HI 901 automatically recognizes the volume of the new burette.

Users can connect pH or ORP electrodes to this unit, as well as create a complete workstation with a PC, monitor, keyboard and printer. This unit complies with GLP specifications, providing validation support for analysis. All GLP information from each sample can be stored, including ID number, date and time of analysis, electrode ID code and last calibration date.

Up to 100 reports of analysis, complete with titration curve graphing is possible. A calibration "time-out" can be set and the user can be advised when the pH electrode needs to be calibrated. The instrument's status can be viewed clearly on the large LCD screen. Contained in the set-up menu, features like language, display brightness, resolution, pH electrode calibration, date and hour can be adjusted. During analysis, the titration is displayed in real-time together with the stored data. Date, hour, temperature (when probe is connected) and warning messages such as a pH electrode calibration message can all be displayed for your convenience.

• Precise dosing system (accuracy under 0.1% of burette volume)
• Supports up to 100 titration methods (standard and user defined)
• Clip Lock™ — change burettes quickly with auto burette recognition
• Dynamic/Linear dosing feature
• Fixed end point potential or pH
• Equivalence point detection (first derivative and second derivative)
• The results are displayed directly in the selected units
• Titration graph can be displayed on-screen and saved
• User customized reports can be printed, saved on floppy disk or transferred to PC via RS232 interface
• Reminders for titrant age and standardization expiration
• Self diagnostic features for peripheral devices including pump, valve, burette and stirrer

Order Information:

HI 901-01 (115V) and HI 901-02 (230V) is supplied with (1) 25 mL glass burette, (1) burette driver assembly, power adapter and instructions.

HI901-01Z Black & White Automatic Titration System with HI900100, HI900125, HI900301, 4, 7, 10 buffers by Hanna Instruments

The HI 901 is an automatic titrator that compliments our wide range of products dedicated to quick and accurate laboratory analysis.

This titration system is provided with a host of numerous features suitable for routine sample analysis and performs acid/base, potentiometric and amperometric titrations. The HI 901 can also drive two pumps separately.

This versatile titrator supports up to 100 methods: standard or user defined. When powered on, the instrument initiates an internal diagnostics check and then readies itself for the first titration of the day. A large LCD screen clearly shows the chosen method, correlated information and also indicates which parameters may be adjusted. A real-time titration curve is shown on the display; this feature is useful when new methods are tested or when a procedure needs to be optimized. At the end of the titration, all data, including the graph, are automatically stored in memory and can be copied to disk via the built-in floppy drive or through direct connection with the serial cable supplied with the titrator. The titrators are equipped with an RS485 serial port.

Burette maintenance is simple and completely automated. The user can decide to purge it or wash it and can select how many washings to perform. With our exclusive Clip Lock™ system for burette replacement, changing from one titrant to another is done in a flash! Often, preliminary titration operations are very long and arduous. A burette often needs to be adjusted for correct dosing, which extends waiting time for new sample analysis. HANNA has engineered a way to solve this problem.

The innovative Clip Lock™ system allows users to change burettes in two simple steps, passing from one titrant to the next without any problem. Additionally, HI 901 automatically recognizes the volume of the new burette.

Users can connect pH or ORP electrodes to this unit, as well as create a complete workstation with a PC, monitor, keyboard and printer. This unit complies with GLP specifications, providing validation support for analysis. All GLP information from each sample can be stored, including ID number, date and time of analysis, electrode ID code and last calibration date.

Up to 100 reports of analysis, complete with titration curve graphing is possible. A calibration "time-out" can be set and the user can be advised when the pH electrode needs to be calibrated. The instrument's status can be viewed clearly on the large LCD screen. Contained in the set-up menu, features like language, display brightness, resolution, pH electrode calibration, date and hour can be adjusted. During analysis, the titration is displayed in real-time together with the stored data. Date, hour, temperature (when probe is connected) and warning messages such as a pH electrode calibration message can all be displayed for your convenience.

• Precise dosing system (accuracy under 0.1% of burette volume)
• Supports up to 100 titration methods (standard and user defined)
• Clip Lock™ — change burettes quickly with auto burette recognition
• Dynamic/Linear dosing feature
• Fixed end point potential or pH
• Equivalence point detection (first derivative and second derivative)
• The results are displayed directly in the selected units
• Titration graph can be displayed on-screen and saved
• User customized reports can be printed, saved on floppy disk or transferred to PC via RS232 interface
• Reminders for titrant age and standardization expiration
• Self diagnostic features for peripheral devices including pump, valve, burette and stirrer

Order Information:

HI 901-01 (115V) and HI 901-02 (230V) is supplied with (1) 25 mL glass burette, (1) burette driver assembly, power adapter and instructions.

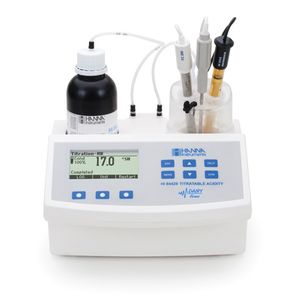

HI84429-01 Titratable Acids Mini Titrator and pH Meter for the Dairy Industry, 115V by Hanna Instruments

HI 84429 is a low cost, easy to use, automatic titrator and pH meter that reflects HANNA’s years of experience as a manufacturer of analytical instruments. HI 84429 performs automatic analysis with all the necessary calculations through a clear and simple interface.

This advanced automatic titrator and pH meter has a powerful and effective built-in algorithm to analyze the shape of the pH electrode response and determines the reaction completion. By pressing the START key, the instrument automatically conducts an endpoint titration the and result is immediately displayed. The HI 84429 has a simple and reliable peristaltic pump to ensure accuracy in dosing and repeatability in measurement.

The HI 84429 comes with a pre-programmed analysis method designed for total titratable acidity measurements on milk. The determination of total acids in dairy products is made according to a neutralization reaction; that is the reaction between the acids found in dairy products and a base. This type of reaction forms the basis of titration methods of analyzing acids. Titratable acidity is measured on a degassed sample at the endpoint of 8.30 pH. The results are expressed in °SH, °Thm °D or % l.a..

Acidity Measurement and Its Significance in the Dairy Industry

There are two fundamentally different conventions for expressing acidity in dairy products: titratable acidity and pH. The pH is a measurement of hydrogen ion concentration while titratable acidity is the neutralizing capacity by a base.

Acidity affects taste, thus this parameter is tested to determine the quality of the milk product. As milk acidity increases over time, measuring this parameter is also a means of monitoring storage conditions. Acidity is determined by an endpoint titration using sodium hydroxide (a base) and is defined as the consumption of base necessary to shift the pH value from 6.6 (corresponding to fresh milk) to a pre-determined basic pH value. While pH 7.0 is the actual point of neutralization, phenolphthalein is commonly employed as a color indicator to determine the endpoint of reaction and with it, color change occurs at pH 8.3. Titratable acidity is expressed as one of a variety of units, the use of which reflects the titration method and strength of base employed during titration.

°SH — Soxlet Henkel degrees: obtained by titrating 100 mL of milk with 0.25N NaOH, using phenolphthalein as the indicator. This method is common in Central Europe.

°Th — Thorner degrees: obtained by titrating 100 mL of milk thinned with 2 parts distilled water, with 0.1 N NaOH, using phenolphthalein as an indicator. Method is used mostly in Sweden and the CIS.

°D — Dornic degrees: obtained by titrating 100 mL of milk thinned with two parts distilled water, with 0.9N NaOH, using phenolphthalein as an indicator. Used mostly in the Netherlands and France.

% l.a. — percent lactic acid: obtained as °D divided by 100. Frequently used in the UK, USA, Canada, Australia and New Zealand.

Note: Taking into account the concentration of sodium hydroxide, the results expressed in one value can be easily converted into any other unit value by consulting the chart at right.

The HI 84429 Mini Titrator eliminates the subjective endpoint color change detection determined by the human eye, and instead employs the sensitivity and accuracy of a pH sensor. The titration method is a potentiometric endpoint determination using a pre-determined pH value.

Acidity of dairy products can be expressed in any of the units described earlier by simply selecting the desired unit. After performing a pump calibration with the supplied standard, you can then make titrations, expressed in the desired unit, using the same titrant. This eliminates the inconvenience of changing tubes, purging the titrant for tube cleaning and being sure that you have the right titrant concentration – saving time and titrant. The quantity of sample needed is much smaller in comparison to a traditional method, where 100 mL of product is used.

Order Information:

HI 84429-01 (115V) and HI 84429-02 (230V) are supplied with FC 260B pH electrode, HI 5315 Reference electrode, HI 7072 Filling solution (30 mL), HI 7662-M temperature probe, HI 84429-50 titrant (100 mL), HI 84429-55 Standard (500 mL), HI 700640 cleaning solution for milk deposits (20 mL, 2), pH 4.01 buffer solution (230 mL), pH 6.00 buffer solution (230 mL), pH 8.30 buffer solution (230 mL, 50 mL beakers (2), 20 mL beakers (2), tube set with cap, stir bars (2 small, 2 large), power cord, 1 mL syringe, capillary dropper pipette and Instruction manual.

HI84429-02 Titratable Acids Mini Titrator and pH Meter for the Dairy Industry, 230V by Hanna Instruments

HI 84429 is a low cost, easy to use, automatic titrator and pH meter that reflects HANNA’s years of experience as a manufacturer of analytical instruments. HI 84429 performs automatic analysis with all the necessary calculations through a clear and simple interface.

This advanced automatic titrator and pH meter has a powerful and effective built-in algorithm to analyze the shape of the pH electrode response and determines the reaction completion. By pressing the START key, the instrument automatically conducts an endpoint titration the and result is immediately displayed. The HI 84429 has a simple and reliable peristaltic pump to ensure accuracy in dosing and repeatability in measurement.

The HI 84429 comes with a pre-programmed analysis method designed for total titratable acidity measurements on milk. The determination of total acids in dairy products is made according to a neutralization reaction; that is the reaction between the acids found in dairy products and a base. This type of reaction forms the basis of titration methods of analyzing acids. Titratable acidity is measured on a degassed sample at the endpoint of 8.30 pH. The results are expressed in °SH, °Thm °D or % l.a..

Acidity Measurement and Its Significance in the Dairy Industry

There are two fundamentally different conventions for expressing acidity in dairy products: titratable acidity and pH. The pH is a measurement of hydrogen ion concentration while titratable acidity is the neutralizing capacity by a base.

Acidity affects taste, thus this parameter is tested to determine the quality of the milk product. As milk acidity increases over time, measuring this parameter is also a means of monitoring storage conditions. Acidity is determined by an endpoint titration using sodium hydroxide (a base) and is defined as the consumption of base necessary to shift the pH value from 6.6 (corresponding to fresh milk) to a pre-determined basic pH value. While pH 7.0 is the actual point of neutralization, phenolphthalein is commonly employed as a color indicator to determine the endpoint of reaction and with it, color change occurs at pH 8.3. Titratable acidity is expressed as one of a variety of units, the use of which reflects the titration method and strength of base employed during titration.

°SH — Soxlet Henkel degrees: obtained by titrating 100 mL of milk with 0.25N NaOH, using phenolphthalein as the indicator. This method is common in Central Europe.

°Th — Thorner degrees: obtained by titrating 100 mL of milk thinned with 2 parts distilled water, with 0.1 N NaOH, using phenolphthalein as an indicator. Method is used mostly in Sweden and the CIS.

°D — Dornic degrees: obtained by titrating 100 mL of milk thinned with two parts distilled water, with 0.9N NaOH, using phenolphthalein as an indicator. Used mostly in the Netherlands and France.

% l.a. — percent lactic acid: obtained as °D divided by 100. Frequently used in the UK, USA, Canada, Australia and New Zealand.

Note: Taking into account the concentration of sodium hydroxide, the results expressed in one value can be easily converted into any other unit value by consulting the chart at right.

The HI 84429 Mini Titrator eliminates the subjective endpoint color change detection determined by the human eye, and instead employs the sensitivity and accuracy of a pH sensor. The titration method is a potentiometric endpoint determination using a pre-determined pH value.

Acidity of dairy products can be expressed in any of the units described earlier by simply selecting the desired unit. After performing a pump calibration with the supplied standard, you can then make titrations, expressed in the desired unit, using the same titrant. This eliminates the inconvenience of changing tubes, purging the titrant for tube cleaning and being sure that you have the right titrant concentration – saving time and titrant. The quantity of sample needed is much smaller in comparison to a traditional method, where 100 mL of product is used.

Order Information:

HI 84429-01 (115V) and HI 84429-02 (230V) are supplied with FC 260B pH electrode, HI 5315 Reference electrode, HI 7072 Filling solution (30 mL), HI 7662-M temperature probe, HI 84429-50 titrant (100 mL), HI 84429-55 Standard (500 mL), HI 700640 cleaning solution for milk deposits (20 mL, 2), pH 4.01 buffer solution (230 mL), pH 6.00 buffer solution (230 mL), pH 8.30 buffer solution (230 mL, 50 mL beakers (2), 20 mL beakers (2), tube set with cap, stir bars (2 small, 2 large), power cord, 1 mL syringe, capillary dropper pipette and Instruction manual.

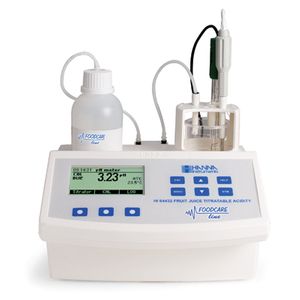

HI84432-01 Titratable Acidity Mini Titrator and pH Meter for Fruit Juice, 115V by Hanna Instruments

The HI 84432 digital automatic mini titrator and pH meter is designed for quick and accurate analysis of total titratable acidity in fruit juices. By eliminating subjective factors including color indicators, errors in mathematical calculations or erratic titrant additions from the measurement, the HI 84432 provides quick and accurate, repeatable results without guesswork.

A clear and intuitive user interface allows users to navigate the HI 84432’s menus and functions quickly. A HELP key located on the keypad aids in set-up, calibration status and troubleshooting.

By simply pressing the START key, the HI 84432 automatically starts pump operation and titrates the sample to the endpoint. This instrument employs a powerful and effective algorithm to analyze the pH response to determine the exact pH endpoint, then uses this algorithm to make the necessary calculations.

The titratable acidity determination is instantaneously displayed in selected measurement units on the large dot matrix display. The instrument is immediately ready for the next analysis.

The HI 84432 has a simple and accurate peristaltic pump to ensure the best accuracy and repeatability. To ensure instrument accuracy, perform a pump calibration with the provided HANNA standard.

• Based on the AOAC International accepted method for acidity determination
• Log on demand up to 100 total samples
• GLP features
• Eliminates subjective factors
• Three point calibration
• Automatic pH temperature compensation
• Automatic “anytime” help
• Intuitive user interface

Why This Instrument is So Important...

The measurement of titratable acidity in fruit juices measures the concentration of titratable hydrogen ions contained in the fruit juice samples by neutralization with strong base solution to a fixed pH. This value includes all the substances of an acidic nature in the fruit juice: free hydrogen ions, organic acids, acid salts and cathions.

Because the organic acid is the most acidic component of the fruit juices that react with strong base solutions, the titratable acidity is usually expressed as a percentage (mass/volume) of the predominant acid:

• Citric acid is present in many fruit species.
• Tartaric acid is essentially found in grapes.
• Malic acid is present in many fruit species, sometimes together with citric acid or tartaric acid in unripe grapes.

The HI 84432 Mini Titrator uses a method based on the Official Methods of Analysis of AOAC International. The fruit juice is titrated with a sodium hydroxide solution until the end point at 8.2 pH is reached (determined by potentiometric method). Additionally the HI 84432 has a built-in pH meter for pH measurement (electrode and meter must be calibrated).

Order Information:

HI 84432-01 (115V) and HI 84432-02 (230V) are supplied with HI 1131B pH electrode, HI 7662-M temperature probe, HI 84432-50 titrant (100 mL), HI 84432-55 pump calibration solution (100 mL), HI 70004 pH 4.01 buffer solution sachets (2), HI 70007 pH 7.01 buffer solution sachets (2), HI 700082 pH 8.20 buffer solution sachets (2), 100 mL beakers (2), tube set with dispensing tip, medium magnetic stir bars (2), 12 VDC adapter and instruction manual.

HI84432-02 Titratable Acidity Mini Titrator and pH Meter for Fruit Juice, 230V by Hanna Instruments

The HI 84432 digital automatic mini titrator and pH meter is designed for quick and accurate analysis of total titratable acidity in fruit juices. By eliminating subjective factors including color indicators, errors in mathematical calculations or erratic titrant additions from the measurement, the HI 84432 provides quick and accurate, repeatable results without guesswork.

A clear and intuitive user interface allows users to navigate the HI 84432’s menus and functions quickly. A HELP key located on the keypad aids in set-up, calibration status and troubleshooting.

By simply pressing the START key, the HI 84432 automatically starts pump operation and titrates the sample to the endpoint. This instrument employs a powerful and effective algorithm to analyze the pH response to determine the exact pH endpoint, then uses this algorithm to make the necessary calculations.

The titratable acidity determination is instantaneously displayed in selected measurement units on the large dot matrix display. The instrument is immediately ready for the next analysis.

The HI 84432 has a simple and accurate peristaltic pump to ensure the best accuracy and repeatability. To ensure instrument accuracy, perform a pump calibration with the provided HANNA standard.

• Based on the AOAC International accepted method for acidity determination
• Log on demand up to 100 total samples
• GLP features
• Eliminates subjective factors
• Three point calibration
• Automatic pH temperature compensation
• Automatic “anytime” help
• Intuitive user interface

Why This Instrument is So Important...

The measurement of titratable acidity in fruit juices measures the concentration of titratable hydrogen ions contained in the fruit juice samples by neutralization with strong base solution to a fixed pH. This value includes all the substances of an acidic nature in the fruit juice: free hydrogen ions, organic acids, acid salts and cathions.

Because the organic acid is the most acidic component of the fruit juices that react with strong base solutions, the titratable acidity is usually expressed as a percentage (mass/volume) of the predominant acid:

• Citric acid is present in many fruit species.
• Tartaric acid is essentially found in grapes.
• Malic acid is present in many fruit species, sometimes together with citric acid or tartaric acid in unripe grapes.

The HI 84432 Mini Titrator uses a method based on the Official Methods of Analysis of AOAC International. The fruit juice is titrated with a sodium hydroxide solution until the end point at 8.2 pH is reached (determined by potentiometric method). Additionally the HI 84432 has a built-in pH meter for pH measurement (electrode and meter must be calibrated).

Order Information:

HI 84432-01 (115V) and HI 84432-02 (230V) are supplied with HI 1131B pH electrode, HI 7662-M temperature probe, HI 84432-50 titrant (100 mL), HI 84432-55 pump calibration solution (100 mL), HI 70004 pH 4.01 buffer solution sachets (2), HI 70007 pH 7.01 buffer solution sachets (2), HI 700082 pH 8.20 buffer solution sachets (2), 100 mL beakers (2), tube set with dispensing tip, medium magnetic stir bars (2), 12 VDC adapter and instruction manual.

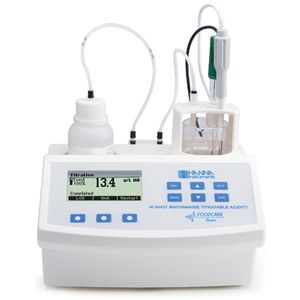

HI84437-01 Titratable Acidity Mini Titrator and pH Meter for Mayonnaise, 115V by Hanna Instruments

The HI 84437 is an easy to use automatic mini titrator and pH meter designed for the rapid and accurate analysis of titratable acidity in mayonnaise. By eliminating subjective factors including color indicators, errors in mathematical calculations or erratic titrant additions from the measurement, the HI 84437 makes titratable acidity analysis precise. This instrument will quickly become a valuable tool for mayonnaise analysis.

A clear and intuitive user interface allows users to navigate the HI 84437’s menus and functions quickly. A HELP key located on the keypad aids in set-up, calibration status and troubleshooting.

Simply weigh the sample, dilute with water and press start. The HI 84437 automatically stirs the sample, starts pumps operation and titrates the sample to the endpoint.

The instrument employs a powerful and effective built-in algorithm to analyze the pH response to determine the exact pH endpoint, then uses this to make the necessary calculations.

Titratable acidity determination is instantaneously displayed in the selected measurement unit on the display. The instrument is then immediately ready for the next analysis .

The HI 84437 employs a simple peristaltic pump to ensure the best accuracy and repeatability in measurements. To ensure the most consistent results, pump calibrations can be performed with the provided HANNA standard.

• No filtering, just mix and titrate
• Log on demand up to 100 total samples
• GLP features
• Eliminates subjective factors
• Can measure in % or g/L acetic acid
• Three point calibration
• Automatic pH temperature compensation
• Automatic “anytime” help
• Intuitive user interface

Order Information:

HI 84437-01 (115V) and HI 84437-02 (230V) are supplied with HI 1131B pH electrode, HI 7662-M temperature probe, HI 84437-50 titrant solution (100 mL), HI 84437-55 pump calibration solution (100 mL), HI 7004M pH 4.01 buffer solution (230 mL), HI 7007M pH 7.01 buffer solution (230 mL), HI 70082M pH 8.20 buffer solution (230 mL), 100 mL beakers (2), tube set with dispensing tip, medium magnetic stir bars (2), 12 VDC adapter and instruction manual.

HI84437-02 Titratable Acidity Mini Titrator and pH Meter for Mayonnaise, 230V by Hanna Instruments

The HI 84437 is an easy to use automatic mini titrator and pH meter designed for the rapid and accurate analysis of titratable acidity in mayonnaise. By eliminating subjective factors including color indicators, errors in mathematical calculations or erratic titrant additions from the measurement, the HI 84437 makes titratable acidity analysis precise. This instrument will quickly become a valuable tool for mayonnaise analysis.

A clear and intuitive user interface allows users to navigate the HI 84437’s menus and functions quickly. A HELP key located on the keypad aids in set-up, calibration status and troubleshooting.

Simply weigh the sample, dilute with water and press start. The HI 84437 automatically stirs the sample, starts pumps operation and titrates the sample to the endpoint.

The instrument employs a powerful and effective built-in algorithm to analyze the pH response to determine the exact pH endpoint, then uses this to make the necessary calculations.

Titratable acidity determination is instantaneously displayed in the selected measurement unit on the display. The instrument is then immediately ready for the next analysis .

The HI 84437 employs a simple peristaltic pump to ensure the best accuracy and repeatability in measurements. To ensure the most consistent results, pump calibrations can be performed with the provided HANNA standard.

• No filtering, just mix and titrate
• Log on demand up to 100 total samples
• GLP features
• Eliminates subjective factors
• Can measure in % or g/L acetic acid
• Three point calibration
• Automatic pH temperature compensation
• Automatic “anytime” help
• Intuitive user interface

Order Information:

HI 84437-01 (115V) and HI 84437-02 (230V) are supplied with HI 1131B pH electrode, HI 7662-M temperature probe, HI 84437-50 titrant solution (100 mL), HI 84437-55 pump calibration solution (100 mL), HI 7004M pH 4.01 buffer solution (230 mL), HI 7007M pH 7.01 buffer solution (230 mL), HI 70082M pH 8.20 buffer solution (230 mL), 100 mL beakers (2), tube set with dispensing tip, medium magnetic stir bars (2), 12 VDC adapter and instruction manual.

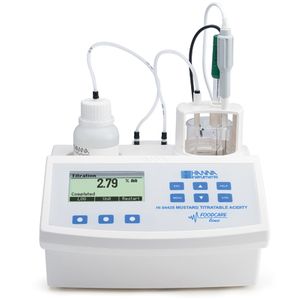

HI84435-01 Titratable Acidity Mini Titrator and pH Meter for Mustard, 115V by Hanna Instruments

The HI 84435 is an easy to use microprocessor-based automatic mini titrator and pH meter designed for quick and accurate analysis of titratable acidity in mustard. By eliminating subjective factors including color indicators, errors in mathematical calculations or erratic titrant additions from the measurement, the HI 84435 makes titratable acidity analysis precise. This instrument will quickly become a valuable tool for mustard analysis.

A clear and intuitive user interface allows users to navigate the HI 84435’s menus and functions quickly. A HELP key located on the keypad aids in set-up, calibration status and troubleshooting.

Simply weigh the sample, dilute with water and press start. The HI 84435 automatically stirs the sample, starts pumps operation and titrates the sample to the endpoint.

The instrument employs a powerful and effective built-in algorithm to analyze the pH response to determine the exact pH endpoint, then uses this to make the necessary calculations.

Titratable acidity determination is instantaneously displayed in the selected measurement unit on the display. The instrument is then immediately ready for the next analysis .

The HI 84435 employs a simple peristaltic pump to ensure the best accuracy and repeatability in measurements. To ensure the most consistent results, pump calibrations can be performed with the provided HANNA standard.

• No filtering, just mix and titrate
• Log on demand up to 100 total samples
• GLP features
• Eliminates subjective factors
• Can measure in % or g/L acetic acid
• Three point calibration
• Automatic pH temperature compensation
• Automatic “anytime” help
• Intuitive user interface

Order Information:

HI 84435-01 (115V) and HI 84435-02 (230V) is supplied with HI 1131B pH electrode, HI 7662-M temperature probe, HI 84435-50 titrant solution (100 mL), HI 84435-55 pump calibration solution (100 mL), HI 7004M pH 4.01 buffer solution (230 mL), HI 7007M pH 7.01 buffer solution (230 mL), HI 70082M pH 8.20 buffer solution (230 mL), 100 mL beakers (2), tube set with dispensing tip, medium magnetic stir bars (2), 12 VDC adapter and instruction manual.

HI84435-02 Titratable Acidity Mini Titrator and pH Meter for Mustard, 230V by Hanna Instruments

The HI 84435 is an easy to use microprocessor-based automatic mini titrator and pH meter designed for quick and accurate analysis of titratable acidity in mustard. By eliminating subjective factors including color indicators, errors in mathematical calculations or erratic titrant additions from the measurement, the HI 84435 makes titratable acidity analysis precise. This instrument will quickly become a valuable tool for mustard analysis.

A clear and intuitive user interface allows users to navigate the HI 84435’s menus and functions quickly. A HELP key located on the keypad aids in set-up, calibration status and troubleshooting.

Simply weigh the sample, dilute with water and press start. The HI 84435 automatically stirs the sample, starts pumps operation and titrates the sample to the endpoint.

The instrument employs a powerful and effective built-in algorithm to analyze the pH response to determine the exact pH endpoint, then uses this to make the necessary calculations.

Titratable acidity determination is instantaneously displayed in the selected measurement unit on the display. The instrument is then immediately ready for the next analysis .

The HI 84435 employs a simple peristaltic pump to ensure the best accuracy and repeatability in measurements. To ensure the most consistent results, pump calibrations can be performed with the provided HANNA standard.

• No filtering, just mix and titrate
• Log on demand up to 100 total samples
• GLP features
• Eliminates subjective factors
• Can measure in % or g/L acetic acid
• Three point calibration
• Automatic pH temperature compensation
• Automatic “anytime” help
• Intuitive user interface

Order Information:

HI 84435-01 (115V) and HI 84435-02 (230V) is supplied with HI 1131B pH electrode, HI 7662-M temperature probe, HI 84435-50 titrant solution (100 mL), HI 84435-55 pump calibration solution (100 mL), HI 7004M pH 4.01 buffer solution (230 mL), HI 7007M pH 7.01 buffer solution (230 mL), HI 70082M pH 8.20 buffer solution (230 mL), 100 mL beakers (2), tube set with dispensing tip, medium magnetic stir bars (2), 12 VDC adapter and instruction manual.

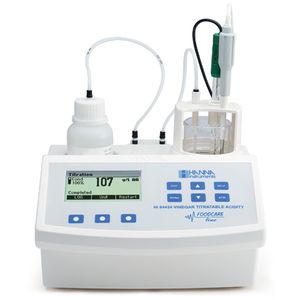

HI84434-01 Titratable Acidity Mini Titrator and pH Meter for Vinegar, 115V by Hanna Instruments

The HI 84434 is an easy to use automatic mini titrator and pH meter designed for the quick and accurate analysis of total titratable acidity in vinegar. By eliminating subjective factors including color indicators, errors in mathematical calculations or erratic titrant additions from the measurement, the HI 84434 makes total titratable acidity analysis precise. This will quickly become a valuable analysis tool of vinegar.

A clear and intuitive user interface allows users to navigate the HI 84434’s menus and functions quickly. A HELP key located on the keypad aids in set-up, calibration status and troubleshooting.

By simply pressing the START key, the HI 84434 automatically starts pump operation and titrates the sample to the endpoint.

The instrument employs a powerful and effective built-in algorithm to analyze the pH response to determine the exact pH endpoint, then uses this to make the necessary calculations.

The titratable acidity determination is instantaneously displayed in the selected measurement unit on the large display. The instrument is then immediately ready for the next analysis .

The HI 84434 employs a simple peristaltic pump to ensure the best accuracy and repeatability in measurements. To ensure the most consistent results, pump calibrations can be performed with the provided HANNA standard.

The HI 84434 has two operating options:

• pH measurement using the meter in pH mode.
• Titratable acidity determination by titration of the vinega samples with sodium hydroxide solution to 8.2 pH (determined by potentiometric method).

• No filtering, just mix and titrate
• Log on demand up to 100 total samples
• GLP features
• Eliminates subjective factors
• Can measure in % or g/L acetic acid
• Three point calibration
• Automatic pH temperature compensation
• Automatic “anytime” help
• Intuitive user interface

Order Information:

HI 84434-01 (115V) and HI 84434-02 (230V) is supplied with HI 1131B pH electrode, HI 7662-M temperature probe, HI 84434-50 titrant solution (100 mL), HI 84434-55 pump calibration solution (100 mL), HI 7004M pH 4.01 buffer solution (230 mL), HI 7007M pH 7.01 buffer solution (230 mL), HI 70082M pH 8.20 buffer solution (230 mL), 100 mL beakers (2), tube set with dispensing tip, medium magnetic stir bars (2), 12 VDC adapter and instruction manual.

HI84434-02 Titratable Acidity Mini Titrator and pH Meter for Vinegar, 230V by Hanna Instruments

The HI 84434 is an easy to use automatic mini titrator and pH meter designed for the quick and accurate analysis of total titratable acidity in vinegar. By eliminating subjective factors including color indicators, errors in mathematical calculations or erratic titrant additions from the measurement, the HI 84434 makes total titratable acidity analysis precise. This will quickly become a valuable analysis tool of vinegar.

A clear and intuitive user interface allows users to navigate the HI 84434’s menus and functions quickly. A HELP key located on the keypad aids in set-up, calibration status and troubleshooting.

By simply pressing the START key, the HI 84434 automatically starts pump operation and titrates the sample to the endpoint.

The instrument employs a powerful and effective built-in algorithm to analyze the pH response to determine the exact pH endpoint, then uses this to make the necessary calculations.

The titratable acidity determination is instantaneously displayed in the selected measurement unit on the large display. The instrument is then immediately ready for the next analysis .

The HI 84434 employs a simple peristaltic pump to ensure the best accuracy and repeatability in measurements. To ensure the most consistent results, pump calibrations can be performed with the provided HANNA standard.

The HI 84434 has two operating options:

• pH measurement using the meter in pH mode.
• Titratable acidity determination by titration of the vinega samples with sodium hydroxide solution to 8.2 pH (determined by potentiometric method).

• No filtering, just mix and titrate
• Log on demand up to 100 total samples
• GLP features
• Eliminates subjective factors
• Can measure in % or g/L acetic acid
• Three point calibration
• Automatic pH temperature compensation
• Automatic “anytime” help
• Intuitive user interface

Order Information:

HI 84434-01 (115V) and HI 84434-02 (230V) is supplied with HI 1131B pH electrode, HI 7662-M temperature probe, HI 84434-50 titrant solution (100 mL), HI 84434-55 pump calibration solution (100 mL), HI 7004M pH 4.01 buffer solution (230 mL), HI 7007M pH 7.01 buffer solution (230 mL), HI 70082M pH 8.20 buffer solution (230 mL), 100 mL beakers (2), tube set with dispensing tip, medium magnetic stir bars (2), 12 VDC adapter and instruction manual.

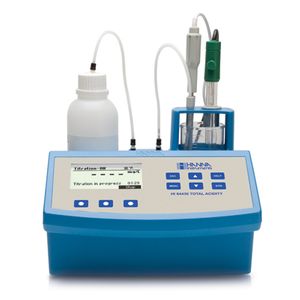

HI84430-01 Total Titratable Acidity Titrator, 115V by Hanna Instruments

The HI 84430 is an automatic titrator designed for easy, fast and accurate analysis of total titratable acidity in water. Potentiometric endpoint determination, peristaltic titrant delivery and integrated magnetic stirring systems eliminate the error and technique dependent results associated with manual titrations.

The accuracy of the instrument is ensured by performing a peristaltic pump calibration using the provided HANNA standard. The HI 84430 endpoint determination algorithm analyzes the pH vs. volume curve to determine the exact pH endpoint and performs the necessary calculations. The results are displayed in mg/L CaCO3 or meq/L CaCO3 units on the graphic display. Titrations are conducted using the low range reagent (15 to 500 mg/L as CaCO3) or the high range reagent (400 to 4000 mg/L as CaCO3).

An intuitive interface makes the instrument simple to use. A dedicated HELP key guides the user through set-up and calibration sequences, reports instrument status and aids in troubleshooting.

HI 84430 features include: log on demand for up to 100 samples (50 pH measurements, 50 titration results), GLP compliance.

• User-friendly interface
• Dedicated HELP key
• Simple to operate
• Log on demand
• GLP features

Order Information:

HI 84430-01 (115V) and HI 84430-02 (230V) are supplied with HI 1131B pH electrode, HI 7071 filling solution (30 mL), HI 7662-M temperature probe, HI 84430-50 titrant low range (100 mL), HI 84430-51 titrant high range (100 mL), HI 84430-55 pump calibration solution (230 mL), HI 84430 additional reagent (30 mL), HI 7061 cleaning solution, HI 7001M pH 1.68 buffer solution (230 mL), HI 7004M pH 4.01 buffer solution (230 mL), HI 70083M pH 8.30 buffer solution (230 mL), 100 mL beakers (2), tube set with dispensing tip, medium stir bars (2), 12 VDC adapter, instruction manual and quick reference guide.

HI84430-02 Total Titratable Acidity Titrator, 230V by Hanna Instruments

The HI 84430 is an automatic titrator designed for easy, fast and accurate analysis of total titratable acidity in water. Potentiometric endpoint determination, peristaltic titrant delivery and integrated magnetic stirring systems eliminate the error and technique dependent results associated with manual titrations.

The accuracy of the instrument is ensured by performing a peristaltic pump calibration using the provided HANNA standard. The HI 84430 endpoint determination algorithm analyzes the pH vs. volume curve to determine the exact pH endpoint and performs the necessary calculations. The results are displayed in mg/L CaCO3 or meq/L CaCO3 units on the graphic display. Titrations are conducted using the low range reagent (15 to 500 mg/L as CaCO3) or the high range reagent (400 to 4000 mg/L as CaCO3).

An intuitive interface makes the instrument simple to use. A dedicated HELP key guides the user through set-up and calibration sequences, reports instrument status and aids in troubleshooting.

HI 84430 features include: log on demand for up to 100 samples (50 pH measurements, 50 titration results), GLP compliance.

• User-friendly interface
• Dedicated HELP key
• Simple to operate
• Log on demand
• GLP features

Order Information:

HI 84430-01 (115V) and HI 84430-02 (230V) are supplied with HI 1131B pH electrode, HI 7071 filling solution (30 mL), HI 7662-M temperature probe, HI 84430-50 titrant low range (100 mL), HI 84430-51 titrant high range (100 mL), HI 84430-55 pump calibration solution (230 mL), HI 84430 additional reagent (30 mL), HI 7061 cleaning solution, HI 7001M pH 1.68 buffer solution (230 mL), HI 7004M pH 4.01 buffer solution (230 mL), HI 70083M pH 8.30 buffer solution (230 mL), 100 mL beakers (2), tube set with dispensing tip, medium stir bars (2), 12 VDC adapter, instruction manual and quick reference guide.

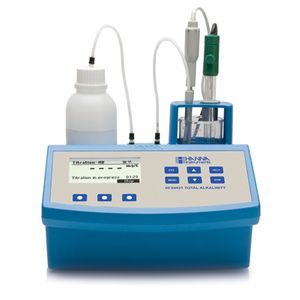

HI84431-01 Total Titratable Low to High Alkalinity Titrator, 115V by Hanna Instruments

The HI 84431 is a dedicated mini titrator and pH meter designed for low to high levels of alkalinity. It utilizes an electrometric titration with a pH electrode to determine the total titratable alkalinity in water. Titrant is slowly added to the sample solution the pH and temperature are carefully monitored. The software analyzes the resulting pH curve and determines the volume of titrant required to reach the endpoint. The user can choose either 8.3 pH (known as phenolphthalein alkalinity) or 4.5 pH (known as bromcresol green alkalinity as endpoints).

The dispensed titrant volume is used to automatically calculate the water alkalinity, which can be displayed in mg/L CaCO3 or meq/L. Titrations are conducted using the low range reagent HI 84431-50 (10 to 500 mg/L as CaCO3) or the high range reagent HI 84431-51 (400 to 4000 mg/L as CaCO3).

• User-friendly interface
• Dedicated HELP key
• Simple to operate
• Log on demand up to 100 samples (50 for pH; 50 for titration)
• GLP features
• One, two or three point calibration
• pH temperature compensation

Order Information:

HI 84431-01 (115V) and HI 84431-02 (230V) are supplied with HI 84431-50 titrant solution low range (100 mL), HI 84431-51 titrant high range (100 mL) and HI 84431-55M pump calibration solution (230 mL).

HI84431-02 Total Titratable Low to High Alkalinity Titrator, 230V by Hanna Instruments

The HI 84431 is a dedicated mini titrator and pH meter designed for low to high levels of alkalinity. It utilizes an electrometric titration with a pH electrode to determine the total titratable alkalinity in water. Titrant is slowly added to the sample solution the pH and temperature are carefully monitored. The software analyzes the resulting pH curve and determines the volume of titrant required to reach the endpoint. The user can choose either 8.3 pH (known as phenolphthalein alkalinity) or 4.5 pH (known as bromcresol green alkalinity as endpoints).

The dispensed titrant volume is used to automatically calculate the water alkalinity, which can be displayed in mg/L CaCO3 or meq/L. Titrations are conducted using the low range reagent HI 84431-50 (10 to 500 mg/L as CaCO3) or the high range reagent HI 84431-51 (400 to 4000 mg/L as CaCO3).

• User-friendly interface
• Dedicated HELP key
• Simple to operate
• Log on demand up to 100 samples (50 for pH; 50 for titration)
• GLP features
• One, two or three point calibration
• pH temperature compensation

Order Information:

HI 84431-01 (115V) and HI 84431-02 (230V) are supplied with HI 84431-50 titrant solution low range (100 mL), HI 84431-51 titrant high range (100 mL) and HI 84431-55M pump calibration solution (230 mL).

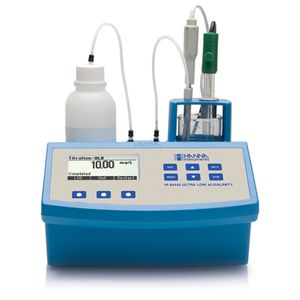

HI84442-01 Total Titratable Very Low Alkalinity Titrator, 115V by Hanna Instruments

The HI 84442 is a dedicated mini titrator and pH meter designed for very low levels of alkalinity displayed as 5.0 to 20.00 mg/L as CaCO3 or 0.1 to 0.4 meq/L as CaCO3. It utilizes an electrometric titration with a pH electrode to determine the total titratable alkalinity in water. As titrant is slowly added to the sample solution the pH and temperature are carefully monitored. The software analyzes the resulting pH curve and determines the volume of titrant required to reach the endpoint of 4.5 pH. (known as bromcresol green alkalinity).

The dispensed titrant volume is used to automatically calculate the water alkalinity, which can be displayed in mg/L CaCO3 or meq/L. Titrations are conducted using the reagent HI 84442-50.

• User-friendly interface
• Dedicated HELP key
• Simple to operate
• Log on demand up to 100 samples (50 for pH; 50 for titration)
• GLP features
• One, two or three point calibration
• pH temperature compensation

Order Information:

HI 84442-01 (115V) and HI 84442-02 (230V) are supplied with HI 84442-50 titrant solution (100 mL), HI 84442-55 pump calibration solution (230 mL), HI 1131B pH electrode, HI 7071 filling solution (30 mL), HI 7662-M temperature probe, HI 7061 cleaning solution, HI 7004M pH 4.01 buffer solution (230 mL), HI 70083M pH 8.30 buffer solution (230 mL), HI 7010M pH 10.01 buffer solution (230 mL), 100 mL beakers (2), tube set with dispensing tip, medium stir bars (2), 12 VDC adapter, Instructions and quick reference guide.

HI84442-02 Total Titratable Very Low Alkalinity Titrator, 230V by Hanna Instruments

The HI 84442 is a dedicated mini titrator and pH meter designed for very low levels of alkalinity displayed as 5.0 to 20.00 mg/L as CaCO3 or 0.1 to 0.4 meq/L as CaCO3. It utilizes an electrometric titration with a pH electrode to determine the total titratable alkalinity in water. As titrant is slowly added to the sample solution the pH and temperature are carefully monitored. The software analyzes the resulting pH curve and determines the volume of titrant required to reach the endpoint of 4.5 pH. (known as bromcresol green alkalinity).

The dispensed titrant volume is used to automatically calculate the water alkalinity, which can be displayed in mg/L CaCO3 or meq/L. Titrations are conducted using the reagent HI 84442-50.

• User-friendly interface
• Dedicated HELP key
• Simple to operate
• Log on demand up to 100 samples (50 for pH; 50 for titration)
• GLP features
• One, two or three point calibration
• pH temperature compensation

Order Information:

HI 84442-01 (115V) and HI 84442-02 (230V) are supplied with HI 84442-50 titrant solution (100 mL), HI 84442-55 pump calibration solution (230 mL), HI 1131B pH electrode, HI 7071 filling solution (30 mL), HI 7662-M temperature probe, HI 7061 cleaning solution, HI 7004M pH 4.01 buffer solution (230 mL), HI 70083M pH 8.30 buffer solution (230 mL), HI 7010M pH 10.01 buffer solution (230 mL), 100 mL beakers (2), tube set with dispensing tip, medium stir bars (2), 12 VDC adapter, Instructions and quick reference guide.

Total Alkalinity Titrator with USB Port

Fruit Juice Titrator with USB Port for USA

Formol Index for Wine Titrator

Formol Index Minititraotr for Wine (115V)
