Handheld RS60 Ring Scanner with Bluetooth, NFC, 2D Imager (N6703), Trigger Key and Battery - HHRS01

Handheld RS60 Ring Scanner with Bluetooth, NFC, 2D Imager (N6703), Trigger Key and Battery - HHRS01

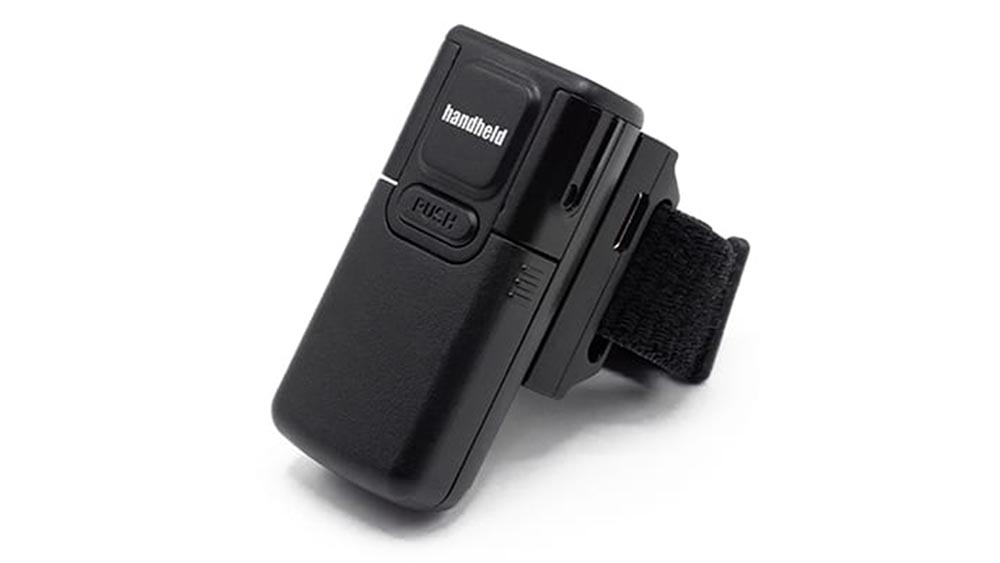

HHRS01 RS60 Ring Scanner with Bluetooth, NFC, 2D Imager (N6703), Trigger Key and Battery by Handheld

The wearable Handheld RS60 ring scanner is a comfortable hands-free scanning solution for your warehouse. Designed to be worn on either the right or left hand, this lightweight powerhouse thrives at intensive scanning tasks so your workforce can maximize productivity while keeping their hands free.

Tap to pair, stay connected

The RS60 ring scanner is easy to pair with a mobile computer using the Android ring control app and the option of either scanning a barcode or NFC tap to pair. With integrated BT Class 1, you can saty connected to devices – like a forklift-mounted tablet or a holstered-handheld – up to 100 m (300 feet) away.

Warehousing flexibility-nearby and far afield

You scanning tasks might be anywhere: up-front retail, in the warehouse or on the move. It could be an all-day shift requiring a lightweight scanning solution, or one in tight spaces needing point-and-scan dexterity. For less-intensive scanning tasks, an optional USB-C bracket makes it easy to keep your scanner handy with a lanyard around your neck or on your belt.

High-speed scanning on the go

Whichever is doing the moving – your hand or the packages passing on a conveyer belt – the RS60 ring scanner's 2D imager handles speeds of up to 6.0 m/s, accurately capturing fast-moving barcodes. Powered by Honeywell N6703 1D/2D barcode scan engine, the RS60 ring scanner offers the convenience of a wearable and the efficiency of a traditional scanner.

Small and mighty wearable scanner

The RS60 wearable ring scanner is small and lightweight, but don't let its small size fool you. Weighing less than two ounces, the RS60 ring scanner packs a wallop. And it comes with programmable LEDs for perfect integration and customization.

A rugged ring scanner for industrial environments

The RS60 ring scanner is rugged enough to go everywhere and work in even the most rugged warehouse environments. Tested to IP65 dust and water resistance and operating from 0°C to 50°C, it can survive multiple drops to concrete. And even in noisy work environments, the buzzer is loud enough to ensure you'll hear successful scans.

Keep it moving

Working for more than a full shift with long-life battery and equipped with BT v4.2 supporting BLE, the RS60 rign scanner's runtime is up to 11 hours. Smart accessories like a four-slot charging station and an eight-slot battery charger help maximize your runtime.

Dimensions 61 mm x 28 mm x 21 mm (2.4" x 1.1" x 0.8")
Weight With ring trigger: 52g (1.83oz)
Without ring trigger: 38g (1.34oz)
Processor 32-bit ARM Cortex processor, up to 120MHz
RAM and Storage 128 KB / 1MB (PGM), 16MB storage
Operating System Android
Firmware Upgradable via USB or BT
Battery 4.35V 700mAh Li-ion, field replaceable
Connectivity Integrated BT Class I+II, Ver. 4.2
BLE support
NFC Tap to Pair
Supported Profiles: Serial Port Profile (SPP)
Human Interface Profile (HID), Service
Discovery Application Profile (SDAP)
User interface Buttons: Device reboot and factory reset
Notification: 2 programmable LEDs
Buzzer – Up to 83dBA
Scanner 2D Imager (Honeywell N6703SR)
Sensor: 1280×800
Roll: 360°
Pitch: 60°
Skew: 60°
Aiming Element: Advanced red laser: cross target and framers; High brightness green LED: cross target or straight line
Illumination Element: White or red LED: exempt risk group
Field of View: Horizontal: 48°, Vertical: 31°
Ambient Light Immunity (from total darkness): 0 lux to 100,000 lux
Resolution: 3 mils C39 (1D), 7 mils Data Matrix (2D), 7mils QR (2D), 4 mils PDF 417 (2D stacked)
Supported 1D Symbologies: Codabar, Code 11, Code 128, Code 2 of 5, Code 39, Code 93 and 93i, EAN/JAN-13, EAN/JAN 8, IATA Code 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, MSI, GS1 Databar, UPC-A, UPC E, UPC-A/EAN-13 with Extended Coupon Code, Coupon GS1 Code 32(PARAF), EAN-UCC Emulation, GS1 Data Bar
Supported 2D Symbologies: Codablock A, Codablock F, PDF417, MicroPDF417, Aztec Code, Data Matrix, MaxiCode, QR Code, Chinese Sensible (Han Xin), Grid Matrix, Postal codes
Environment Operating: 0°C to 50°C (32 °F to 122°F)
Storage: -40°C to 70°C (-40°F to 158°F); Multiple 1.8m (6ft) drops to concrete
Sand and Dust: IP65
Water: IP65
Humidity: 95% Non-condensing
Electrostatic Discharge: ±15 kV air discharge; ±8 kV direct discharge
Regulatory Certified CE, FCC, IC, TELEC, NRCan, Environmental: RoHS III & WEEE compliant
