Hanna Flow-thru Monitoring pH Electrode with BNC Connection and 3 m Cable - HI1001

Item #:
HI1001
Brand:
Hanna Instruments
Hanna Flow-thru Monitoring pH Electrode with BNC Connection and 3 m Cable - HI1001
$169.00
Qty

Discontinued

Send This Page to a Friend

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us
Share this product:
Hanna Flow-thru Monitoring pH Electrode with BNC Connection and 3 m Cable - HI1001

Hanna Flow-thru Monitoring pH Electrode with BNC Connection and 3 m Cable - HI1001

$169.00

Discontinued

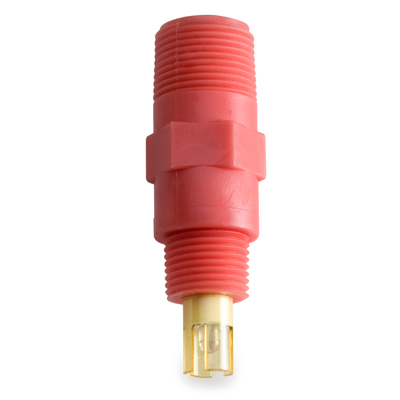

HI1001 Flow-thru Monitoring pH Electrode with BNC Connection and 3 m Cable by Hanna Instruments

In order to reduce normal contamination coming from industrial use, these electrodes combine a polymer reference and double-junction technology. With this technology, no refilling is required and the electrode can be used in samples such as organic compounds, proteins and heavy metals. In addition, the pH electrodes use a unique annular PTFE junction that minimizes clogging. These industrial probes have a glass body electrode for use in aggressive chemicals and are easy to clean. A PEI protective sleeve gives the electrodes resistance against mechanical stress. Operating limits are -5 to 80°C (23 to 176°F) and pressure up to 6?bar (87 psi).

Both pH and ORP models are available, many of which include a built-in matching pin. Some models also feature a built-in amplifier, which allows for measurements to be taken far from the location of the instrument without requiring a transmitter.

HI 1000 and HI 2000 series incorporate a BNC connector that enables connection to any pH/ORP meter quick and easy; models with 3 or 5 meters (9.8 or 16 feet) cable are available.

Specifically Built for Industrial Applications

  • ½" NPT external thread for in-line installation
  • pH electrode with exclusive PTFE non-clogging membrane
  • Double-junction technology
  • PVDF body
Junction double, PTFE
Electrolyte polymer
Temperature -5 to 80°C
Max Pressure 6 bar (87 psi)
Connection BNC
Cable 3 m
Body PVDF
