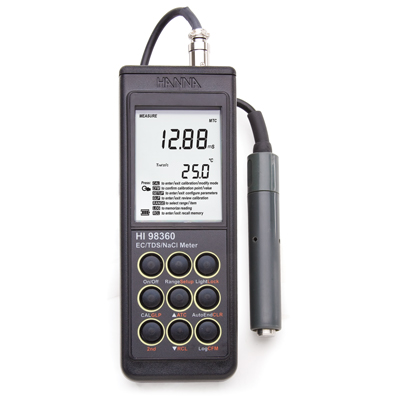

HI98360 EC/TDS/NaCl/°C Meter with PC Connectivity by Hanna Instruments

HI 98360 is a handheld conductivity/TDS/salinity/temperature meter. Users are provided with a series of diagnostic features and messages on the LCD which guide the user through calibration, operation and troubleshooting.

Conductivity and TDS measurement parameters are selectable such as: cell constant range from 0.500 to 1.700, temperature coefficient from 0.00 to 6.00%/ºC, temperature reference from 20 to 25ºC and a selectable TDS factor of 0.40 to 0.80.

This instrument utilizes the four ring HI 76309/1.5 conductivity probe with internal temperature sensor. The four ring design offers accurate readings over all the conductivity range with immunity to polarization and falling that occurs on long term use of amperometric probes.

The autoranging feature of the EC and TDS modes automatically sets the meter to the scale with the highest possible resolution. The auto endpoint feature automatically freezes the display once a stable reading is reached.

The HI 98360 includes data logging (up to 500 records) and a USB port for data transfer to a computer.

Autoranging, manual ranging and range lock
Four ring probe design
Automatic, manual and no Temperature Compensation
Auto endpoint; Automatically freezes stable readings on the LCD display
GLP features
BEPS (Battery Error Prevention System) alerts the user in the event that low battery power could adversely affect readings
On-screen user guides
Backlit display
Logging of up to 500 records
% Battery displayed on startup
USB port for PC compatibility

Order Information:

HI 98360 is supplied with HI 76309/1.5 conductivity probe, batteries, instructions and rugged carrying case.

Specifications

EC Range	0.00 to 29.99 µS/cm; 30.0 to 299.9 µS/cm; 300 to 2999 µS/cm; 3.00 to 29.99 mS/cm; 30.0 to 200.0 mS/cm; up to 500.0 mS/cm (actual EC)
TDS Range	0.00 to 14.99 mg/L (ppm); 15.0 to 149.9 mg/L (ppm); 150 to 1499 mg/L (ppm); 1.50 to 14.99 g/L (ppt); 15.0 to 100.0 g/L (ppt); up to 400.0 g/L (ppt) (actual TDS) with 0.80 conversion factor
NaCl Range	0.0 to 400.0%
Temperature Range	–20.0 to 120.0 ºC (-4.0 to 248.0ºF)
EC Resolution	0.01 µS/cm; 0.1 µS/cm; 1 µS/cm; 0.01 mS/cm; 0.1 mS/cm
TDS Resolution	0.01 mg/L (ppm); 0.1 mg/L (ppm); 1 mg/L (ppm); 0.01 g/L (ppt); 0.1 g/L (ppt)
NaCl Resolution	0.1%
Temperature Resolution	0.1°C
EC Accuracy	±0.5% of reading
TDS Accuracy	±0.5% of reading
NaClAccuracy	±0.5% of reading
Temperature Accuracy	±0.2°C (excluding probe error)
EC Calibration	automatic, one point with six memorized values (84, 1413, 5000, 12880, 80000, 111800 µS/cm)
NaCl Calibration	one point with HI 7037 calibration solution
Temperature Calibration	two point, at 0 and 50°C (32 and 122°F)
Temperature Compensation	automatic or manual from –20.0 to 120.0 ºC (-4.0 to 248.0ºF) (can be disabled for measuring conductivity)
Temperature Coefficient	selectable from 0.00 to 6.00%/ºC (EC and TDS only); default value is 1.90%/ºC
TDS Conversion Factor	selectable from 0.40 to 0.80 (default value is 0.50)
Data Logging	log on demand, up to 500 samples
Probe	HI 76309/1.5 four ring conductivity probe with internal temperature sensor, DIN connector and 1.5 m (4.9’) cable
Power Supply	1.5V AAA batteries (3) /approximately 200 hours of continuous use without backlight (50 hours with backlight on); auto-off after 5, 10, 20 and 60 minutes (can be disabled)
Environment	0 to 50°C (32 to 122°F); RH max 95%
Dimensions	185 x 72 x 36 mm (7.3 x 2.8 x 1.4”)
Weight	300 g (10.6 oz)
