Receiver Junction Box (UL / CSA / FM Certified) for Termination / Communication to Excel

OELDBXXXXXADNUX OELD Smart Junction Box, Display, C1D1 Z1, Aluminium, 3/4" NPT, cULus by Honeywell Analytics

The Optima Excel Local Display (OELD) is a smart junction box for the Searchpoint Optima Plus and Searchline Excel infrared detectors for flammable hydrocarbons. The OELD includes an LCD screen for gas information, a "traffic light" indicator for at-a-glance detector status, and Bluetooth® connectivity for simplified, non-intrusive maintenance. Simply pair the OELD with our intrinsically safe, ruggedized smartphone; then use the OELD smartphone app to interact with the gas detector from up to 10 meters (30 feet) away. For maximum flexibility, the gas detector can be mounted either directly or remotely to OELD to suit any situation.

SIMPLIFIED MAINTENANCE WITH FAMILIAR SMARTPHONE TECHNOLOGY

When you pair a smartphone with OELD, you can perform many tasks for your Searchpoint Optima Plus and Searchline Excel detectors wirelessly and from a convenient position.

Use the OELD mobile app to specify the target gas, configure alarm set points, perform one-man calibrations, access event logs, perform diagnostics, check detector status and more with no need to go back and forth to the control room, or open the enclosure on your gas detector. That means no hot-work headaches like obtaining permits, declassifying the area or adding more manpower.

For detectors in hard-to-reach locations such as a duct, you can position the corresponding OELD remotely in an easy-to access location and use the OELD smartphone app to interact with the detector wirelessly.

AT-A-GLANCE VISIBILITY

OELD has bright indicator lights visible from a distance, where green indicates normal operation, yellow indicates a fault or maintenance and red indicates an alarm. The LCD screen clearly displays real-time readings on detector status, including the gas being monitored, the local gas concentration and units of measurement??so you have easy access to status information.

GAS DETECTION THAT FITS THE WAY YOU WORK

The OELD smartphone app delivers the familiar user experience you expect?combined with gas detection technology designed to keep you safe while making your job easier. It simplifies detector maintenance and is acost-effective way to get even more value from your Searchpoint Optima Plus or Searchline Excel gas detectors.

EASE OF MAINTENANCE

• Simplified maintenance with familiar smartphone technology
• Non-intrusive interaction to reduce time and safety risk
• Easy access to hard-to-reach detectors
• Know before you go pre-empt maintenance issues

LOCAL VISIBILITY OF SAFETY ISSUES

• Bright "traffic light" indicator for safety awareness
• Easier to locate a unit in fault/warning
• Real-time gas readings

FEATURES

• Robust aluminium or stainless steel housing
• Worldwide approvals for hazardous areas including ATEX, IECEx, cULus
• Green/yellow/red/blue multi-colour backlight to show status
• Bluetooth® (BLE) range up to 10 m (30 feet)
• Ingress protection IP66 / Type 4X
• Assessed to have no effect on functional safety of connected gas sensor
• Backward compatible with all versions of Searchpoint Optima Plus and Searchline Excel
• Secure access to OELD units can be easily managed by a primary user via the OELD app

OELDBXXXXXSDNUX OELD Smart Junction Box, Display, C1D1 Z1, 316SST, 3/4" NPT, cULus by Honeywell Analytics

The Optima Excel Local Display (OELD) is a smart junction box for the Searchpoint Optima Plus and Searchline Excel infrared detectors for flammable hydrocarbons. The OELD includes an LCD screen for gas information, a "traffic light" indicator for at-a-glance detector status, and Bluetooth® connectivity for simplified, non-intrusive maintenance. Simply pair the OELD with our intrinsically safe, ruggedized smartphone; then use the OELD smartphone app to interact with the gas detector from up to 10 meters (30 feet) away. For maximum flexibility, the gas detector can be mounted either directly or remotely to OELD to suit any situation.

SIMPLIFIED MAINTENANCE WITH FAMILIAR SMARTPHONE TECHNOLOGY

When you pair a smartphone with OELD, you can perform many tasks for your Searchpoint Optima Plus and Searchline Excel detectors wirelessly and from a convenient position.

Use the OELD mobile app to specify the target gas, configure alarm set points, perform one-man calibrations, access event logs, perform diagnostics, check detector status and more with no need to go back and forth to the control room, or open the enclosure on your gas detector. That means no hot-work headaches like obtaining permits, declassifying the area or adding more manpower.

For detectors in hard-to-reach locations such as a duct, you can position the corresponding OELD remotely in an easy-to access location and use the OELD smartphone app to interact with the detector wirelessly.

AT-A-GLANCE VISIBILITY

OELD has bright indicator lights visible from a distance, where green indicates normal operation, yellow indicates a fault or maintenance and red indicates an alarm. The LCD screen clearly displays real-time readings on detector status, including the gas being monitored, the local gas concentration and units of measurement??so you have easy access to status information.

GAS DETECTION THAT FITS THE WAY YOU WORK

The OELD smartphone app delivers the familiar user experience you expect?combined with gas detection technology designed to keep you safe while making your job easier. It simplifies detector maintenance and is acost-effective way to get even more value from your Searchpoint Optima Plus or Searchline Excel gas detectors.

EASE OF MAINTENANCE

• Simplified maintenance with familiar smartphone technology
• Non-intrusive interaction to reduce time and safety risk
• Easy access to hard-to-reach detectors
• Know before you go pre-empt maintenance issues

LOCAL VISIBILITY OF SAFETY ISSUES

• Bright "traffic light" indicator for safety awareness
• Easier to locate a unit in fault/warning
• Real-time gas readings

FEATURES

• Robust aluminium or stainless steel housing
• Worldwide approvals for hazardous areas including ATEX, IECEx, cULus
• Green/yellow/red/blue multi-colour backlight to show status
• Bluetooth® (BLE) range up to 10 m (30 feet)
• Ingress protection IP66 / Type 4X
• Assessed to have no effect on functional safety of connected gas sensor
• Backward compatible with all versions of Searchpoint Optima Plus and Searchline Excel
• Secure access to OELD units can be easily managed by a primary user via the OELD app

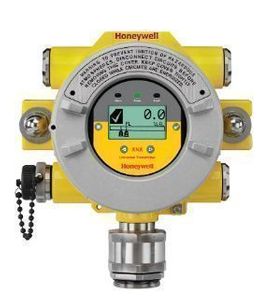

XNX-UTAI-FNNNN XNX Universal Transmitter, Foundation Fieldbus output, UL/CSA/FM approved, 5 x 3/4 in. NPT entries, painted LM25, configured for Searchline Excel by Honeywell Analytics

The XNX Universal Transmitter, now with HART EDDL, marks a new turn in gas detection from Honeywell Analytics. It supports the widest range of sensors on a common platform and offers a modular choice of inputs and outputs.

XNX is designed for flexible integration, simple installation, user-friendly operation and straight-forward maintenance. It is ideal for use with a range of gas monitoring controllers or industry standard PLCs. The introduction of our HART Enhanced Device Descriptor Language (EDDL) software provides users with an at-a-glance indication of the health of their gas detectors in the field.

Bringing together the best solutions in gas detection

Electrochemical

• Proven electrochemical sensing technology
• Surecell™ electrochemical cells are ideal for hot and humid environments
• Long life sensing cells (typical >2 years)
• Patented 'Reflex' sensing element verification diagnostics
• Sensor recognition software auto configures transmitter
• Plug and play factory configured sensors
• Intrinsically safe sensor connection permits hot swap, reducing down time

Catalytic Bead

• Supports Honeywell Analytics 705, 705HT, Sensepoint, Sensepoint HT and MPD sensors
• Fast response to wide range of hydrocarbons and flammables

Infrared (Open Path IR, Point IR, IR Cell)

• Supports Honeywell Analytics Searchline Excel, Searchpoint Optima Plus
• Failsafe operation
• Fast speed of response
• Reduced routine maintenance
• Immune to catalytic poisons
• Long operating life
• Works in inert atmospheres

High performance

• Flammable gas detection 0 to 100% LFL/LEL
• Point IR with heated optics provides immunity to poisoning and no hidden faults
• Open-path IR flammable gas detection in LEL-m measurement
• Electrochemical cell offers toxic gas detection in ppm
• IR cell provides CO₂ and combustible gas monitoring
• Robust and reliable operation in explosive areas and harsh environments

Flexible Operation

• 3 versions - supports (Catalytic Bead and IR Cell), Electrochemical Cell and IR (point and open-path) gas detection
• Multi-Purpose Detector (MPD) with field serviceable mV, Catalytic bead and IR Cell capability
• 4-20mA with HART® as standard
• HART Enhanced Device Description Language (EDDL) software*
• Multiple communications options include up to 3 relays, MODBUS® and FOUNDATION® H1 Fieldbus
• Optional local IS port for handheld HART configurator

Easy to Use

• Large, backlit, easy-to-view LCD display offers multisensory indicators (visual icons, colored buttons, text, etc.) to display gas and sensor readings
• User interface supported by 8 selectable languages (English, Spanish, German, Italian, Portuguese, French, Russian, Chinese)
• Self-test and fault indication features
• Non-intrusive, one-man operation
• Quick calibration with auto-inhibit

Easy to Install

• 3 or 4 wire operation, source, sink or isolated
• Simple plug-in sensors and replaceable cells
• NEMA 4X IP66 rated for rugged indoor/outdoor use
• Five conduit entries for ease of installation

Cost Effective

• Minimal training required
• One-man operation
• Plug-in sensor replacement
• All necessary accessories included

XNX-UTAI-MNNNN XNX Universal Transmitter, HART® over 4-20 mA output, UL/CSA/FM approved, 5 x 3/4 in. NPT entries, painted LM25, with Modbus® output, configured for Searchline Excel by Honeywell Analytics

The XNX Universal Transmitter, now with HART EDDL, marks a new turn in gas detection from Honeywell Analytics. It supports the widest range of sensors on a common platform and offers a modular choice of inputs and outputs.

XNX is designed for flexible integration, simple installation, user-friendly operation and straight-forward maintenance. It is ideal for use with a range of gas monitoring controllers or industry standard PLCs. The introduction of our HART Enhanced Device Descriptor Language (EDDL) software provides users with an at-a-glance indication of the health of their gas detectors in the field.

Bringing together the best solutions in gas detection

Electrochemical

• Proven electrochemical sensing technology
• Surecell™ electrochemical cells are ideal for hot and humid environments
• Long life sensing cells (typical >2 years)
• Patented 'Reflex' sensing element verification diagnostics
• Sensor recognition software auto configures transmitter
• Plug and play factory configured sensors
• Intrinsically safe sensor connection permits hot swap, reducing down time

Catalytic Bead

• Supports Honeywell Analytics 705, 705HT, Sensepoint, Sensepoint HT and MPD sensors
• Fast response to wide range of hydrocarbons and flammables

Infrared (Open Path IR, Point IR, IR Cell)

• Supports Honeywell Analytics Searchline Excel, Searchpoint Optima Plus
• Failsafe operation
• Fast speed of response
• Reduced routine maintenance
• Immune to catalytic poisons
• Long operating life
• Works in inert atmospheres

High performance

• Flammable gas detection 0 to 100% LFL/LEL
• Point IR with heated optics provides immunity to poisoning and no hidden faults
• Open-path IR flammable gas detection in LEL-m measurement
• Electrochemical cell offers toxic gas detection in ppm
• IR cell provides CO₂ and combustible gas monitoring
• Robust and reliable operation in explosive areas and harsh environments

Flexible Operation

• 3 versions - supports (Catalytic Bead and IR Cell), Electrochemical Cell and IR (point and open-path) gas detection
• Multi-Purpose Detector (MPD) with field serviceable mV, Catalytic bead and IR Cell capability
• 4-20mA with HART® as standard
• HART Enhanced Device Description Language (EDDL) software*
• Multiple communications options include up to 3 relays, MODBUS® and FOUNDATION® H1 Fieldbus
• Optional local IS port for handheld HART configurator

Easy to Use

• Large, backlit, easy-to-view LCD display offers multisensory indicators (visual icons, colored buttons, text, etc.) to display gas and sensor readings
• User interface supported by 8 selectable languages (English, Spanish, German, Italian, Portuguese, French, Russian, Chinese)
• Self-test and fault indication features
• Non-intrusive, one-man operation
• Quick calibration with auto-inhibit

Easy to Install

• 3 or 4 wire operation, source, sink or isolated
• Simple plug-in sensors and replaceable cells
• NEMA 4X IP66 rated for rugged indoor/outdoor use
• Five conduit entries for ease of installation

Cost Effective

• Minimal training required
• One-man operation
• Plug-in sensor replacement
• All necessary accessories included

XNX-UTAI-NHNNN XNX Universal Transmitter, HART® over 4-20 mA output, UL/CSA/FM approved, 5 x 3/4 in. NPT entries, painted LM25, with local HART® interface port, configured for Searchline Excel by Honeywell Analytics

The XNX Universal Transmitter, now with HART EDDL, marks a new turn in gas detection from Honeywell Analytics. It supports the widest range of sensors on a common platform and offers a modular choice of inputs and outputs.

XNX is designed for flexible integration, simple installation, user-friendly operation and straight-forward maintenance. It is ideal for use with a range of gas monitoring controllers or industry standard PLCs. The introduction of our HART Enhanced Device Descriptor Language (EDDL) software provides users with an at-a-glance indication of the health of their gas detectors in the field.

Bringing together the best solutions in gas detection

Electrochemical

• Proven electrochemical sensing technology
• Surecell™ electrochemical cells are ideal for hot and humid environments
• Long life sensing cells (typical >2 years)
• Patented 'Reflex' sensing element verification diagnostics
• Sensor recognition software auto configures transmitter
• Plug and play factory configured sensors
• Intrinsically safe sensor connection permits hot swap, reducing down time

Catalytic Bead

• Supports Honeywell Analytics 705, 705HT, Sensepoint, Sensepoint HT and MPD sensors
• Fast response to wide range of hydrocarbons and flammables

Infrared (Open Path IR, Point IR, IR Cell)

• Supports Honeywell Analytics Searchline Excel, Searchpoint Optima Plus
• Failsafe operation
• Fast speed of response
• Reduced routine maintenance
• Immune to catalytic poisons
• Long operating life
• Works in inert atmospheres

High performance

• Flammable gas detection 0 to 100% LFL/LEL
• Point IR with heated optics provides immunity to poisoning and no hidden faults
• Open-path IR flammable gas detection in LEL-m measurement
• Electrochemical cell offers toxic gas detection in ppm
• IR cell provides CO₂ and combustible gas monitoring
• Robust and reliable operation in explosive areas and harsh environments

Flexible Operation

• 3 versions - supports (Catalytic Bead and IR Cell), Electrochemical Cell and IR (point and open-path) gas detection
• Multi-Purpose Detector (MPD) with field serviceable mV, Catalytic bead and IR Cell capability
• 4-20mA with HART® as standard
• HART Enhanced Device Description Language (EDDL) software*
• Multiple communications options include up to 3 relays, MODBUS® and FOUNDATION® H1 Fieldbus
• Optional local IS port for handheld HART configurator

Easy to Use

• Large, backlit, easy-to-view LCD display offers multisensory indicators (visual icons, colored buttons, text, etc.) to display gas and sensor readings
• User interface supported by 8 selectable languages (English, Spanish, German, Italian, Portuguese, French, Russian, Chinese)
• Self-test and fault indication features
• Non-intrusive, one-man operation
• Quick calibration with auto-inhibit

Easy to Install

• 3 or 4 wire operation, source, sink or isolated
• Simple plug-in sensors and replaceable cells
• NEMA 4X IP66 rated for rugged indoor/outdoor use
• Five conduit entries for ease of installation

Cost Effective

• Minimal training required
• One-man operation
• Plug-in sensor replacement
• All necessary accessories included

XNX-UTAI-NNNNN XNX Universal Transmitter, HART® over 4-20 mA output, UL/CSA/FM approved, 5 x 3/4 in. NPT entries, painted LM25, configured for Searchline Excel by Honeywell Analytics

The XNX Universal Transmitter, now with HART EDDL, marks a new turn in gas detection from Honeywell Analytics. It supports the widest range of sensors on a common platform and offers a modular choice of inputs and outputs.

XNX is designed for flexible integration, simple installation, user-friendly operation and straight-forward maintenance. It is ideal for use with a range of gas monitoring controllers or industry standard PLCs. The introduction of our HART Enhanced Device Descriptor Language (EDDL) software provides users with an at-a-glance indication of the health of their gas detectors in the field.

Bringing together the best solutions in gas detection

Electrochemical

• Proven electrochemical sensing technology
• Surecell™ electrochemical cells are ideal for hot and humid environments
• Long life sensing cells (typical >2 years)
• Patented 'Reflex' sensing element verification diagnostics
• Sensor recognition software auto configures transmitter
• Plug and play factory configured sensors
• Intrinsically safe sensor connection permits hot swap, reducing down time

Catalytic Bead

• Supports Honeywell Analytics 705, 705HT, Sensepoint, Sensepoint HT and MPD sensors
• Fast response to wide range of hydrocarbons and flammables

Infrared (Open Path IR, Point IR, IR Cell)

• Supports Honeywell Analytics Searchline Excel, Searchpoint Optima Plus
• Failsafe operation
• Fast speed of response
• Reduced routine maintenance
• Immune to catalytic poisons
• Long operating life
• Works in inert atmospheres

High performance

• Flammable gas detection 0 to 100% LFL/LEL
• Point IR with heated optics provides immunity to poisoning and no hidden faults
• Open-path IR flammable gas detection in LEL-m measurement
• Electrochemical cell offers toxic gas detection in ppm
• IR cell provides CO₂ and combustible gas monitoring
• Robust and reliable operation in explosive areas and harsh environments

Flexible Operation

• 3 versions - supports (Catalytic Bead and IR Cell), Electrochemical Cell and IR (point and open-path) gas detection
• Multi-Purpose Detector (MPD) with field serviceable mV, Catalytic bead and IR Cell capability
• 4-20mA with HART® as standard
• HART Enhanced Device Description Language (EDDL) software*
• Multiple communications options include up to 3 relays, MODBUS® and FOUNDATION® H1 Fieldbus
• Optional local IS port for handheld HART configurator

Easy to Use

• Large, backlit, easy-to-view LCD display offers multisensory indicators (visual icons, colored buttons, text, etc.) to display gas and sensor readings
• User interface supported by 8 selectable languages (English, Spanish, German, Italian, Portuguese, French, Russian, Chinese)
• Self-test and fault indication features
• Non-intrusive, one-man operation
• Quick calibration with auto-inhibit

Easy to Install

• 3 or 4 wire operation, source, sink or isolated
• Simple plug-in sensors and replaceable cells
• NEMA 4X IP66 rated for rugged indoor/outdoor use
• Five conduit entries for ease of installation

Cost Effective

• Minimal training required
• One-man operation
• Plug-in sensor replacement
• All necessary accessories included

XNX-UTSI-FNNNN XNX Universal Transmitter, Foundation Fieldbus output, UL/CSA/FM approved, 5 x 3/4 in. NPT entries, painted 316 stainless steel, configured for Searchline Excel by Honeywell Analytics

The XNX Universal Transmitter, now with HART EDDL, marks a new turn in gas detection from Honeywell Analytics. It supports the widest range of sensors on a common platform and offers a modular choice of inputs and outputs.

XNX is designed for flexible integration, simple installation, user-friendly operation and straight-forward maintenance. It is ideal for use with a range of gas monitoring controllers or industry standard PLCs. The introduction of our HART Enhanced Device Descriptor Language (EDDL) software provides users with an at-a-glance indication of the health of their gas detectors in the field.

Bringing together the best solutions in gas detection

Electrochemical

• Proven electrochemical sensing technology
• Surecell™ electrochemical cells are ideal for hot and humid environments
• Long life sensing cells (typical >2 years)
• Patented 'Reflex' sensing element verification diagnostics
• Sensor recognition software auto configures transmitter
• Plug and play factory configured sensors
• Intrinsically safe sensor connection permits hot swap, reducing down time

Catalytic Bead

• Supports Honeywell Analytics 705, 705HT, Sensepoint, Sensepoint HT and MPD sensors
• Fast response to wide range of hydrocarbons and flammables

Infrared (Open Path IR, Point IR, IR Cell)

• Supports Honeywell Analytics Searchline Excel, Searchpoint Optima Plus
• Failsafe operation
• Fast speed of response
• Reduced routine maintenance
• Immune to catalytic poisons
• Long operating life
• Works in inert atmospheres

High performance

• Flammable gas detection 0 to 100% LFL/LEL
• Point IR with heated optics provides immunity to poisoning and no hidden faults
• Open-path IR flammable gas detection in LEL-m measurement
• Electrochemical cell offers toxic gas detection in ppm
• IR cell provides CO₂ and combustible gas monitoring
• Robust and reliable operation in explosive areas and harsh environments

Flexible Operation

• 3 versions - supports (Catalytic Bead and IR Cell), Electrochemical Cell and IR (point and open-path) gas detection
• Multi-Purpose Detector (MPD) with field serviceable mV, Catalytic bead and IR Cell capability
• 4-20mA with HART® as standard
• HART Enhanced Device Description Language (EDDL) software*
• Multiple communications options include up to 3 relays, MODBUS® and FOUNDATION® H1 Fieldbus
• Optional local IS port for handheld HART configurator

Easy to Use

• Large, backlit, easy-to-view LCD display offers multisensory indicators (visual icons, colored buttons, text, etc.) to display gas and sensor readings
• User interface supported by 8 selectable languages (English, Spanish, German, Italian, Portuguese, French, Russian, Chinese)
• Self-test and fault indication features
• Non-intrusive, one-man operation
• Quick calibration with auto-inhibit

Easy to Install

• 3 or 4 wire operation, source, sink or isolated
• Simple plug-in sensors and replaceable cells
• NEMA 4X IP66 rated for rugged indoor/outdoor use
• Five conduit entries for ease of installation

Cost Effective

• Minimal training required
• One-man operation
• Plug-in sensor replacement
• All necessary accessories included

XNX-UTSI-MNNNN XNX Universal Transmitter, HART® over 4-20 mA output, UL/CSA/FM approved, 5 x 3/4 in. NPT entries, painted 316 stainless steel, with Modbus® output, configured for Searchline Excel by Honeywell Analytics

The XNX Universal Transmitter, now with HART EDDL, marks a new turn in gas detection from Honeywell Analytics. It supports the widest range of sensors on a common platform and offers a modular choice of inputs and outputs.

XNX is designed for flexible integration, simple installation, user-friendly operation and straight-forward maintenance. It is ideal for use with a range of gas monitoring controllers or industry standard PLCs. The introduction of our HART Enhanced Device Descriptor Language (EDDL) software provides users with an at-a-glance indication of the health of their gas detectors in the field.

Bringing together the best solutions in gas detection

Electrochemical

• Proven electrochemical sensing technology
• Surecell™ electrochemical cells are ideal for hot and humid environments
• Long life sensing cells (typical >2 years)
• Patented 'Reflex' sensing element verification diagnostics
• Sensor recognition software auto configures transmitter
• Plug and play factory configured sensors
• Intrinsically safe sensor connection permits hot swap, reducing down time

Catalytic Bead

• Supports Honeywell Analytics 705, 705HT, Sensepoint, Sensepoint HT and MPD sensors
• Fast response to wide range of hydrocarbons and flammables

Infrared (Open Path IR, Point IR, IR Cell)

• Supports Honeywell Analytics Searchline Excel, Searchpoint Optima Plus
• Failsafe operation
• Fast speed of response
• Reduced routine maintenance
• Immune to catalytic poisons
• Long operating life
• Works in inert atmospheres

High performance

• Flammable gas detection 0 to 100% LFL/LEL
• Point IR with heated optics provides immunity to poisoning and no hidden faults
• Open-path IR flammable gas detection in LEL-m measurement
• Electrochemical cell offers toxic gas detection in ppm
• IR cell provides CO₂ and combustible gas monitoring
• Robust and reliable operation in explosive areas and harsh environments

Flexible Operation

• 3 versions - supports (Catalytic Bead and IR Cell), Electrochemical Cell and IR (point and open-path) gas detection
• Multi-Purpose Detector (MPD) with field serviceable mV, Catalytic bead and IR Cell capability
• 4-20mA with HART® as standard
• HART Enhanced Device Description Language (EDDL) software*
• Multiple communications options include up to 3 relays, MODBUS® and FOUNDATION® H1 Fieldbus
• Optional local IS port for handheld HART configurator

Easy to Use

• Large, backlit, easy-to-view LCD display offers multisensory indicators (visual icons, colored buttons, text, etc.) to display gas and sensor readings
• User interface supported by 8 selectable languages (English, Spanish, German, Italian, Portuguese, French, Russian, Chinese)
• Self-test and fault indication features
• Non-intrusive, one-man operation
• Quick calibration with auto-inhibit

Easy to Install

• 3 or 4 wire operation, source, sink or isolated
• Simple plug-in sensors and replaceable cells
• NEMA 4X IP66 rated for rugged indoor/outdoor use
• Five conduit entries for ease of installation

Cost Effective

• Minimal training required
• One-man operation
• Plug-in sensor replacement
• All necessary accessories included

XNX-UTSI-NHNNN XNX Universal Transmitter, HART® over 4-20 mA output, UL/CSA/FM approved, 5 x 3/4 in. NPT entries, painted 316 stainless steel, with local HART® interface port, configured for Searchline Excel by Honeywell Analytics

The XNX Universal Transmitter, now with HART EDDL, marks a new turn in gas detection from Honeywell Analytics. It supports the widest range of sensors on a common platform and offers a modular choice of inputs and outputs.

XNX is designed for flexible integration, simple installation, user-friendly operation and straight-forward maintenance. It is ideal for use with a range of gas monitoring controllers or industry standard PLCs. The introduction of our HART Enhanced Device Descriptor Language (EDDL) software provides users with an at-a-glance indication of the health of their gas detectors in the field.

Bringing together the best solutions in gas detection

Electrochemical

• Proven electrochemical sensing technology
• Surecell™ electrochemical cells are ideal for hot and humid environments
• Long life sensing cells (typical >2 years)
• Patented 'Reflex' sensing element verification diagnostics
• Sensor recognition software auto configures transmitter
• Plug and play factory configured sensors
• Intrinsically safe sensor connection permits hot swap, reducing down time

Catalytic Bead

• Supports Honeywell Analytics 705, 705HT, Sensepoint, Sensepoint HT and MPD sensors
• Fast response to wide range of hydrocarbons and flammables

Infrared (Open Path IR, Point IR, IR Cell)

• Supports Honeywell Analytics Searchline Excel, Searchpoint Optima Plus
• Failsafe operation
• Fast speed of response
• Reduced routine maintenance
• Immune to catalytic poisons
• Long operating life
• Works in inert atmospheres

High performance

• Flammable gas detection 0 to 100% LFL/LEL
• Point IR with heated optics provides immunity to poisoning and no hidden faults
• Open-path IR flammable gas detection in LEL-m measurement
• Electrochemical cell offers toxic gas detection in ppm
• IR cell provides CO₂ and combustible gas monitoring
• Robust and reliable operation in explosive areas and harsh environments

Flexible Operation

• 3 versions - supports (Catalytic Bead and IR Cell), Electrochemical Cell and IR (point and open-path) gas detection
• Multi-Purpose Detector (MPD) with field serviceable mV, Catalytic bead and IR Cell capability
• 4-20mA with HART® as standard
• HART Enhanced Device Description Language (EDDL) software*
• Multiple communications options include up to 3 relays, MODBUS® and FOUNDATION® H1 Fieldbus
• Optional local IS port for handheld HART configurator

Easy to Use

• Large, backlit, easy-to-view LCD display offers multisensory indicators (visual icons, colored buttons, text, etc.) to display gas and sensor readings
• User interface supported by 8 selectable languages (English, Spanish, German, Italian, Portuguese, French, Russian, Chinese)
• Self-test and fault indication features
• Non-intrusive, one-man operation
• Quick calibration with auto-inhibit

Easy to Install

• 3 or 4 wire operation, source, sink or isolated
• Simple plug-in sensors and replaceable cells
• NEMA 4X IP66 rated for rugged indoor/outdoor use
• Five conduit entries for ease of installation

Cost Effective

• Minimal training required
• One-man operation
• Plug-in sensor replacement
• All necessary accessories included

XNX-UTSI-NNNNN XNX Universal Transmitter, HART® over 4-20 mA output, UL/CSA/FM approved, 5 x 3/4 in. NPT entries, painted 316 stainless steel, configured for Searchline Excel by Honeywell Analytics

The XNX Universal Transmitter, now with HART EDDL, marks a new turn in gas detection from Honeywell Analytics. It supports the widest range of sensors on a common platform and offers a modular choice of inputs and outputs.

XNX is designed for flexible integration, simple installation, user-friendly operation and straight-forward maintenance. It is ideal for use with a range of gas monitoring controllers or industry standard PLCs. The introduction of our HART Enhanced Device Descriptor Language (EDDL) software provides users with an at-a-glance indication of the health of their gas detectors in the field.

Bringing together the best solutions in gas detection

Electrochemical

• Proven electrochemical sensing technology
• Surecell™ electrochemical cells are ideal for hot and humid environments
• Long life sensing cells (typical >2 years)
• Patented 'Reflex' sensing element verification diagnostics
• Sensor recognition software auto configures transmitter
• Plug and play factory configured sensors
• Intrinsically safe sensor connection permits hot swap, reducing down time

Catalytic Bead

• Supports Honeywell Analytics 705, 705HT, Sensepoint, Sensepoint HT and MPD sensors
• Fast response to wide range of hydrocarbons and flammables

Infrared (Open Path IR, Point IR, IR Cell)

• Supports Honeywell Analytics Searchline Excel, Searchpoint Optima Plus
• Failsafe operation
• Fast speed of response
• Reduced routine maintenance
• Immune to catalytic poisons
• Long operating life
• Works in inert atmospheres

High performance

• Flammable gas detection 0 to 100% LFL/LEL
• Point IR with heated optics provides immunity to poisoning and no hidden faults
• Open-path IR flammable gas detection in LEL-m measurement
• Electrochemical cell offers toxic gas detection in ppm
• IR cell provides CO₂ and combustible gas monitoring
• Robust and reliable operation in explosive areas and harsh environments

Flexible Operation

• 3 versions - supports (Catalytic Bead and IR Cell), Electrochemical Cell and IR (point and open-path) gas detection
• Multi-Purpose Detector (MPD) with field serviceable mV, Catalytic bead and IR Cell capability
• 4-20mA with HART® as standard
• HART Enhanced Device Description Language (EDDL) software*
• Multiple communications options include up to 3 relays, MODBUS® and FOUNDATION® H1 Fieldbus
• Optional local IS port for handheld HART configurator

Easy to Use

• Large, backlit, easy-to-view LCD display offers multisensory indicators (visual icons, colored buttons, text, etc.) to display gas and sensor readings
• User interface supported by 8 selectable languages (English, Spanish, German, Italian, Portuguese, French, Russian, Chinese)
• Self-test and fault indication features
• Non-intrusive, one-man operation
• Quick calibration with auto-inhibit

Easy to Install

• 3 or 4 wire operation, source, sink or isolated
• Simple plug-in sensors and replaceable cells
• NEMA 4X IP66 rated for rugged indoor/outdoor use
• Five conduit entries for ease of installation

Cost Effective

• Minimal training required
• One-man operation
• Plug-in sensor replacement
• All necessary accessories included
