Kanomax Lightweight Portable Pressure Calibrator - KAL84
Item #:
KAL84
Brand:
Kanomax
Share this product:

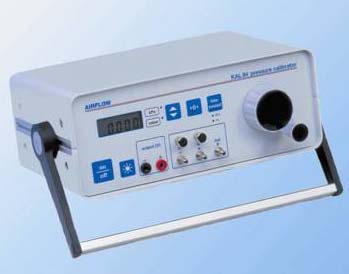

KAL84 Lightweight Portable Pressure Calibrator by Kanomax
Features:
- Combined manometer/calibrator
- High sensitivity pressure adjustment
- Choice of four models with dual Imperial and Metric units
- Large clear, back lit display
- Variable response time setting dampers fluctuating pressures
- Includes built in pressure source range
Applications:
- Calibrate instruments used for the measurement of pressure such as pressure transducers, transmitters and manometers
- Calibration of medical instruments, ventilators and infusion pumps
- Manufacturing & QC of pressure sensors and switches
| Model | Pressure Range |
| KAL84/100 | 0 to 100 Pa, 0 to 1 mbar |
| KAL84/1000 | 0 to 1000 Pa, 0 to 10 mbar |
| KAL84/10k | 0 to 10 kPa, 0 to 100 mbar |
| KAL84/100k | 0 to 100 kPa, 0 to 1000 mbar |
| Model | ALL |
| Max. Overload Differential pressure | Plus 79% of range in use |
| Displacement Volume | 100 cm3 (1, 10 and 100 kPa) |
| Generator | 200 cm3 (100 Pa) |
| Accuracy | ±0.5% ±1 Digit (0 - 1 Pa/1000 Pa/10 kPa) ±1% ±1 Digit (0 to 1000 kPa) |
| Temperature Range | |
| Working | 32° to 140°F (0° to 60°C) |
| Storage | 14° to 158°F (-10° to 70°C) |
| Output | 0 - 1 mA on each range |
| Power Supply | 1 x 9v cell type PP3 or equivalent |
| Battery Life | In excess of 80 hours |
| Overall dimensions | 10 7/16in x 3 1/2in x 7in (265mm x 90mm x 180mm) |
| Weight (less battery) | 6.7 Lbs, 3.0 kg |
| Standard Accessories | Meter, Battery |
| Optional Accessories | Carry case |
