CorDEX LM3000XP ATEX/CSA/IECEx Certified Laser Distance Meter
Item #:
LM3000XP
Brand:
CorDEX
Share this product:

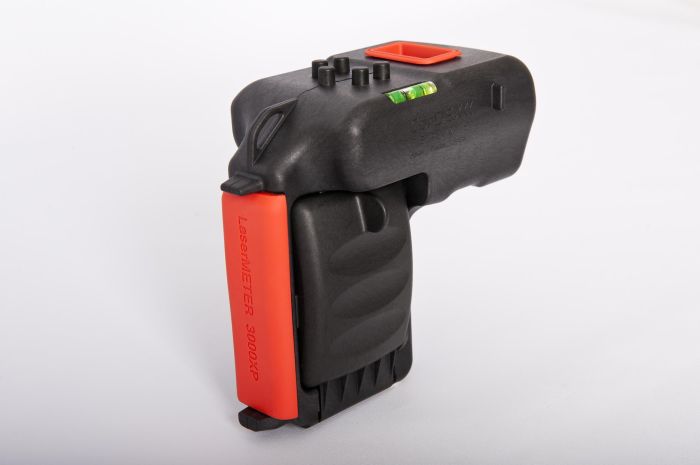

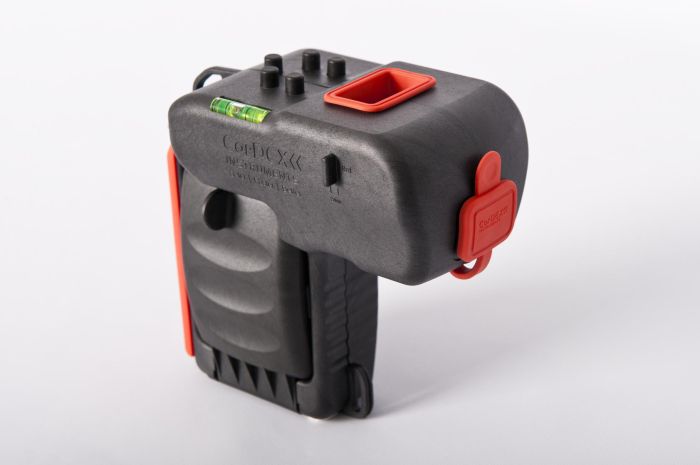

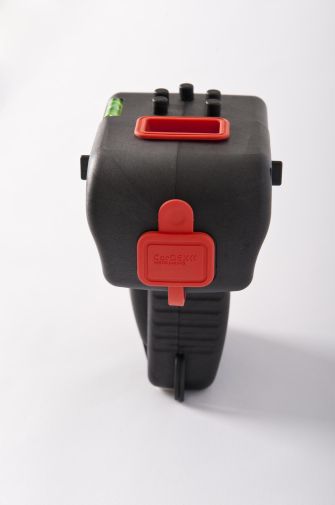

LM3000XP ATEX/CSA/IECEx Certified Laser Distance Meter by CorDEX
The LaserMETER 3000XP Intrinsically Safe laser distance meter is ATEX & IECEx certified for use within Zone 1 IIC T4, and CSA Certified for Class I, Div.1 B,C,D hazardous (explosive) areas.
The robust IP65 design incorporates a shock resistant, anti-static outer casing, interchangeable battery pack and backlit armoured LCD display.
Capable of measuring distances of 30m and packed with features including; Pythagoras, Area, Volume, Addition and Subtraction calculations.
Features:
- Capable of measuring distances of up to 30 m (100ft)
- Accurate to 3 mm (0.1 in.) (depending on target reflectivity and ambient conditions).
- Single or continuous measurement
- Addition and subtraction
- Pythagoras, area, and volume calculations.
- ATEX and IECEx certified for use within Mining (M2) and Zone 1 IIC T4 Explosive areas (vapor) atmospheres
- Clear backlit armoured LCD display for day or night operation
- Removable/rechargeable battery pack for continued operation

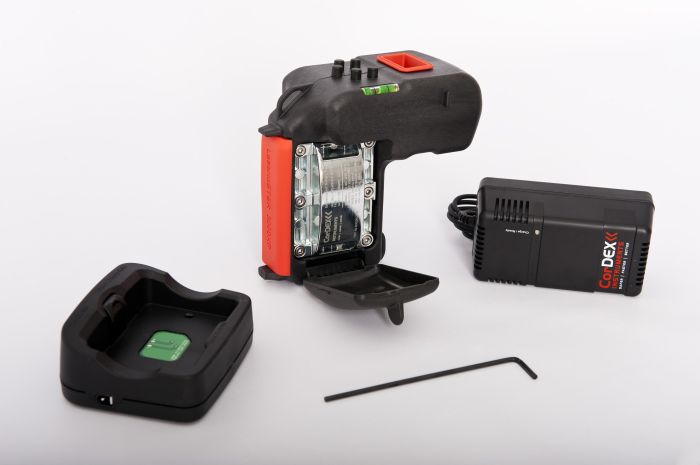

LaserMETER 3000XP is supplied complete as standard with:
- Explosion proof Laser Distance Meter
- Removable/Rechargeable battery
- Charging station
- Power pack
- Wrist strap
- Battery Removal Tool
- Documentation CD
| Certification information | |
| ATEX Certificate No | Sira 10ATEX1283X |
| IECEx Certificat No | IECEx SIR 10.0133X |
| ATEX/IECEx Certificate Type | I/II M2/2 G Ex d I/IIC T4 |
| CSA Certificate No | 2379424 |
| CSA Certificate Type | Class I Div.1 Groups B, C, D |
| Ambient Temperature | Tamb -20C to +50C (-4F to + 122F) |
| General Information | |
| Range | 0.5m to 30m (1.6ft to 118ft) |
| Measuring Accuracy | Typically: 3mm (0.01in) |
| Measurement Unit Displayed | 1mm (0.03in) |
| Laser Type/ Class | 635mm, <1 mW, II |
| Acc | IEC 60825-1 : 2001 |
| Body/ Lens and LCD | Cast Aluminium chassis with anti-static over mould/ Toughened Safety Glass |
| Emitted Wavelength | 620-690nm |
| IP | 65 |
| Detailed information | |
| Weight | <1kg (<2.2lbs) |
| Dimensions | 140L x 130H x 75W mm (5.5L x 5.1H x 2.9W in) |
| Functions | Pythagoras Volume Area |
| Electrical information | |
| Battery type | Removable and rechargeable |
| Capacity | 1100mAh |
| Cell Type | NiMH |
Datasheets & User Manuals
LaserMETER XP Series - Safe Operations Manual (ATEX/IECEx)
LaserMETER 3000XP User Manual (ATEX & IECEx)
LaserMETER 3000XP User Manual (CSA)
LaserMETER 3000XP Safe Operations Manual (CSA)
LaserMETER XP Series - ATEX Certificate
LaserMETER XP Series - IECEx Certificate
LaserMETER 3000XP - CSA Certificate
LaserMETER 3000XP - EC Declaration of Conformity
