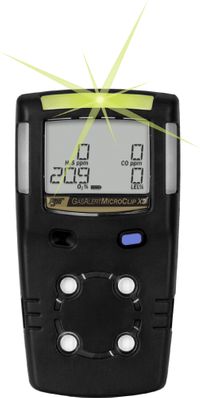

BW Technologies GasAlertMicroClip X3 4-Gas Detector, O2 / LEL / H2S / CO, Black, North America

Item #:
BW Technologies
Send This Page to a Friend

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us
Share this product:
BW Technologies GasAlertMicroClip X3 4-Gas Detector, O2 / LEL / H2S / CO, Black, North America

BW Technologies GasAlertMicroClip X3 4-Gas Detector, O2 / LEL / H2S / CO, Black, North America


GasAlertMicroClip X3 4-Gas Detector, O2/LEL/H2S/CO, Black, North America by BW Technologies

With that combination of benefits, it's no wonder the GasAlertMicroClip is the world's most popular multi-gas detector, serving as your trusted companion in hazardous environments - keeping you safe without weighing you down.

Plus, it's the first multi-gas detector with a rating of IP68 for unmatched water protection. So you can be confident it will stand up to challenging conditions.

Choose from two detectors, both with extended 18-hour battery runtime, one-button operation and Honeywell's rigorous approach to quality:

GasAlertMicroClip XL: low up-front cost with a two-year warranty.

GasAlertMicroClip X3: three-year warranty and a new oxygen sensor that extends overall operational life expectancy.

Use our unique advanced technology for safety, compliance and productivity.

  • Advanced engineering for reliable battery performance
  • Reflex Technology™ automated self-test function routinely checks the operating condition of the sensors to increase safety, up-time, and overall worker confidence
  • Compact, lightweight and easy to use - no expertise required
  • Flashing green IntelliFlash™ light for compliance at a glance

GasAlertMicroClip Standard Features:

  • Guaranteed runtime for at least a 12-hour shift - down to -20°C - without compromising LEL detection of hydrogen, acetylene and other combustible gases
  • Durable, rechargeable lithium polymer battery - tested to last in extreme environments
  • Ergonomic and wearable - doesn't weigh you down
  • Real-time gas concentrations shown on LCD
  • Bright, wide-angle visual alarm bars
  • IP68 rating ensures maximum protection against dust and water
  • User-friendly, tamper-proof operation with just one button and intuitive LCD icons
  • IntelliFlash™ light indicating detector has been bump tested and is monitoring correctly
  • Self-test of sensors, battery status, circuit integrity and audible/visual alarms on startup
  • Compatible with MicroDock II docking station for automated bump tests and calibration
  • Compatible with Fleet Manager II software for reporting and fleet management
  • Multi-language support in English, French, German, Spanish and Portuguese

New to GasAlertMicroClip X3:

  • Five-year life expectancy - plus a three-year warranty
  • An all-new oxygen sensor that operates consistently for five years - with no replacement costs for the life of the detector
  • Superior cost of ownership - with minimized maintenance and maximized uptime

Part Number: MCX3-XWHM-B-NA

GasAlertMicroClip XL & GasAlertMicroClip X3 Specifications
Size 4.4 x 2.4 x 1.2 in. / 11.3 x 6.0 x 3.2 cm
Weight GasAlertMicroClip XL: 6.7 oz. / 190 g
GasAlertMicroClip X3: 6.3 oz. / 179 g
Temperature -4 to +122°F / -20 to +50°C
Humidity 0% - 95% RH (non-condensing)
Alarms Visual, vibrating, audible (95 dB)
Low, High, STEL, OL (over limit)
Tests Audible/visual alarms on activation; sensors, battery and circuitry (continuous)
Typical battery life 18 hours; recharges in less than 6 hours
User options Confidence beep
Set STEL interval
Sensor on/off
Latching alarms
Safe display mode
Stealth mode
Calibration lock
Auto zero on start up
O2 auto calibration on start up
Set bump test interval
Force bump test when overdue
IntelliFlash™ interval
Combustible gas measurement (%LEL or % by volume methane)
User-settable calibration gas level
Force calibration when overdue
Low alarm acknowledge
Language choices
Set custom start up message
Ratings IP68
EMI/RFI: Complies with EMC Directive 2004/108/EC
Warranty Full two-year (GasAlertMicroClip XL) or three-year (GasAlertMicroClip X3) warranty including all sensors

Sensor Specifications
Measuring Range
0-100 ppm
1 ppm
0-500 ppm
1 ppm
Combustible gases
0-100% LEL
0-5.0% v/v
