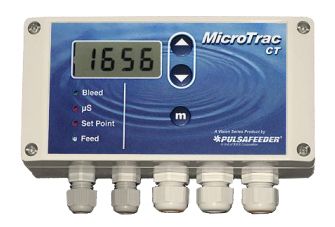

Quantrol MicroTrac Series Tower Controllers with Toroidal Probe, Bleed & Selectable Feed, Flow Assembly, Panel - MTC1PTA-XXX

MTC1PTA-XXX MicroTrac Series Tower Controllers with Toroidal Probe, Bleed & Selectable Feed, Flow Assembly, Panel by Quantrol

The MicroTrac is a microprocessor based feed and bleed toroidal conductivity controller designed to control conductivity and feed inhibitor in cooling tower systems. Featuring innovative toroidal sensor technology, the MicroTrac provides an economical control platform that is not susceptible to sensor fouling and never requires calibration! The MicroTrac toroidal conductivity sensor is factory calibrated for the life of the probe eliminating routine calibrations saves you valuable service time and money. By design, the MicroTrac toroidal conductivity sensor has no exposed electrodes, which means that there is nothing to wear out or foul. When installed according to the manufacturer's instructions, the need for routine sensor removal and cleaning is virtually eliminated.

The MicroTrac measures the conductivity of the cooling tower recirculating water via a toroidal conductivity sensor. The controller activates two independent relay outputs based on bleed and a selectable feed mode of operation. The MicroTrac conductivity controller has a 0 - 9,999 μS/cm range, making it ideal for other applications as well, such as rinse, industrial process, wastewater, etc.

Features

• Selectable rising or falling setpoint for open or closed loop control.
• Water meter pulse timer.
• Percent timer.
• % post bleed timer.
• Limit timer.

Operating Benefits

• Easy to use.
• No need to recalibrate.
• Reduced potential for fouling.
• Easy Installation.
• Two year warranty.
• Large range: 0 - 9,999 μS/cm.
• Simple user interface.

Controls

Timers

• Water Meter Pulse Timer
• Percent Timer
• % Post Bleed Timer
• Limit Timer

Aftermarket

• Solenoids
• Motorized Ball Valves
• Water Meters
• Corrosion Coupon Racks
• Metering Pumps (PULSAtron, XP Series)
