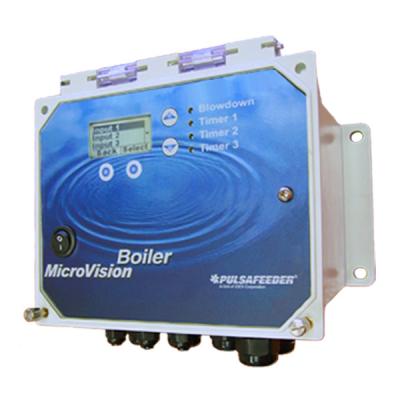

Quantrol MicroVision Single Boiler Blowdown Controller - MVBXPHXS025-XXX

MVBXPHXS025-XXX MicroVision Single Boiler Blowdown Controller by Quantrol

The MicroVision Boiler Controller delivers comprehensive boiler water control with 'plug & play' simplicity, at an outstanding value. This latest addition to the MicroVision family of controllers is configured specifically for boiler water control, and utilizes intuitive software which provides simple set-up, while providing state of the art maintenance of the water in your boiler. Features of this device include a reliable temperature compensated conductivity probe, 5 output relays with selectable timers, scalable 4-20mA output to report conductivity, hall-effect and pulse water meter inputs, digital drum levels and a boiler interlock input.

Pulsafeeder's line of Boiler Controllers are designed for simplicity and reliability. Offering affordable, high performance Boiler Controllers that are easy to specify and easy to use. Pulsafeeder Boiler Controllers offer versatile solutions to your fluid control problems. With selectable sampling modes, powered relays, selectable timers, and inputs to fit your needs. Pulsafeeder's MicroVision Boiler controller increases energy efficiency, reduces water consumption, reduces manpower and optimizes chemical utilization.

Features & Benefits

Simple Programming

• Factory preset to operate in timed sample mode right out of the box
• Intuitive menus make program alterations easy and understandable

Easy Installation and Easy to Use

• Pre-wired and conduit connections options make easy installation
• Large graphical display with status screen for instant access to system information
• LED function indicators
• Touch pad program keys provide clear and precise system information

Reliable Conductivity Probe

• Standard conductivity probe is rugged and reliable
• Temperature compensated for accurate readings from 0-20,000 μS

Selectable Sampling Modes

• Continuous
• Timed Sample
• Sample & Hold

5 Output Relays

• 1 powered relay for motorized ball valves or solenoid blowdown valves
• 3 powered relays for chemical metering pumps
• 1 dry contact relay for remote alarm

Selectable Timers

• Pulse
• Limit
• Percent
• 28 day
• Cycle

5 Digital Inputs

• 5 digital inputs total
• Drum level
• Dry contact water meter
• Hall effect
• Boiler interlock

4-20mA Output

• Isolated
• Scalable

Heavy Duty Enclosure

• NEMA 4X rated
• Easy Installation
