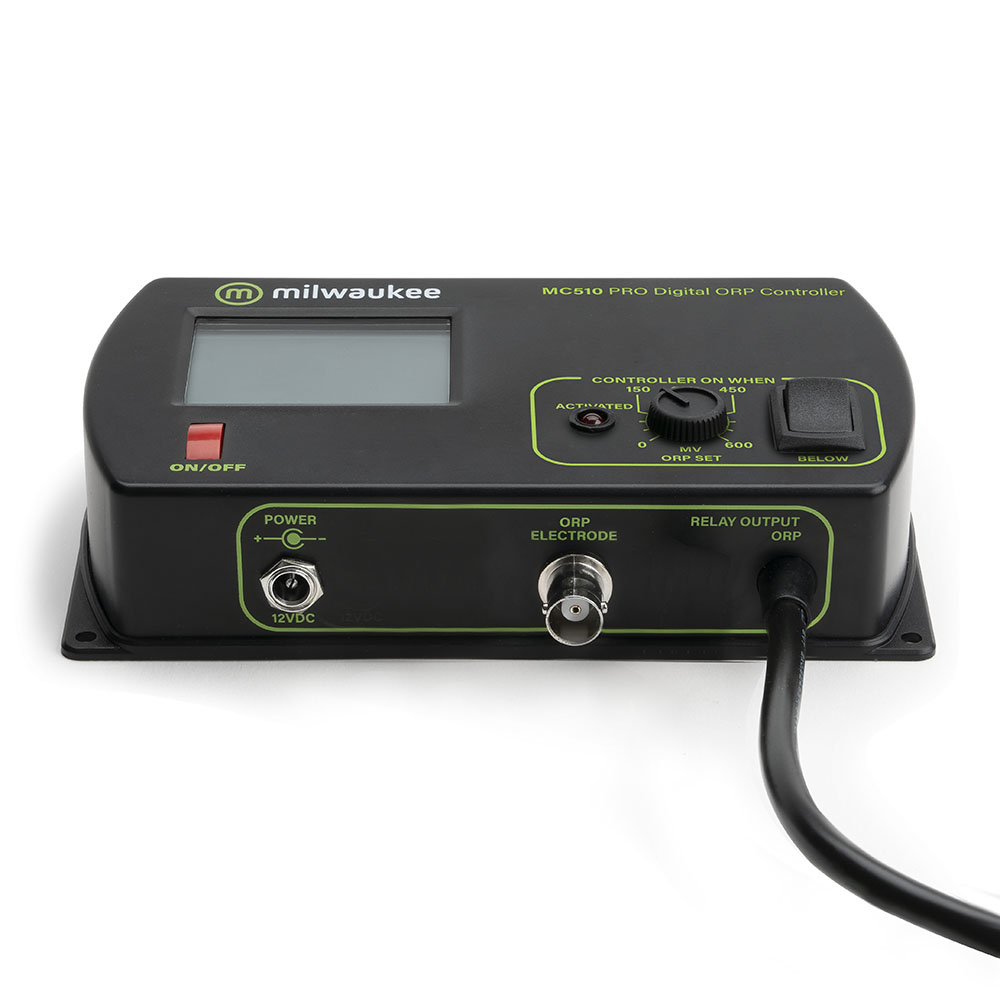

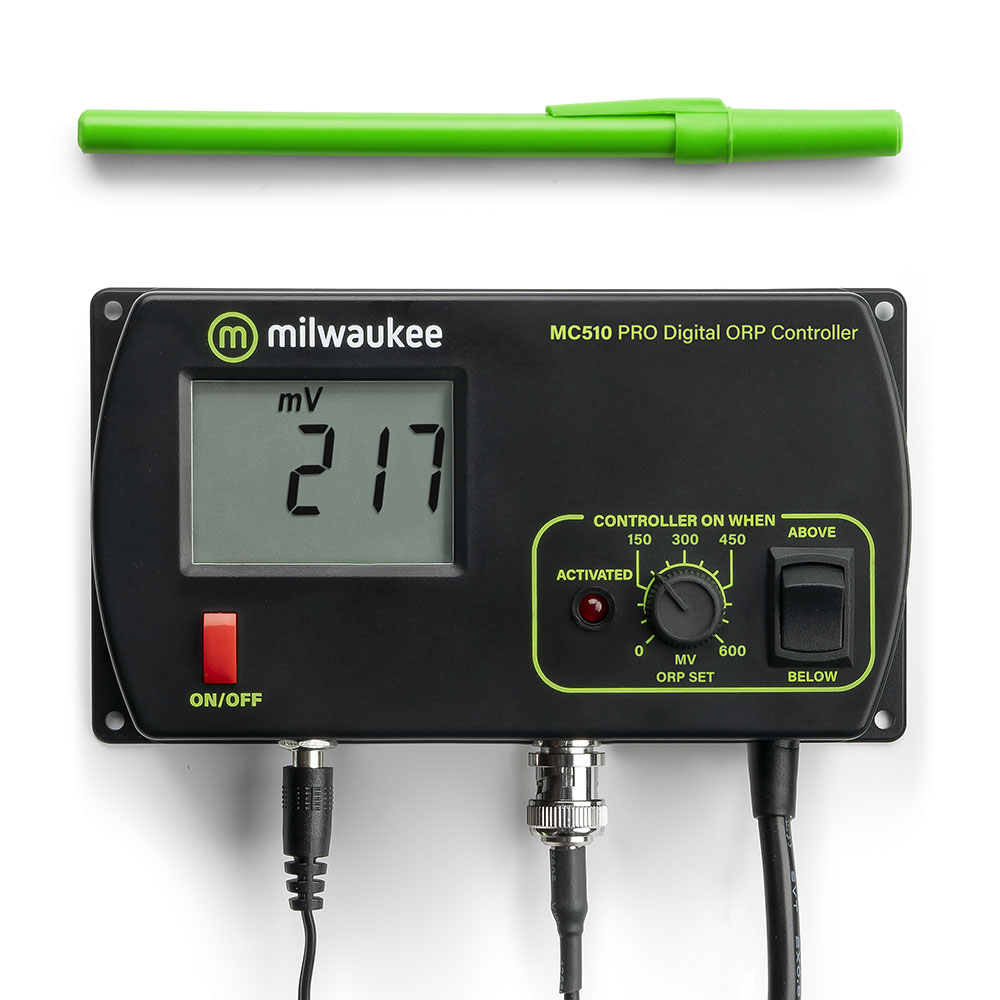

MC510 ORP Controller by Milwaukee

With Milwaukee's MC Controllers you can monitor and control pH and/or ORP levels.

The Milwaukee Instruments "MC" Controllers have a user selectable set point and a visual "Power Activated" LED notification light. Power to the controller box is turned on when the reading is Above or Below ( user selected ) the selected set point. These MC Controllers are ideal for CO2 or ozone dosing.

With each Milwaukee Smart controller, your aquarium will have the individual attention that it needs.

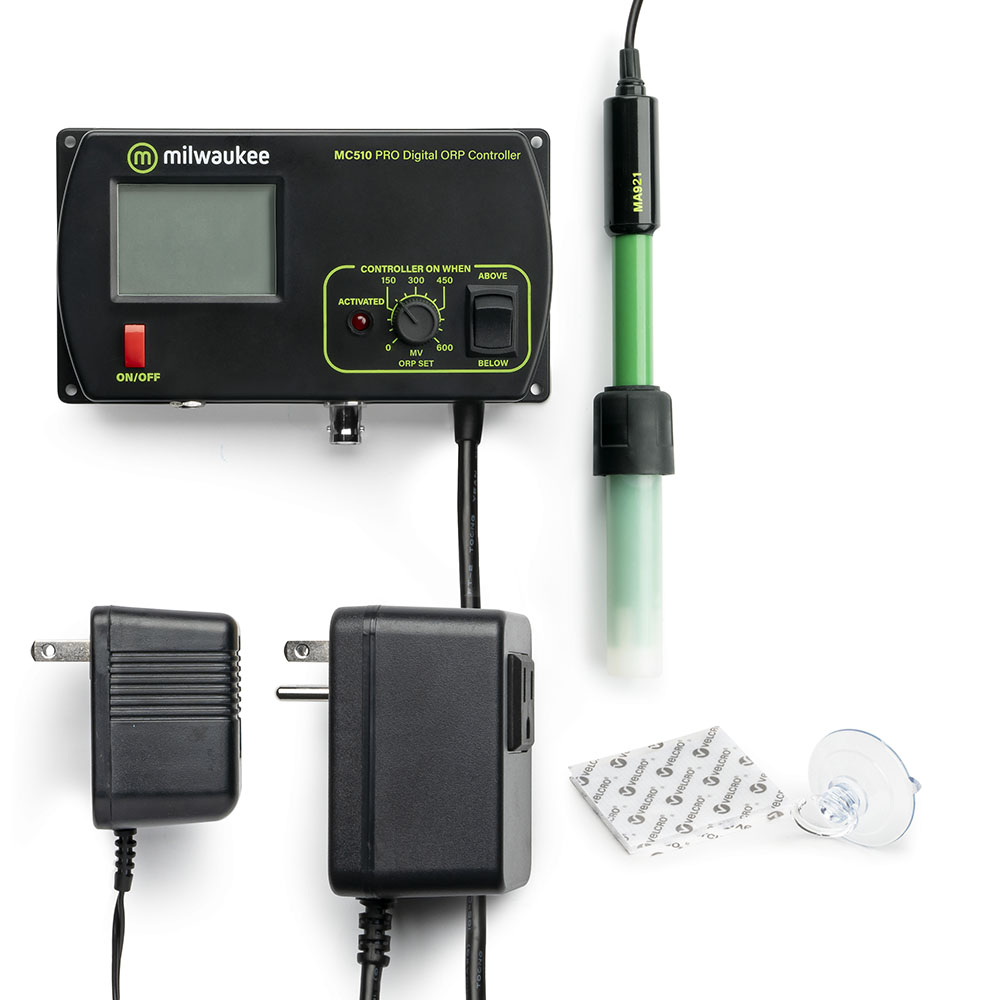

Each unit comes with 12 VDC adapter, mounting kit, probe, probe holder and starter calibration solution for pH. (factory calibrated for ORP)

  • User selectable Hi/Low Set Point
  • Visual LED alarm
  • Supplied with 12 VDC adapter
  • 1 power plug for O3 dosing
  • Platinum ORP electrode (BNC connector)
Range ±1000 mV (ORP)
Resolution 1 mV (ORP)
Accuracy (@25°C) ±5 mV (ORP)
Set point ORP 0 to 600 mV
Alarm active when measurement is higher or lower than selected set points
Output power socket relay, 230V / 117V; 8A
Output active when measurement is higher or lower than selected set points
ORP Electrode MA921B/2 (included)
Environment 0 to 50°C / 32 to 122°F; max RH 95%
Power Supply 12 VDC power adapter (included)
Power Drivers 115VAC, 2A, 60Hz or 230VAC, 1A, 50Hz
Dimensions 148.5 x 82.5 x 32 mm
Weight 180 g (meter only)
