Atago Abbe Refractometer - NAR-1T LIQUID

Item #:

NAR-1T-LIQUID

Brand:

Atago U.S.A.

$Atago Abbe Refractometer - NAR-1T LIQUID$

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us

Share this product:

Description

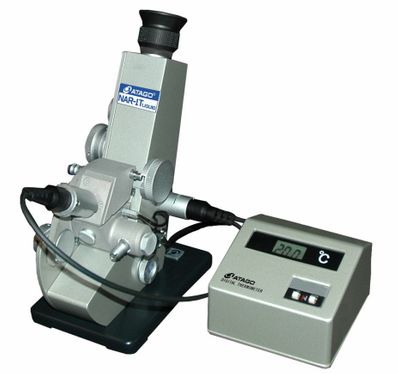

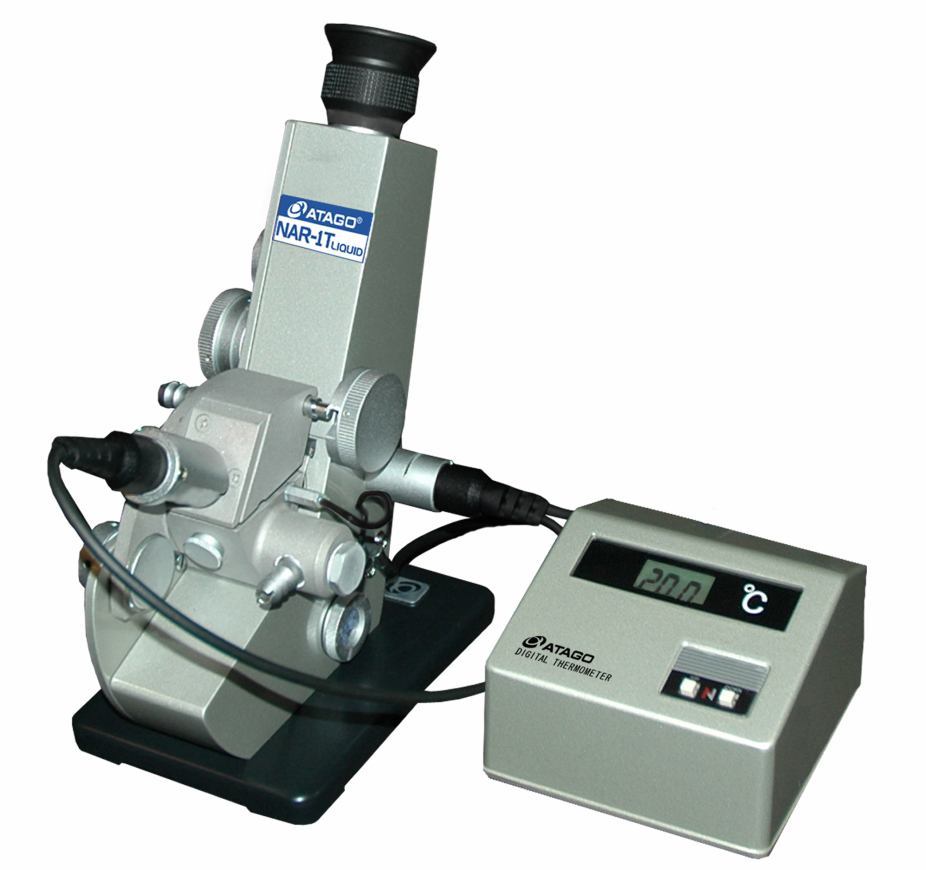

NAR-1T LIQUID Abbe Refractometer by Atago U.S.A.

This is the Abbe Rerfactometer for liquid sample measurement only. It has the Refractive Index Scale and the BRIX scale, and it comes with D line (589nm) light source. Calibration can be done with distilled water.

Specifications

Measurement range	Refractive index (nD) 1.3000 to 1.7000 Brix 0.0 to 95.0%
Minimum scale	Refractive Index (nD) 0.001 Brix 0.5%
Measurement Accuracy	Refractive index (nD) ± 0.0002 Brix ± 0.1%
Measurement Temperature Range	5 to 50°C
Digital Thermometer	Indication range 0.0 to 50.0°C (Accuracy ±0.2°C, Minimum indication 0.1°C)
Power Supply	AC100 to 240V , 50/60Hz
Light Source	LED
Power Consumption	5VA
Dimensions & Weight	13×18×23cm, 2.5kg (Refractometer) 10×11×7cm, 0.5kg (Thermometer)
Optional	• 10% Sucrose Solution (±0.03%) : RE-110010 • 20% Sucrose Solution (±0.03%) : RE-110020 • 30% Sucrose Solution (±0.03%) : RE-110030 • 40% Sucrose Solution (±0.04%) : RE-110040 • 50% Sucrose Solution (±0.05%) : RE-110050 • 60% Sucrose Solution (±0.05%) : RE-110060 * Calibration Certificate : Contact an ATAGO representative for details.
Parts	*As for the consumable & the part please view this.
