Atago Hand-held "Pocket" Refractometer for Ethylene glycol - PAL-91S
Item #:
PAL-91S
Brand:
Atago U.S.A.
Share this product:

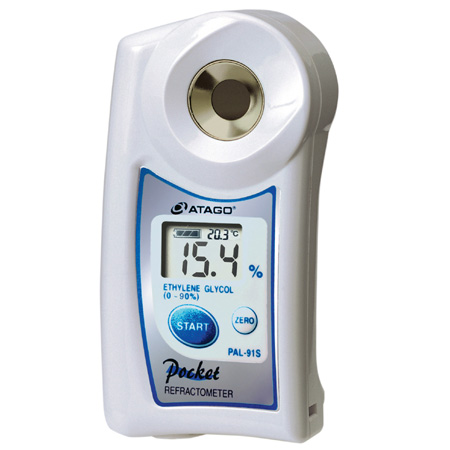

PAL-91S Pocket Refractometer for Ethylene glycol by Atago U.S.A.
The "Pocket" coolant refractometer PAL-91S, easily measure the coolant in brine and other agents of Ethylene Glycol. Measured value displayed digitally. The freezing point of the sample can also be measured and displayed. Antifreezing solution (coolant) whose main ingredient is ethylene glycol is widely used as mixed in cooling water of car's radiator, as cooling medium for central air - conditioning system, freezer / refrigerator, cooling coil, cooling fixture, and so on. The higher the concentration is, the lower the temperature at which ethylene glycol is frozen is. Therefore, it is needed to adjust freezing temperature of antifreezing solution so that it dose not freeze under a specific operation temperature.
Applications
- The "Pocket" Ethylene Glycol refractometer, PAL-91S and PAL-92S, easily measure the coolant in brine and other agents of Ethylene Glycol.
- Measured value displayed digitally.
- The freezing point of the sample can also be measured and displayed.
Features
- Calibration with water only
- Measurement in 3 seconds
- Extremely water resistant (IP65)
- Light & Compact, 100g
- Ergonomically designed for easy, one-handed operation
- Convenient storage case
- Automatic Temperature Compensation (ATC)
- Designed with a strap holder option
| Measurement Range | Ethylene glycol 0.0 to 90.0% (V/V) (ATC) Freezing point of Ethylene glycol : 0 to -50°C (ATC) |
| Resolution | Ethylene glycol : 0.2% (V/V) Freezing point of Ethylene glycol : 1°C |
| Measurement Accuracy | Ethylene glycol: ±0.4 %(V/V) Freezing point of Ethylene glycol: ±1°C |
| Power Supply | 2 × AAA Batteries |
| Measurement Temperature | 10 to 40°C |
| Dimensions & Weight | 55(v)×31(D)×109(H)mm, 100g (Main Unit only) |
| Optional | • PAL-CASE : RE-39409 |
