Quantrol Single 10" Cartridge Housing, 304SS - QFP1X10-3/4

Item #:
QFP1X10-3-4
Brand:
Quantrol
Quantrol Single 10" Cartridge Housing, 304SS - QFP1X10-3/4
$275.00
Qty
Send This Page to a Friend

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us
Share this product:
Quantrol Single 10" Cartridge Housing, 304SS - QFP1X10-3/4

Quantrol Single 10" Cartridge Housing, 304SS - QFP1X10-3/4

$275.00

QFP1X10-3/4 Single 10" Cartridge Housing, 304SS by Quantrol

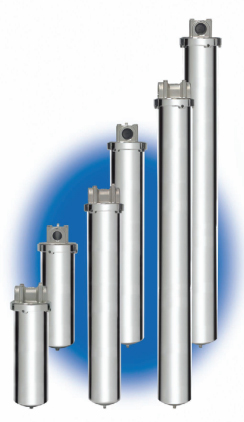

QFP1X Series housings are designed for demanding industrial and commercial applications. Heavy duty 316L stainless steel constructio nprovides maximum durability and corrosion resistance. Ring nut closure allows for easy access and quick cartridge changeouts. Available in 10, 20 and 30" lengths with flow rates up to 21 GPM to best fit your application requirements.

Features

  • Designed for industrial and commercial applications
  • Heavy duty cast head with mounting bracket
  • Constructed of corrosion resistant 316L Stainless Steel
  • 300 PSI @ 200 Fpressure rating
  • Ring nut closure for easy cartridge change out (wrench included)
  • Spring loaded knife edge bottom cup provides a positive seal
  • Buna O-Ring seal
  • 1/8" bottom drain with plug
  • For use with double open end filter cartridges
  • Maximum cartridge diameter 2.75"
  • Made in the USA
Model Number
Material
Cartridge Type
Cartridge Length
Inlet/Outlet
GPM Depth Cartridge
GPM Pleated Cartridge
QFP1X10-3/4
316L SS
DOE
9.75" - 10"
3/4" FNPT
5
7
QFP1X20-3/4
316L SS
DOE
19.5" - 20"
3/4" FNPT
10
14
QFP1X20-1.0
316L SS
DOE
19.5" - 20"
1.0" FNPT
10
14
QFP1X30-1.0
316L SS
DOE
29.5" - 30"
1.0" FNPT
15
21
