Belimo Motorized Ball Valves - Spring Return

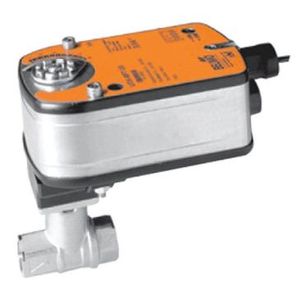

MBVSR-1/2 Belimo Motorized Ball Valves - Spring Return, 1/2", 212°F, 150 PSI Max by Quantrol

MBVSR series spring return motorized ball valves are recommended for cooling tower bleed applications. Powerful LF actuator with 35 inch pounds of torque ensures that the valve open sand closes as required. These standard port valves pass suspended solids more efficiently than solenoid valves, thus are less likely to stick open or closed. Maintenance requirements are reduced and reliability is significantly increased.

• Nickel Plated Brass Valve Body
• Stainless Steel Ball and Stem
• NEMA 2 Actuator Housing
• Motor Open = 40 to 75 Seconds
• Spring Return <25 Seconds
• Open/Close Visual Indicator
• 250° F Max Temperature
• 36", 18 Gauge, 2 Wire Cable

MBVSR-3/4 Belimo Motorized Ball Valves - Spring Return, 3/4", 212°F, 150 PSI Max by Quantrol

MBVSR series spring return motorized ball valves are recommended for cooling tower bleed applications. Powerful LF actuator with 35 inch pounds of torque ensures that the valve open sand closes as required. These standard port valves pass suspended solids more efficiently than solenoid valves, thus are less likely to stick open or closed. Maintenance requirements are reduced and reliability is significantly increased.

• Nickel Plated Brass Valve Body
• Stainless Steel Ball and Stem
• NEMA 2 Actuator Housing
• Motor Open = 40 to 75 Seconds
• Spring Return <25 Seconds
• Open/Close Visual Indicator
• 250° F Max Temperature
• 36", 18 Gauge, 2 Wire Cable

MBVSR-1.0 Belimo Motorized Ball Valves - Spring Return, 1.0", 212°F, 150 PSI Max by Quantrol

MBVSR series spring return motorized ball valves are recommended for cooling tower bleed applications. Powerful LF actuator with 35 inch pounds of torque ensures that the valve open sand closes as required. These standard port valves pass suspended solids more efficiently than solenoid valves, thus are less likely to stick open or closed. Maintenance requirements are reduced and reliability is significantly increased.

• Nickel Plated Brass Valve Body
• Stainless Steel Ball and Stem
• NEMA 2 Actuator Housing
• Motor Open = 40 to 75 Seconds
• Spring Return <25 Seconds
• Open/Close Visual Indicator
• 250° F Max Temperature
• 36", 18 Gauge, 2 Wire Cable

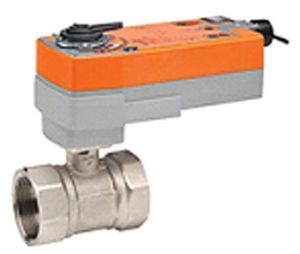

MBVSR-1.5 Belimo Motorized Ball Valves - Spring Return, 1.5", 212°F, 150 PSI Max by Quantrol

MBVSR series spring return motorized ball valves are recommended for cooling tower bleed applications. Powerful AFRBUP actuator with 180 inch pounds of torque ensures that the valve open sand closes as required. These standard port valves pass suspended solids more efficiently than solenoid valves, thus are less likely to stick open or closed. Maintenance requirements are reduced and reliability is significantly increased.

• Nickel Plated Brass Valve Body
• Stainless Steel Ball and Stem
• NEMA 2 Actuator Housing
• Motor Open < 75 Seconds
• Spring Return <20 Seconds
• Open/Close Visual Indicator
• Manual Override, 5mm Hex Crank
• 212°F Max Temperature

MBVSR-2.0 Belimo Motorized Ball Valves - Spring Return, 2.0", 212°F, 150 PSI Max by Quantrol

MBVSR series spring return motorized ball valves are recommended for cooling tower bleed applications. Powerful AFRBUP actuator with 180 inch pounds of torque ensures that the valve open sand closes as required. These standard port valves pass suspended solids more efficiently than solenoid valves, thus are less likely to stick open or closed. Maintenance requirements are reduced and reliability is significantly increased.

• Nickel Plated Brass Valve Body
• Stainless Steel Ball and Stem
• NEMA 2 Actuator Housing
• Motor Open < 75 Seconds
• Spring Return <20 Seconds
• Open/Close Visual Indicator
• Manual Override, 5mm Hex Crank
• 212°F Max Temperature

MBVSR-1/2HT Belimo Motorized Ball Valves - Spring Return, 1/2", 280°F, 35 PSI Max for Low Pressure Boilers by Quantrol

MBVSR series spring return motorized ball valves are recommended for cooling tower bleed applications. Powerful LF actuator with 35 inch pounds of torque ensures that the valve open sand closes as required. These standard port valves pass suspended solids more efficiently than solenoid valves, thus are less likely to stick open or closed. Maintenance requirements are reduced and reliability is significantly increased.

• Nickel Plated Brass Valve Body
• Stainless Steel Ball and Stem
• NEMA 2 Actuator Housing
• Motor Open = 40 to 75 Seconds
• Spring Return <25 Seconds
• Open/Close Visual Indicator
• 250° F Max Temperature
• 36", 18 Gauge, 2 Wire Cable

Weather Shield for 1/2, 3/4 & 1.0"

Weather Shield for 1.5 & 2.0"

Add 10', Two-Pronged Plug to Pigtail
