D01-S005-011 MeshGuard Stainless Steel Detector, Sulfur Dioxide by RAE Systems

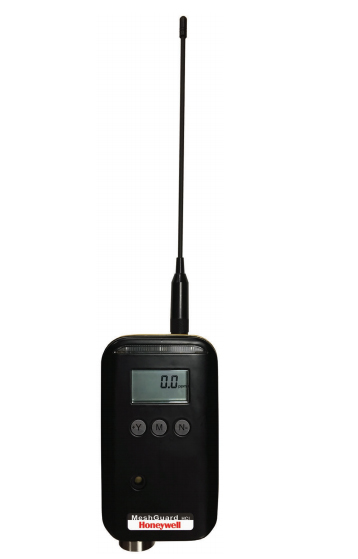

The RAE Systems by Honeywell MeshGuard gas detection monitor is a key building block of the MeshGuard intelligent network of connected sensors for gas detection in industrial safety and oil and gas applications.

The MeshGuard system is designed for quick deployment in areas where low cost/high ROI solutions are required. MeshGuard is available with field-replaceable precision sensors specifically designed to sense toxic and flammable gases.

Key Features

  • Stainless Steel housing
  • Self-forming wireless network; units come online automatically
  • Compact and lightweight
  • IP-65 rated weather resistant, and splash guard equipped for sensor protection
  • Multiple controller options for realtime wireless data collection and viewing
  • Self-healing network automatically routes data back to controller through best wireless path available
  • Battery powered operation for up to 6 months
  • SolarPak provides 24/7 uptime
  • Intrinsically Safe
  • Magnetic mounting option for quick and easy MeshGuard installation

Applications

  • Oil and gas drilling operations
  • Oil and gas production
  • Plant maintenance turnarounds
  • Industrial safety
  • Tank farms
  • Shipyards and maritime
  • Fast deployment and decommissioning time
  • Simple to install and operate
  • Rugged and reliable
  • Versatile to accommodate many applications

MeshGuard Detector Includes:

  • MeshGuard detector with sensor as specified
  • Operation and maintenance manual
  • Calibration gas test adapter
  • Enhanced-capacity Lithium battery installed
  • Maintenance tool
SENSOR SPECIFICATIONS
Sensor Range Resolution Response Time
H2S 0 to 100 ppm 0.1 ppm T90 < 30 sec / T10 < 30 sec
H2S 0 to 1000 ppm 1 ppm T90 < 45 sec / T10 < 45 sec
LEL / LEL IR 0 to 100% LEL 1% LEL T90 < 30 sec / T10 < 30 sec
CO 0 to 2000 ppm 1 ppm T90 < 30 sec / T10 < 30 sec
CO2 IR 0 to 50% Vol
0 to 100% Vol
0.01% Vol
0.1% Vol
T90 < 30 sec / T10 < 30 sec
O2 0 to 25% Vol 0.1% Vol T90 < 15 sec / T10 < 15 sec
NH3 0 to 100 ppm 1 ppm T90 < 30 sec / T10 < 90 sec
Cl2 0 to 10 ppm 0.1 ppm T90 < 30 sec / T10 < 30 sec
SO2 0 to 20 ppm
0 to 100 ppm
0.1 ppm
1 ppm
T90 < 60 sec / T10 < 60 sec
HCN 0-50 ppm 0.5 ppm T90 < 200 sec / T10 < 200 sec
NO 0-250 ppm 0.5 ppm T90 < 45 sec / T10 < 45 sec
PH3 0-20 ppm 0.1 ppm T90 < 60 sec / T10 < 60 sec
HCl 0-15 ppm 1 ppm T90 < 200 sec / T10 < 200 sec
ETO-A 0-100 ppm 1 ppm T90 < 45 sec / T10 < 45 sec
ETO-B 0-10 ppm 0.1 ppm T90 < 45 sec / T10 < 45 sec
ETO-C 0-500 ppm 10 ppm T90 < 45 sec / T10 < 45 sec
NO2 0-20 ppm 0.1 ppm T90 < 45 sec / T10 < 45 sec
HF 0-10 ppm 0.1 ppm T90 < 200 sec / T10 < 200 sec

DETECTOR SPECIFICATIONS
Basic parameters
Visual Alarm 2 super-bright red LEDs
Audible Alarm 90dB @ 30cm
Calibration Two-point field calibration
RF Frequency 2.4GHz ISM Band, IEEE 802.15.4 standard compliant
Operating Range 300 meters / 985 feet (line of sight)
Keypad Three operation and programming keys
Display Customised LCD (1" x 1.5"/ 72mm x 108mm) with backlight
Power Supply Disposable Lithium Battery, +3.6V (optional rechargeable external battery for extended run time)
Operating Time Toxic Gas Sensors: Up to 6 months on internal battery (up to 2 years on external)
Flammable Gas Sensor: Up to 21 days on external PowerPak battery
LEL IR Gas Sensor: Up to 2 months on internal battery** (up to 1 year on external)
IP Rating IP-65
Environmantal parameters
Operating Temperature -40° C to +50° C (-40° F to 122° F) for LEL, LEL IR, CO and H2S sensors.
Other sensors: -20° C to +50° C (-4° F to 122° F)
Humidity 5% to 95% relative humidity, non-condensing
Physical parameters
Size 6.2" H x 3.7" W x2.0" D (15.7cm x 9.3cm x 5.1 cm)
Weight 1.2 Kg (2.6 lbs)
Certifications
Wireless Frequency ISM license free band, IEEE 802.15.4 2.4 GHz
Wireless Approvals PCC Part 15, CE R&TTE, Others***
Radio Module Supports RM2400A
Certifications US and Canada: Class I, Division 1, Groups A, B, C,D, T4
Europe: ATEX IM1/II 1G Ex ia I/IIC T4
Customs Union: PO Ex ia I Ma/0Ex ia IIC T4 Ga PB Ex d ia I Mb/1Ex d ia IIC T4 Gb
Contact manufacturer for country-specific certification
