Sauermann Si-RP4 wireless pressure probe - 28144

Sauermann Si-RP4 wireless pressure probe - 28144

$173.87

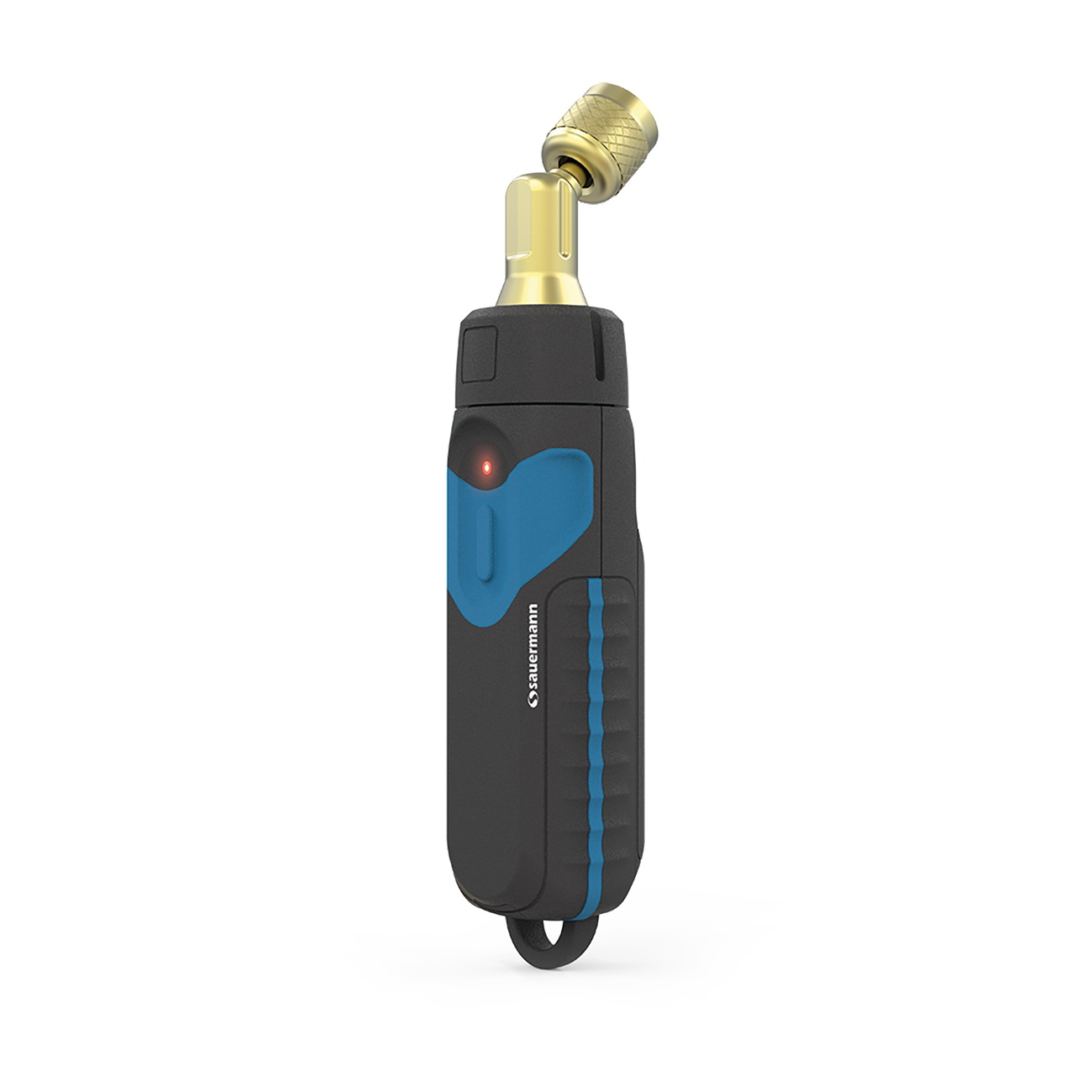

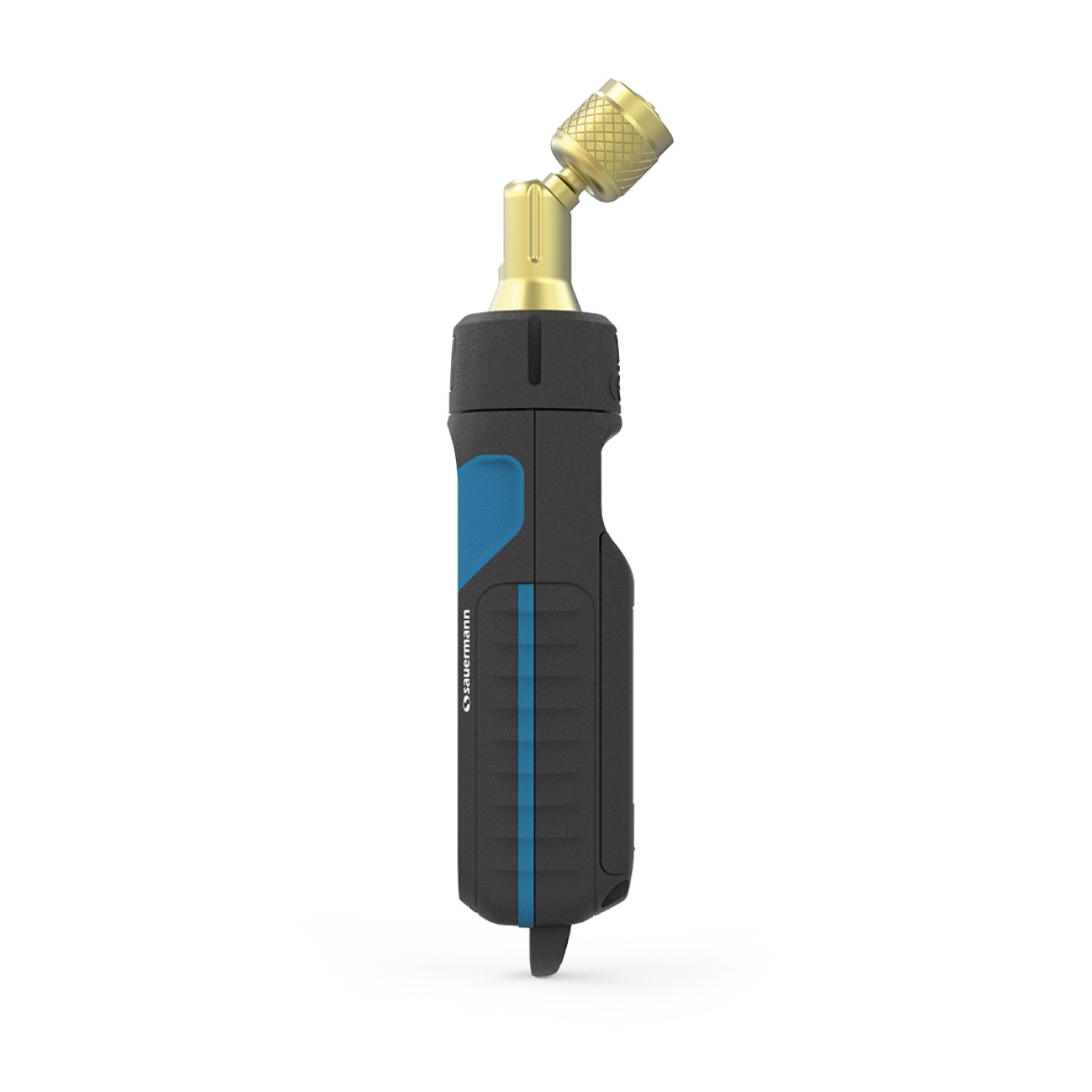

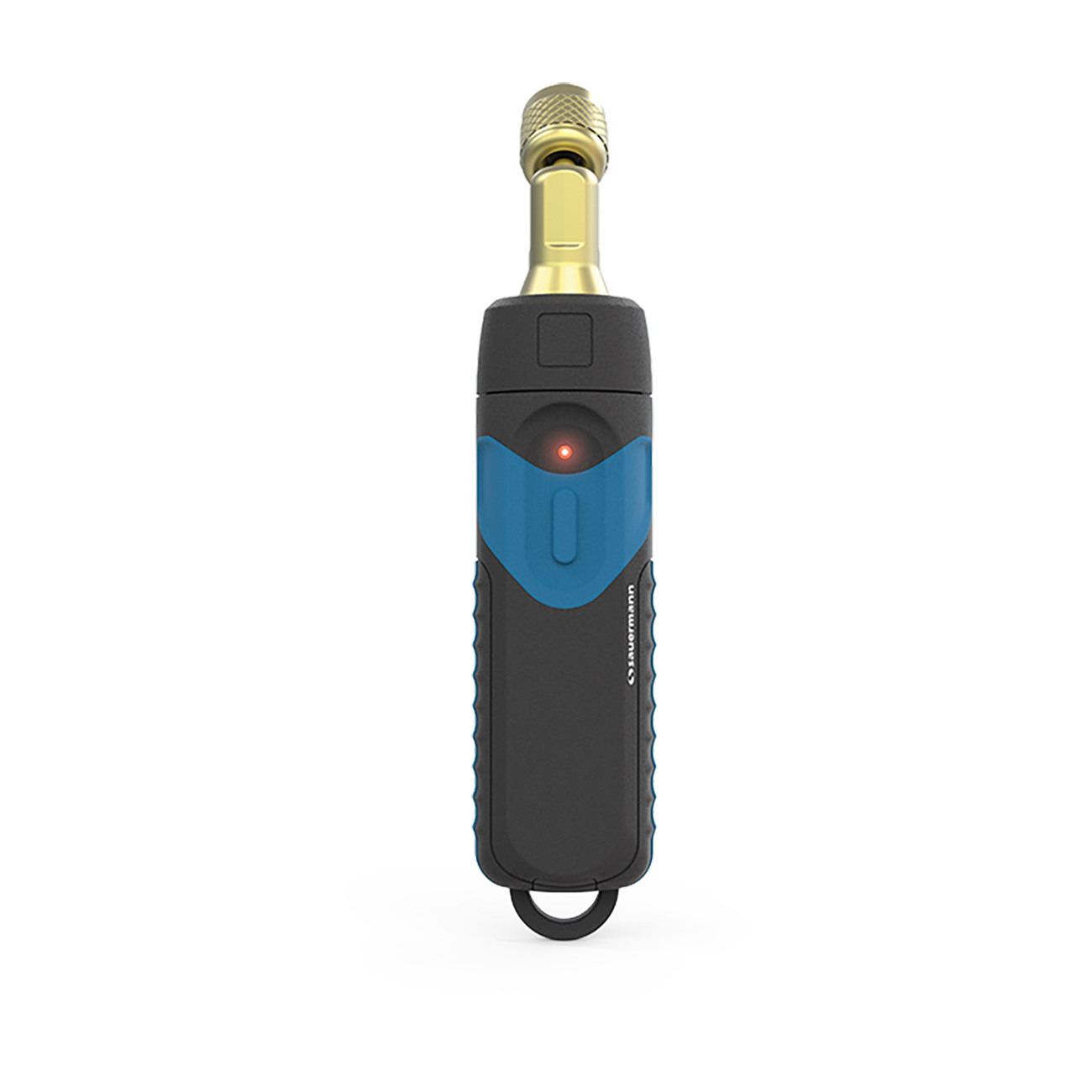

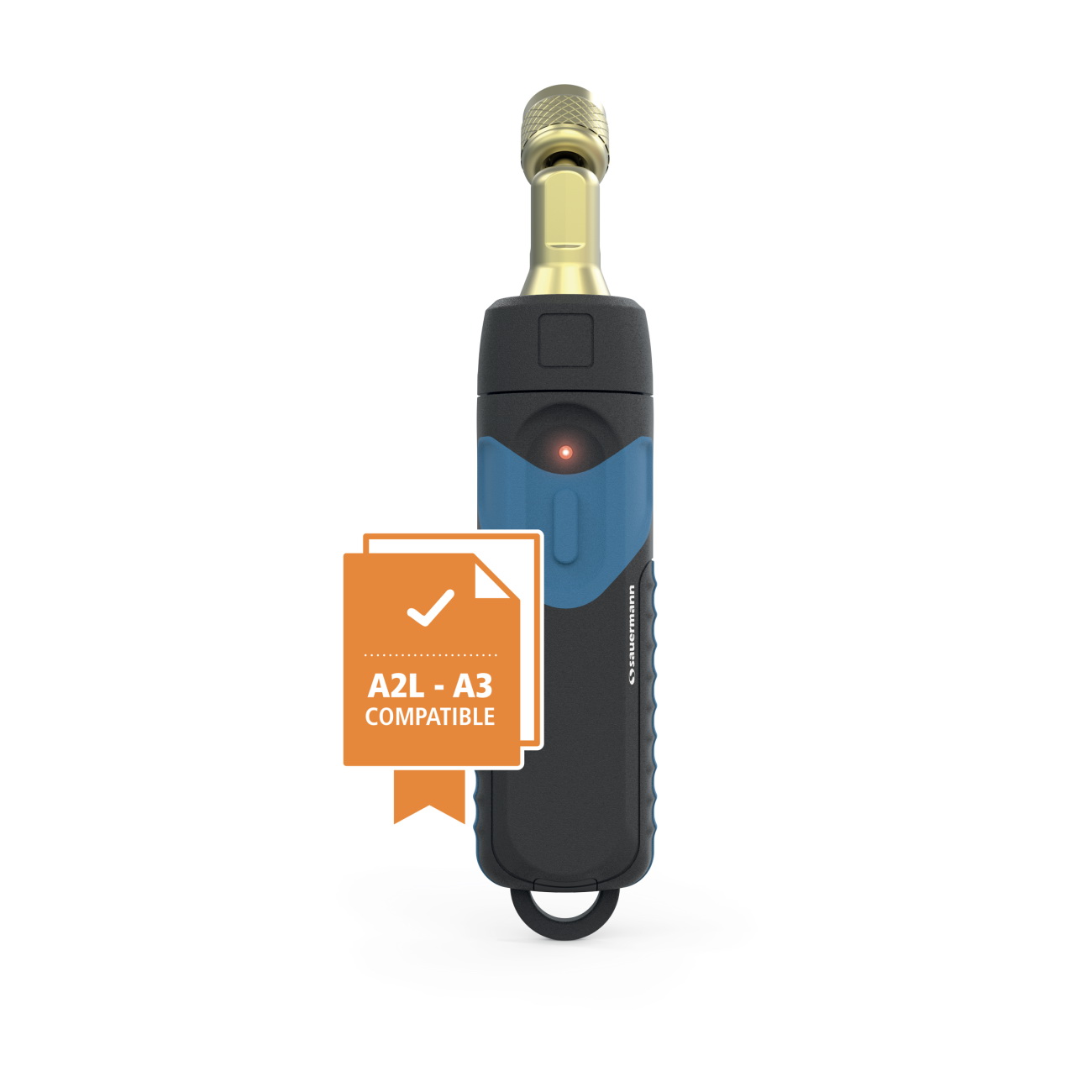

28144 Si-RP4 wireless pressure probe by Sauermann

This wireless pressure probe provides accurate high and low-pressure measurements for air conditioning, refrigeration and heat pump installations.

The Si-RP4 allows all types of refrigerant-based installations to be serviced quickly and safely. It connects easily to the mobile application Sauermann Pilot via a low-power wireless communication protocol.

Features

  • A1, A2L and A3 refrigerants compatible
  • Light and curved design for easy plug-in
  • Quick & Strong wireless auto connection (100 m range)
  • Real time readings through direct connection to mobile app
  • IP54 dust & rain proof probe
TECHNICAL FEATURES
Pressure
Measuring range From -1 to 60 bar (-14 to 870 psi)
Pressure sensing accuracy* ±0.5% of full scale
Available units bar, psi, kPa, MPa
Resolution 0.01 bar / 0.1 psi / 1 kPa / 0.001 MPa
Overload 65 bar (943 psi)
Burst pressure 150 bar (2175 psi)
Device
Operating temperature From -20 to 50°C (-4 to 122°F)
Storage temperature From -20 to 50°C (-4 to 122°F)
Power supply 3x LR03 AAA 1.5 V alkaline batteries
Battery life 150 h @ 20°C / 68°F
Wireless frequency Range frequency from 2402 MHz to 2480 MHz with a transmission power of 8 dBm.
Wireless range Range between manifold and wireless probes up to 100 m (328 ft).
App connection: depends on smartphone radio strength, range up to 100 m (328 ft).
Compatibility Smartphone minimum required versions: Android 11.0, iOS 15, BLE 5.0*
Connections 1x 1/4 FFL female
Environmental conditions of use In non-condensing condition Altitude: from 0 to 2000 m (0 to 6561') Non-corrosive gases
European directives 2011/65/EU RoHS II; 2012/19/EU WEEE; 2014/53/EU RED
HOUSING
Weight 200 g (0.44 lb)
Control 1 on/off button
Material Polyamide 6.6 + 30% glass fiber & TPE
Protection IP54
