Sauermann Si-RVP1-110V two stage vacuum pump 3 CFM - 28155
Item #:
SAU-28155
Brand:
Sauermann
Share this product:

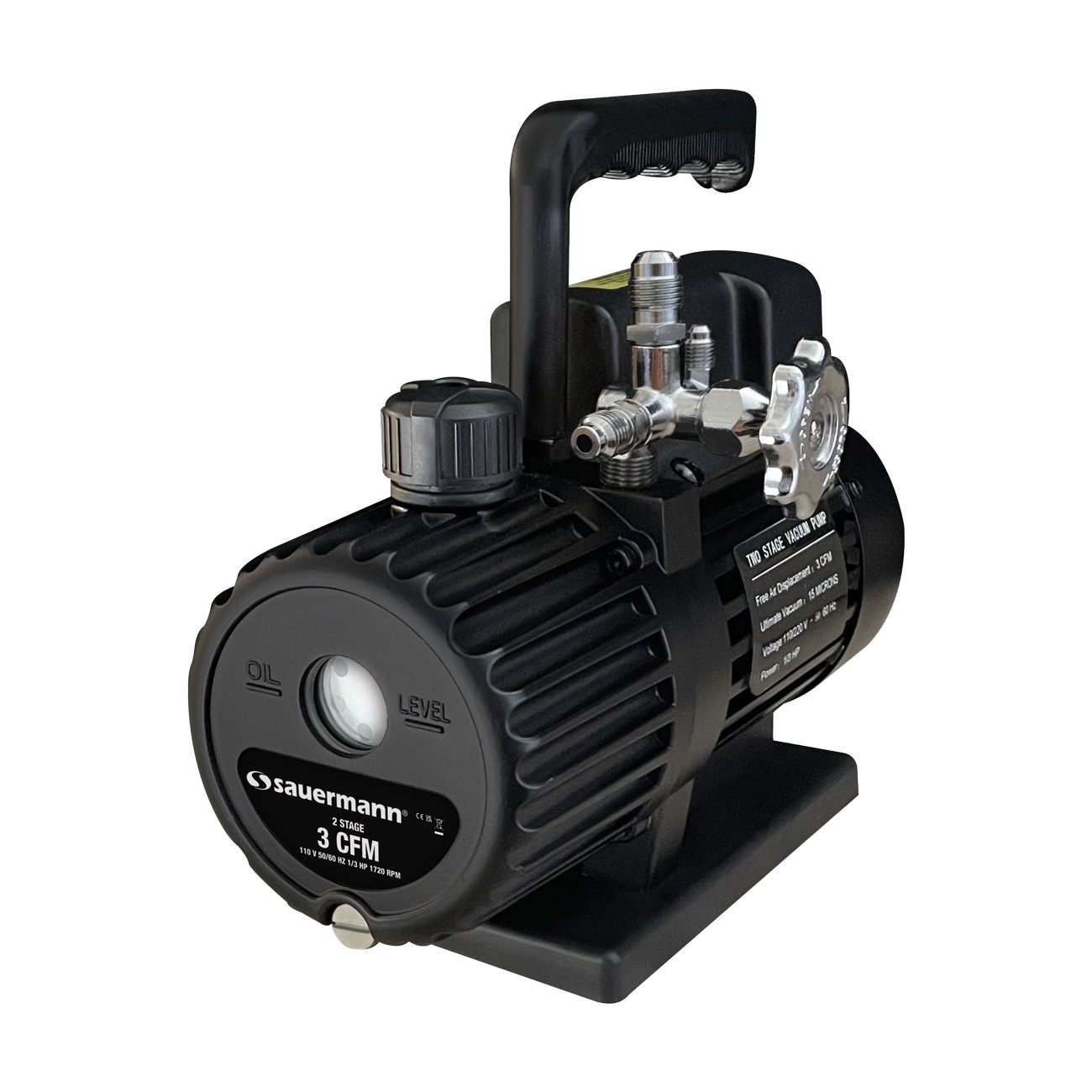

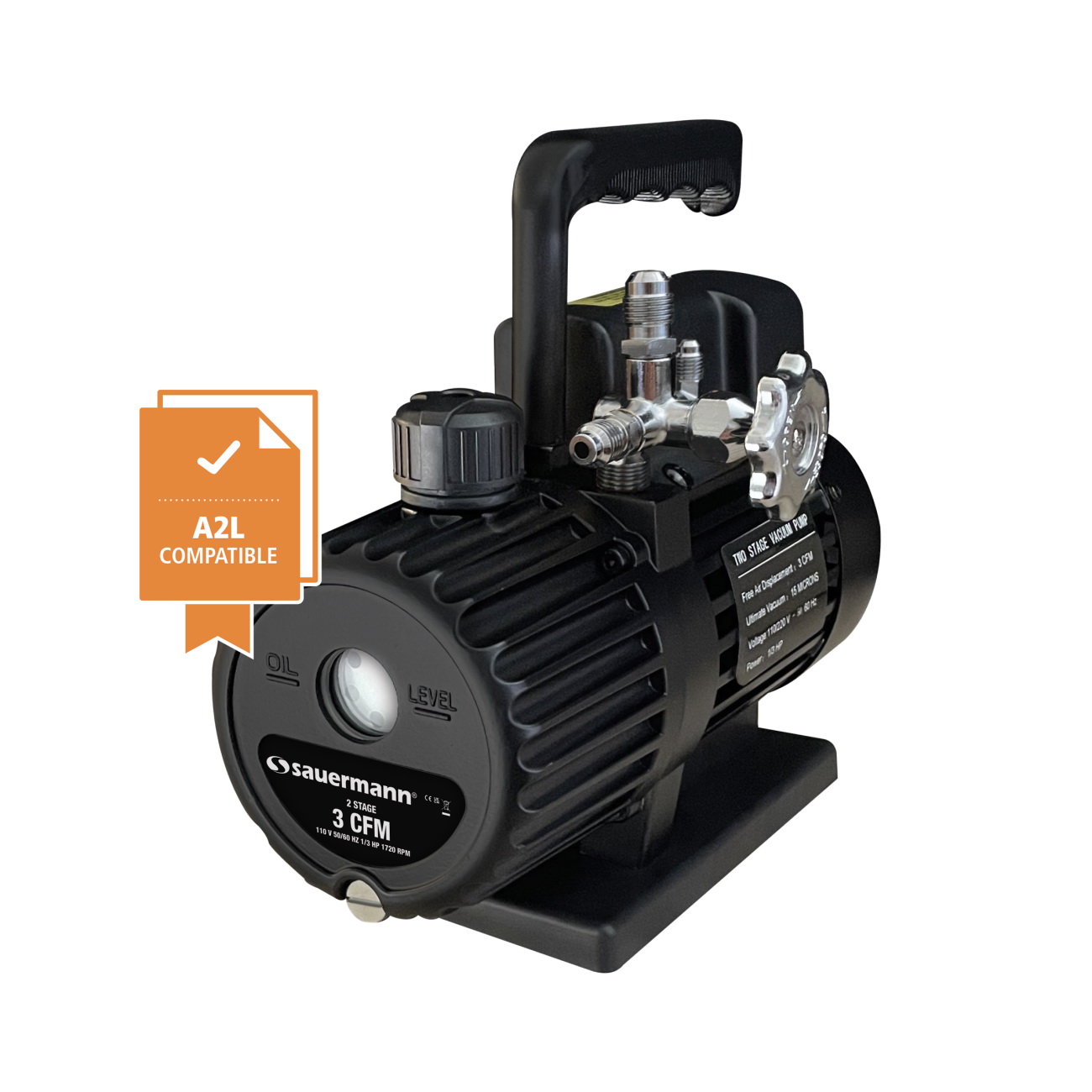

28155 Si-RVP1-110V two stage vacuum pump 3 CFM by Sauermann
Sauermann Si-RVP1-220V, Si-RVP3-220V, Si-RVP1-110V and Si-RVP2-110V vacuum pumps are durable and time tested to stand up to the most grueling conditions and will provide years of reliable service. This vacuum pump provides the power and mobility necessary for a wide variety of applications.
Features
- Refined cartridge machining process creates an improved surface finish extending the longevity of the pump life
- Expanded internal oil path creates less friction and ultimately less heat
- Upgraded seals insure maximum vacuum
| Designation (Sales reference) | Si-RVP1-220V (28154) solenoid valve |
Si-RVP3-220V (28156) spark free |
Si-RVP1-110V (28155) manual valve |
Si-RVP2-110V (28157) manual valve |
| Number of stages | 2 |
2 |
2 |
2 |
| Free air displacement | 85 l/min (60 Hz) 70 l/min (50 Hz) |
170 l/min (60 Hz) 142 l/min (50 Hz) |
3 CFM |
6 CFM |
| Ultimate vacuum | 15 microns |
15 microns |
15 microns |
15 microns |
| Motor | 1/3 HP |
1/2 HP |
1/3 HP |
1/2 HP |
| Pump speed | 1440 RPM |
1440 RPM |
1720 RPM |
1720 RPM |
| Electrical specifications | 110/220 V, 50/60 Hz |
110/220 V, 50/60 Hz |
110/220 V, 50/60 Hz |
110/220 V, 50/60 Hz |
| Power | 220 V Cable (Schuko) |
220 V Cable (Schuko) |
110 V Cable (US) |
110 V Cable (US) |
| Refrigerants | A2L |
A2L, A3 |
A2L |
A2L |
| Weight | 7.25 kg (16 lbs) |
11.4 kg (25 lbs) |
7.25 kg (16 lbs) |
11.4 kg (25 lbs) |
| Dimensions | 27 x 15 x 25 cm 10 5 /8" x 5 29/32" x 9 27/32" |
37.9 x 16.7 x 27.5 cm 14 59/64" x 6 37/64" x 10 53/64" |
27 x 15 x 25 cm 10 5 /8" x 5 29/32" x 9 27/32" |
37.9 x 16.7 x 27.5 cm 14 59/64" x 6 37/64" x 10 53/64" |
