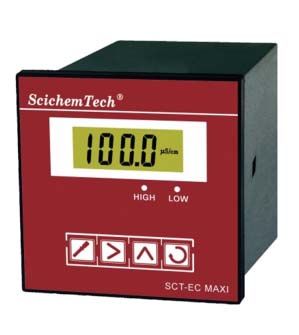

ScichemTech SCT-EC-MAXI - HR Conductivity Maxi Controller - SCT-108.005.15
Item #:
SCT-108-005-15
Brand:
ScichemTech
Share this product:
SCT-108.005.15 SCT-EC-MAXI - HR Conductivity Maxi Controller by ScichemTech
Includes:
- Conductivity sensor
- Fixation clamps
- Calibration Solution
- Instruction manual
Features:
- SCT-EC (Electrical Conductivity) MAXI-HR (High Range) CONTROLLERS are designed with creativeness to get the elegance and produced with proper quality, and meets the specifications for the Water related applications with high level performance.
- SCT-EC (Electrical Conductivity) MAXI-HR (High Range) CONTROLLERS are supplied with the suitable electrode with SCT standard 10 meters cable.(new series). 3 ranges of EC can be adjusted in a single controller and the ranges can be switched easily.
- SCT-EC (Electrical Conductivity) MAXI-HR (High Range) CONTROLLERS are an industrial instrument used for online analysis and monitoring.
- SCT-EC (Electrical Conductivity) MAXI-HR (High Range) CONTROLLERS are made in a attractive pleasant colour with a Large and Clear blue white LCD Display
- SCT-EC (Electrical Conductivity) MAXI-HR (High Range) CONTROLLERS are Microprocessor based controllers, which gives stable and accurate readings.
- SCT-EC (Electrical Conductivity) MAXI-HR (High Range) CONTROLLERS uses Low power consumption and produces less internal heat.
- SCT-EC (Electrical Conductivity) MAXI-HR (High Range) CONTROLLERS has an isolated 4-20 mA current output.
- SCT-EC (Electrical Conductivity) MAXI-HR (High Range) CONTROLLERS proved to work continuously in any harsh environmental conditions for the inline measurement and control of accurate EC value and it give the direct measurement and readings.
| Measuring range | 0~19.99mS/cm |
| Display method | Liquid-crystal display with 3½ bit LCD segment code |
| Accuracy | 1.5% (FS) |
| Stability | ±2×10-3(FS)/24h |
| Work pressure | 0~0.5mpa |
| Media temperature | 0~50°C |
| Temperature compensation | With 25°C as the reference point, digital compensation |
| Output current | Isolation of 4~20ma active output |
| Control output | Double contacts output of high limit (normally open) & low limit (normally closed) |
| Contact capacity | 7A/250C ac (with resistance load) |
| Optional electrode | 1.0cm-1 metal electrode |
| Cable length | 5m in normal condition |
| Environment conditions | Temperature: 0~50°C; humidity: ≤85%rh |
| Power supply | AC 220v±10% 50hz |
| Overall dimension | 96×96×120 mm (height x width x depth) |
| Face opening | 92×92mm |
| Installation method | Panel-mounted |
