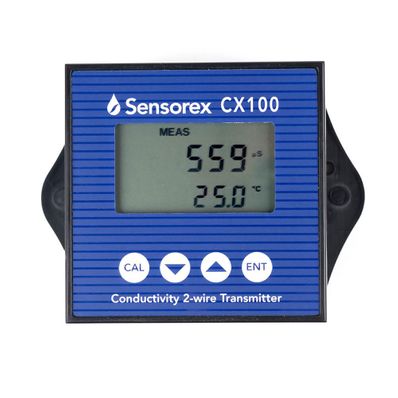

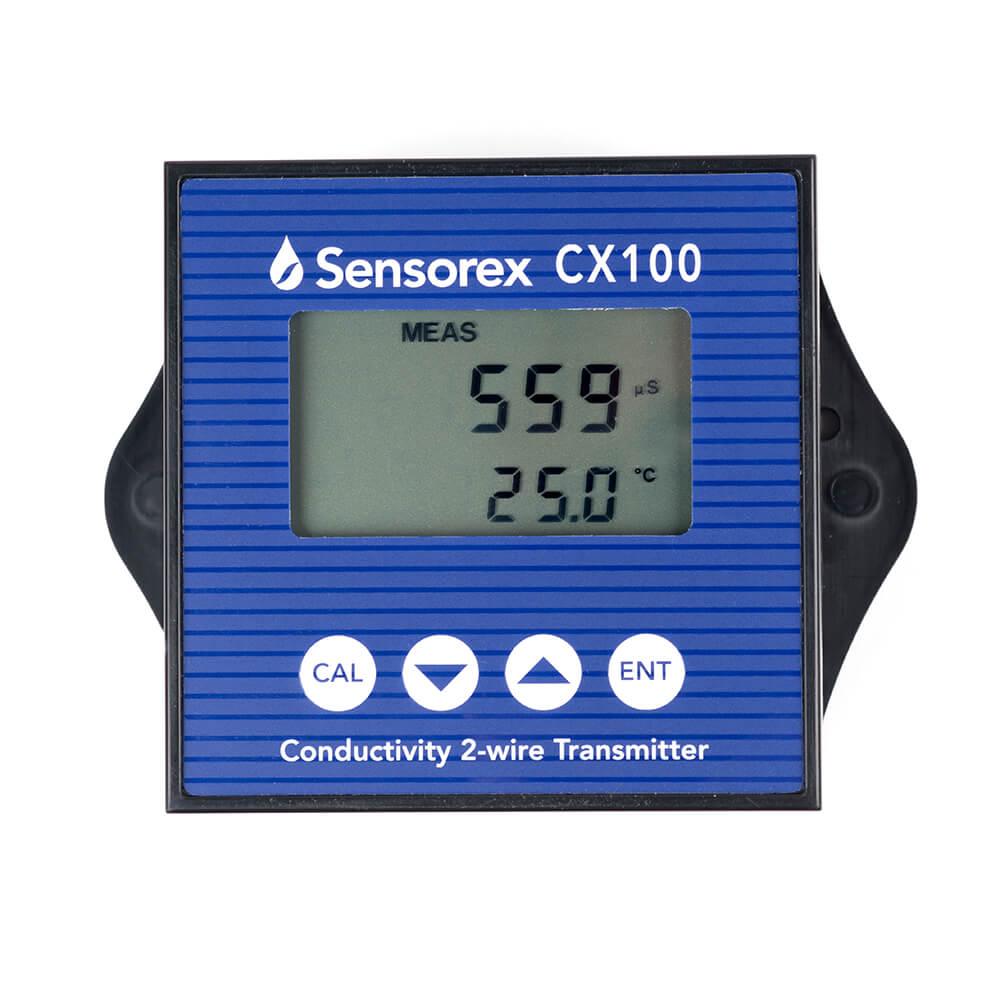

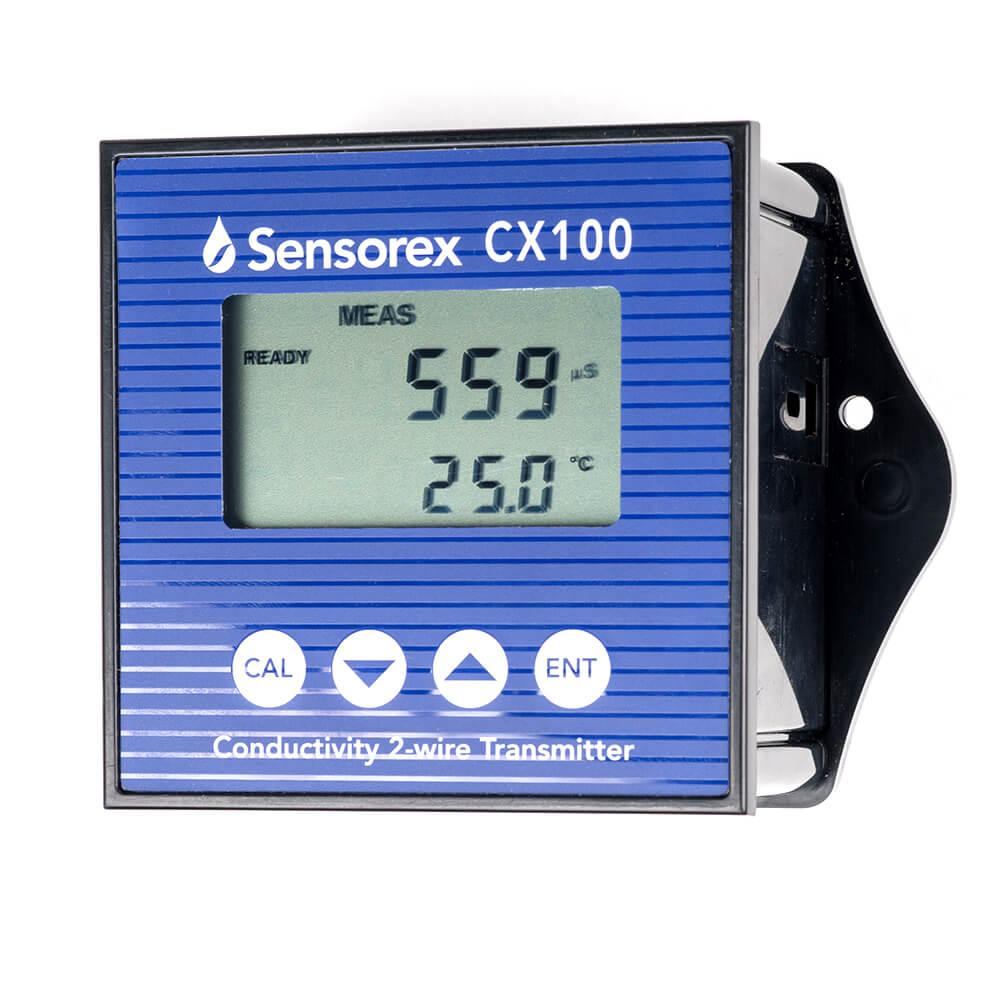

Sensorex CX100 Loop Powered 4-20mA Conductivity Transmitter, 4-20mA, VDC, w/ Display
Item #:
SEN-CX100
Brand:
Sensorex
Share this product:
CX100 Loop Powered 4-20mA Conductivity Transmitter, 4-20mA, VDC, w/ Display by Sensorex
The CX100 is a loop powered conductivity transmitter for use with contacting conductivity sensors. The 4-20mA output is ideal for connecting to a PLC for advanced control systems. Easily power the unit with available two-wire power supply loop. Versatile mounting options for wall or panel mount.
Features:
- Flexible configurations: Six selectable conductivity ranges
- Facilitates easy sensor maintenance: Output 'HOLD' for calibration & setup to avoid process disruption
- Accurate conductivity / TDS measurements: Integrated Automatic Temperature Compensation (ATC)
- Compatible with a wide variety of sensors: For use with all Sensorex contacting conductivity sensors
- One year limited warranty: We stand behind all our products with the Sensorex Guarantee
| Measurement Range: | (R1) 0-19.99 uS/cm, 0.01 uS/cm resolution; (R2) 0-199.9 uS/cm, 0.1 uS/cm resolution; (R3) 0-1999 uS/cm, 1 uS/cm resolution; (R4) 0-10.00 mS/cm, 0.01 mS/cm resolution; (R5) 0-19.99 mS/cm, 0.01 mS/cm resolution; (R6) 0-199.9 mS/cm, 0.1 mS/cm resolution |
| Cell Constants: | k=0.1 (R1-R5), k=1.0 (R1-R6), k=10 (R2-R6) |
| Measurement Accuracy: | +/- 1% full scale range |
| Temperature Range: | 0 °C to 100 °C , 0.1° C resolution, +/- 0.5 °C accuracy |
| Calibration Mode: | Automatic with built-in standard solutions manual cell constant adjustment |
| Output: | Isolated DC 4-20mA |
| Enclosure: | NEMA 4X IP65, with push-button control pad. HWD: 96 mm (3.77") x 96 mm (3.77") x 66mm (5.20"), 1/4 DIN |
| Mounting Options: | Panel or Wall mount |
| Ambient Operating Temperature: | 0° C to 50° C |
| Display: | Dual display custom LCD |
| Temperature Compensation: | Pt100 RTD with automatic compensation or manually configured |
| Power Requirement: | 12-24V DC, maximum 600Ω load |
| Certifications: | CE |
| Warranty: | One year limited warranty |
