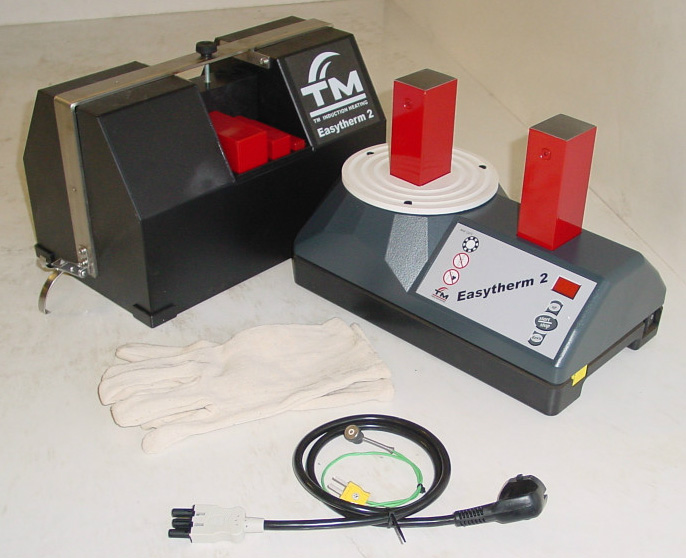

TM Induction Heating Easytherm 2 Microprocessor Controlled Induction Heater + Stationary 14/25/40 Tool Case Model (120V)

Item #:

TMI-Easytherm-2

Brand:

TM Induction Heating

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us

Share this product:

Description

Easytherm 2 Microprocessor Controlled Induction Heater + Stationary 14/25/40 Tool Case Model (120V) by TM Induction Heating

The Easytherm 2 is a TUV/UL approved, powerful 120 or 220 Volt microprocessor controlled induction heater used to professionally mount a range of parts including bearings. Typically used in maintenance shops and production environments.

Specifications

Description	Metric	US/UK
Power Rating	3.6kVA @ 220V
Voltage / Current	120V or 220V
Optional Voltage	-
Frequency	50-60Hz
Swing Arm	No
Plug
Max Weight
Bearing	40kg	88 lbs
Other	40kg	88 lbs
Min. Bore	15mm	0.59"
Max. Outside	290mm	11"
Max. Part Width	120mm	4.7"
Vertical Post Section
Width	120mm	4.72"
Height	100mm	3.93"
Power Regulation	Yes 0-100% Automatic
Temperature Control	Yes (0-240°C)	(0-464°F)
Time Control	No
De Magnetize	Yes <2 A/cm
Alarm	Yes
Temperature Hold	Yes
Thermal Safety Switch
Temp Probe	Yes – Mag. Probe
IR Remote Control
Digital Display – Time
Digital Display – Temp	Yes (C/F)
Digital Display – Error	Yes
Communications	N/A
Aux Input/Output
Yokes Included	10/14/25/40x200mm
Avaliable Yokes	10x200mm (min bore 15mm) 14x200mm (min bore 20mm) 25x200mm (min bore 35mm) 40x200mm (min bore 55mm)
