TM Induction Heating Easytherm 3.5 Microprocessor Controlled Induction Heater with 5 Yokes no IR Remote (230V)
Item #:
TMI-Easytherm-3-5-230VAC
Brand:
TM Induction Heating
Share this product:

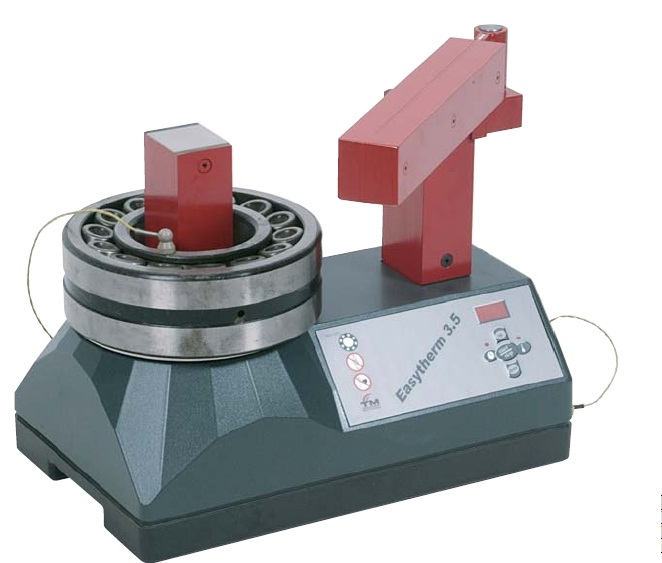

Easytherm 3.5 Microprocessor Controlled Induction Heater with 5 Yokes no IR Remote (230V) by TM Induction Heating
The Easytherm 3.5 is a TUV/UL approved, powerful 120 or 220 Volt microprocessor controlled induction heater with an ergonomic pivoting yoke used to professionally mount a range of parts including bearings. Typically used in maintenance shops and production environments.
| Description | Metric |
US/UK |
| Power Rating | 3.6kVA @ 220V |
|
| Voltage / Current | 120V or 220V |
|
| Optional Voltage | - |
|
| Frequency | 50-60Hz |
|
| Swing Arm | Yes |
|
| Plug | Yes |
|
| Max Weight | ||
| Bearing | 70kg |
154 lbs |
| Other | 70kg |
154 lbs |
| Min. Bore | 15mm |
0.59" |
| Max. Outside | 410mm |
16.1" |
| Max. Part Width | 180mm |
7.1" |
| Vertical Post Section | ||
| Width | 180mm |
7.1" |
| Height | 160mm |
6.3" |
| Power Regulation | Yes 0-100%
Automatic |
|
| Temperature Control | Yes (0-240°C) |
(0-464°F) |
| Time Control | Yes (0-99 min.) |
|
| De Magnetize | Yes <2 A/cm |
|
| Alarm | Yes |
|
| Temperature Hold | Yes |
|
| Thermal Safety Switch | Yes |
|
| Temp Probe | Yes – Mag. Probe |
|
| IR Remote Control | Available |
|
| Digital Display – Time |
Yes |
|
| Digital Display – Temp | Yes (C/F) |
|
| Digital Display – Error | Yes |
|
| Communications | N/A |
|
| Aux Input/Output | Available |
|
| Yokes Included | 10/14/25/40/50x280mm |
|
| Avaliable Yokes | 10x280mm (min bore 15mm) 14x280mm (min bore 20mm) 25x280mm (min bore 35mm) 40x280mm (min bore 55mm) 50x280mm (min bore 70mm) |
|
